2 Hardware

Last modified by Molly on 2024/10/16 10:01
 2D Model (.dxf)
ProductDownload
PI3102iDownload
PI3070i-ADownload
PI3070i-NDownload
PI3070iDownload
PI3035ieDownload
PI3043ie-NDownload
PI3043ieDownload
PI3043ieS-NDownload
PI3043ieSDownload
PI3070ieDownload
PI3102ieDownload
PI3043igDownload
PI3070igDownload
PI3102igDownload
PI8101ig(N)Download
PI8150igDownload
3D Model (.stp)
ProductDownload
  • PI3102
  • PI3102H
  • PI3102HE
  • PI8102
  • PI8102H



Download
  • PI3070
  • PI8070



Download
PI3043ieDownload
PI3035ieDownload
PI3043ie-TDownload
PI3070ieDownload
PI3102ieDownload
PI3043igDownload
PI3070iDownload
PI3070i-ADownload
PI3070i-SLDownload
PI3102i/PI3102ieDownload
PI8104Download
PI9150Download
PI3070igDownload
PI3102igDownload
PI3102iDownload
PI8070ig-NDownload
PI8101ig-NDownload
PI8150igDownload

Definition Table

PI3070ie/PI3102ie/PI3070i/PI3070i-SL/PI3102i/PI3102HE

PINDefinition
1RS422 TX+/RS485 A+
2RS232 RXD
3RS232 TXD
5GND
6RS422 TX-/RS485 B-
8RS422 RX-
9RS422 RX+

Pi3070iS/Pi3102iS/Pi3070ig/Pi3102ig

PINDefinition
1RS422 TX+/RS485 A1+
2RS232 RXD
3RS232 TXD
4RS485 B2-
5GND
6RS422 TX-/RS485 B1-
7RS485 A2+
8RS422 RX-
9RS422 RX+

PI9120/PI9150

PINCOM1COM2
1RS422 TX+/RS485 A+RS485 A+
2RS232 RXDRS232 RXD
3RS232 TXDRS232 TXD
5GNDGND
6RS422 TX-/RS485 B-RS485 B-
7 COM3 RS485 A+
8RS422 RX-COM3 RS485 B-
9RS422 RX+

PI3070/PI3102/PI3102H

PINCOM1COM2
1RS422 TX+ (RS485+)RS485+
2RS232 RXDRS232 RXD
3RS232 TXDRS232 TXD
5GNDGND
6RS422 TX- (RS485-)RS485-
8RS422 RX-
9RS422 RX+

PI8070/PI8070H/PI8102/PI8102H/PI8104

PINCOM1COM2
1RS422 TX+/RS485 A+RS485 A+
2RS232 RXDRS232 RXD
3RS232 TXDRS232 TXD
4CANL
5GNDGND
6RS422 TX-/RS485 B-RS485 B-
7CANHCOM3 RS485 A+
8RS422 RX-COM3 RS485 B-
9RS422 RX+

PI8070C

PINCOM1COM2
11.RS422 TX+/RS485 A+1.RS485 A+
22.RS232 RXD2.RS232 RXD
33.RS232 TXD3.RS232 TXD
44.CANL4.CANL
55.GND5.GND
66.RS422 TX-/RS485 B-6.RS485 B-
77.CANH7.CANH
88.RS422 RX-
99.RS422 RX+

Product List

SeriesSub SeriesModel
General SeriesPI3000*PI3070HE, PI3070N, PI3070N-2S, PI3070N-O, PI3070N-P, PI3102H, PI3102HE, PI3102N, PI3102H-O, PI3102H-P, PI3102H-2S, PI3102H-2S-O, PI3102H-2S-P
PI3000+*PI3070HE+, PI3070N+, PI3070N-2S+, PI3102H+, PI3102HE+, PI3102N+, PI3102H-2S+
PI8000*PI8070, PI8070A, PI8070C, PI8070H, PI8070-Q, PI8070-R, PI8102, PI8102A, PI8102C, PI8102H, PI8102-Q, PI8102-R, PI8104, PI8104-Q, PI8104-R
PI8000+*PI8070+, PI8070A+, PI8070C+, PI8070H+, PI8070-Q+, PI8070-R+, PI8102+, PI8102A+, PI8102C+, PI8102H+, PI8102-Q+, PI8102-R+
PI9000*PI9120, PI9120-P, PI9120-Q, PI9120-R, PI9150, PI9150-P, PI9150-Q, PI9150-R
PI9000+*PI9120+, PI9120-P+, PI9120-Q+, PI9120-R+, PI9150+, PI9150-P+, PI9150-Q+, PI9150-R+
i SeriesPI3000i*PI3070i, PI3070i-2S, PI3070i-A, PI3070i-C, PI3070i-H, PI3070i-N, PI3070i-N-SL, PI3070i-S, PI3070i-SL, PI3070iS, PI3070iS-N, PI3102i, PI3102i-2S, PI3102i-A, PI3102i-C, PI3102i-S, PI3102iS
ie SeriesPI3000iePI3035ie, PI3043ie, PI3043ie-T, PI3043ieS, PI3043ieS-N, PI3070ie, PI3070ie-H, PI3102ie
ig SeriesPI3000igPI3070ig, PI3070ig(G), PI3070ig(AG), PI3070ig(W), PI3070ig-C, PI3070ig-C(G), PI3070ig-C(AG), PI3070ig-C(W), PI3070ig-O, PI3102ig, PI3102ig(G), PI3102ig(AG), PI3102ig(W), PI3102ig-C, PI3102ig-C(G), PI3102ig-C(AG), PI3102ig-C(W), PI3102ig-O
PI8000ig#PI8070ig, PI8102ig, PI8150ig, PI8150ig(G), PI8150ig(WG), PI8150ig-C, PI8150ig-C(G), PI8150ig-C(WG)
Information

✎Note:

  • If series name is suffix with * indicates total or partial stop production, please ask the salesman for details.
  • If series name is suffix with # indicates partial not been introduced into market, please ask the salesman for details.
  • This table is only for product series classification purposes, not as a guide for products on sale.

Naming rules


① Series name② Classification③ Size④ Product series⑤ Special version (Hardware)⑥ Special version (Software)
PI: PI series3: 3000035: 3.5 inchGeneral series (Discontinued)C: Cloud (Only available for ig series)A: 1 CAN port
 8: 8000

043: 4.3 inch

i: i seriesO: LANC: 2 CAN ports (Only available for i series)
 9: 9000070: 7.0 inchie: ie seriesR: Remote (Discontinued)H: High resolution
  102: 10.2inchig: ig series N: Ethernet port
  104: 10.4 inch  (N): 2 Ethernet ports
  150: 15.0 inch  S/2S: 2 485 ports
     T: D8 9-serial port
     SL: Back mounted
     (G): In-built 4G
     (W): In-built WIFI



    (WG): In-built WiFI and 4G


(AG): Support wider range of 4G band

     (NWG): 2 Ethernet ports and in-built WiFi+4G
     QT: Linux system

Hardware Maintenance Parts

SeriesSizePart NamePicture
ie Series3.5"Motherboard


LCD


Touch board


4.3"Motherboard


LCD


Touch board

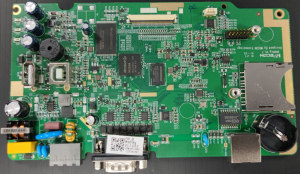

ig Series7"Motherboard


LCD


Touch board


Back shell


Front frame with touch board


10.2"Motherboard


LCD


Touch board


Back shell


Front frame with touch board and front film


15"Motherboard


LCD


Touch board


Back shell


Front frame with touch board


Others Buckle bag


 Angle fixing piece


 AG module


 Wi-fi module
