Entertainment Equipment

Last modified by Wecon on 2025/09/03 21:04

1.Industrial Background

As the living standards of residents improve, the number of resident activity centers or parks increases, providing places for our entertainment life. A wide variety of amusement equipment has become the most common happiness-making machine around us. The addition of VFD will undoubtedly make the experience of various amusement equipment even better.

2. Control Requirements

The inverter is required to start smoothly and have strong starting torque. At the same time, it can achieve multi-speed and dual-axis rotation synchronization. During operation, the speed conversion is smooth, and the linkage self-frequency adjustment does not require manual control.

3.Wiring Diagram

Entertainment Equipment1.png

4.Parameter Settings

      1#VFD

ParameterDescriptionSet ValueRemarks
F0.01Start & Stop Command Source1DI Terminal
F0.03Main Frequency Source6



Multi-stage Speed

F0.18Acceleration Time1515s
F0.19Deceleration Time2020s
F5.02DI3 Option12Multi-stage Speed 1
F5.03DI4 Option13Multi-stage Speed 2
FD.01Multi-stage Speed 03535%
FD.02Multi-stage Speed 15050%
FD.03Multi-stage Speed 2100100%
F6.12AI1 Option0Output Frequency

2#VFD

ParameterDescriptionSet ValueRemarks
F0.01Start & Stop Command Source1DI Terminal
F0.03Main Frequency Source2



AI1

F0.18Acceleration Time1515s
F0.19Deceleration Time2020s

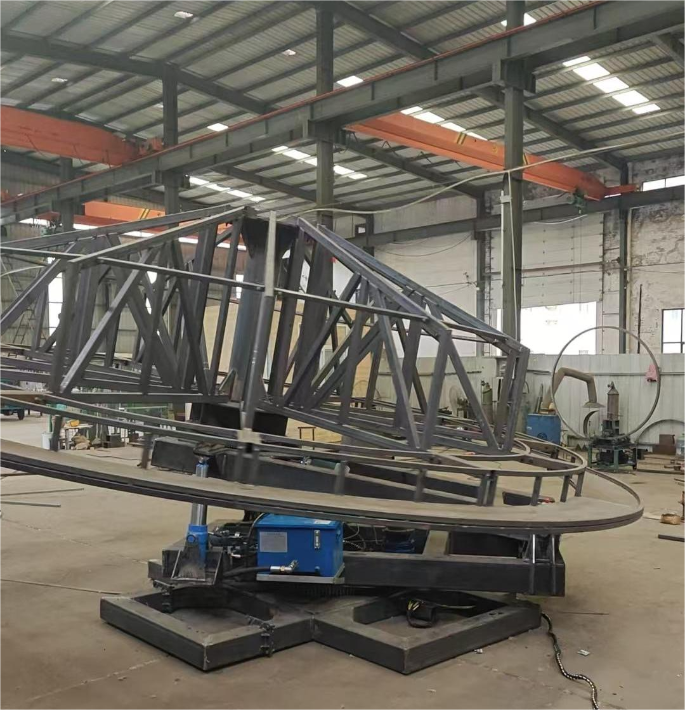

5.Photos at Site

Entertainment Equipment2.png

Entertainment Equipment3.png

6.Solution Features

  • VFD can realize fast start and stop, smooth speed regulation, and can quickly, accurately and stably transport materials, meeting the requirements of multi-section synchronous transmission and fast sorting, thus improving the sorting efficiency.
  • Small in size, flexible in installation and space-saving.
  • VFD has a complete protection range, which can protect the entire system from nearly 20 faults such as overvoltage, overcurrent, overheating and short circuit to ground, and has higher reliability.
