11 GPS

Last modified by Devin Chen on 2025/11/27 21:25

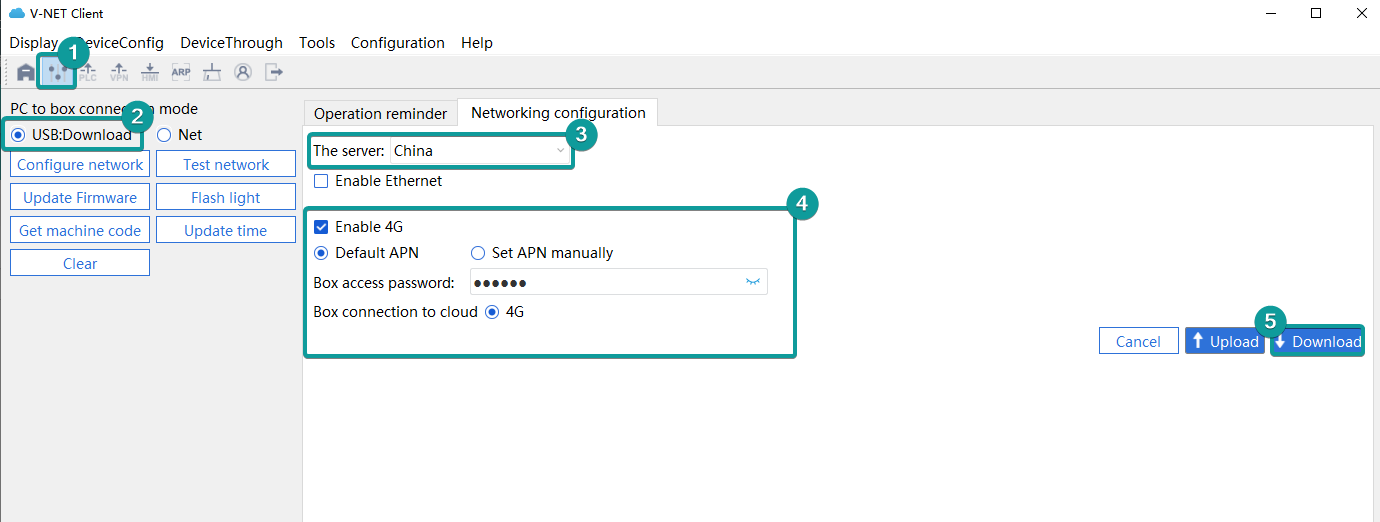

1.Network Configuration

GPS function only supported by H-SG


4G antenna(right) with GPS antenna(left)

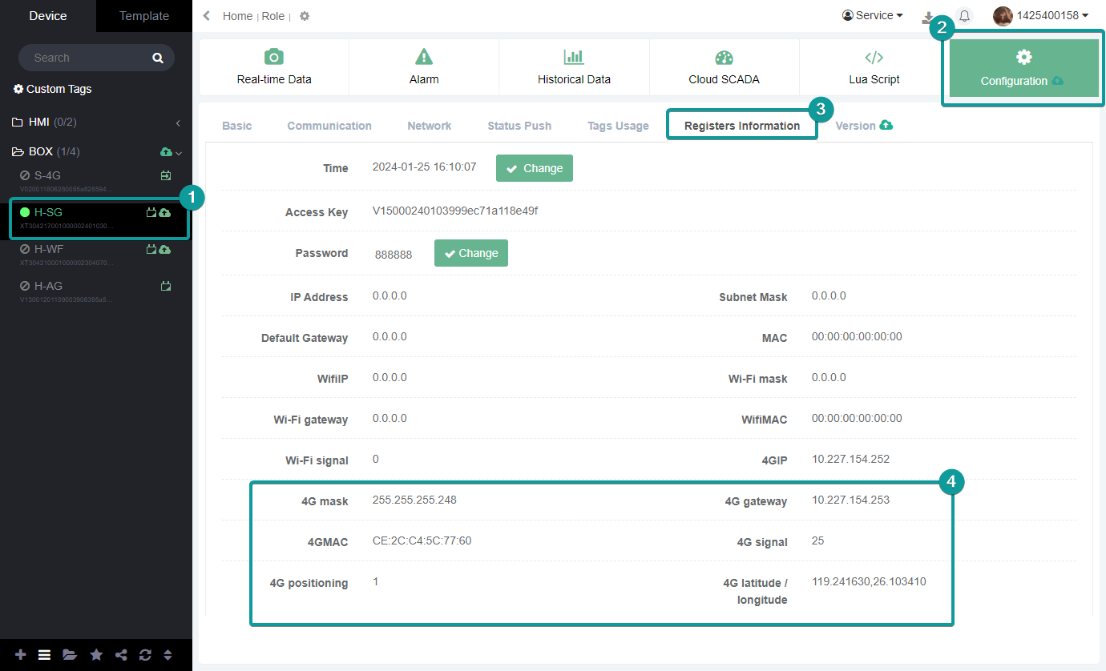

Make sure the box is online using a 4G signal


2.GPS positioning

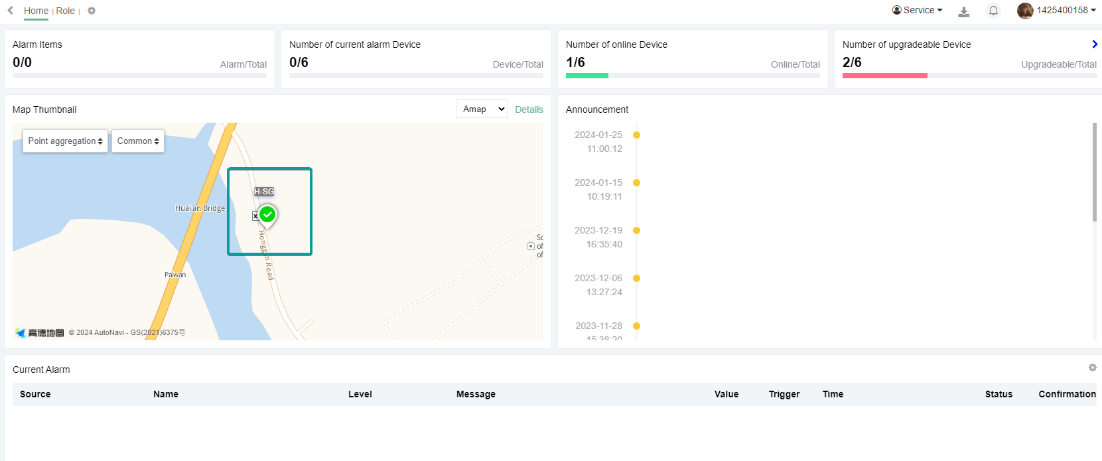

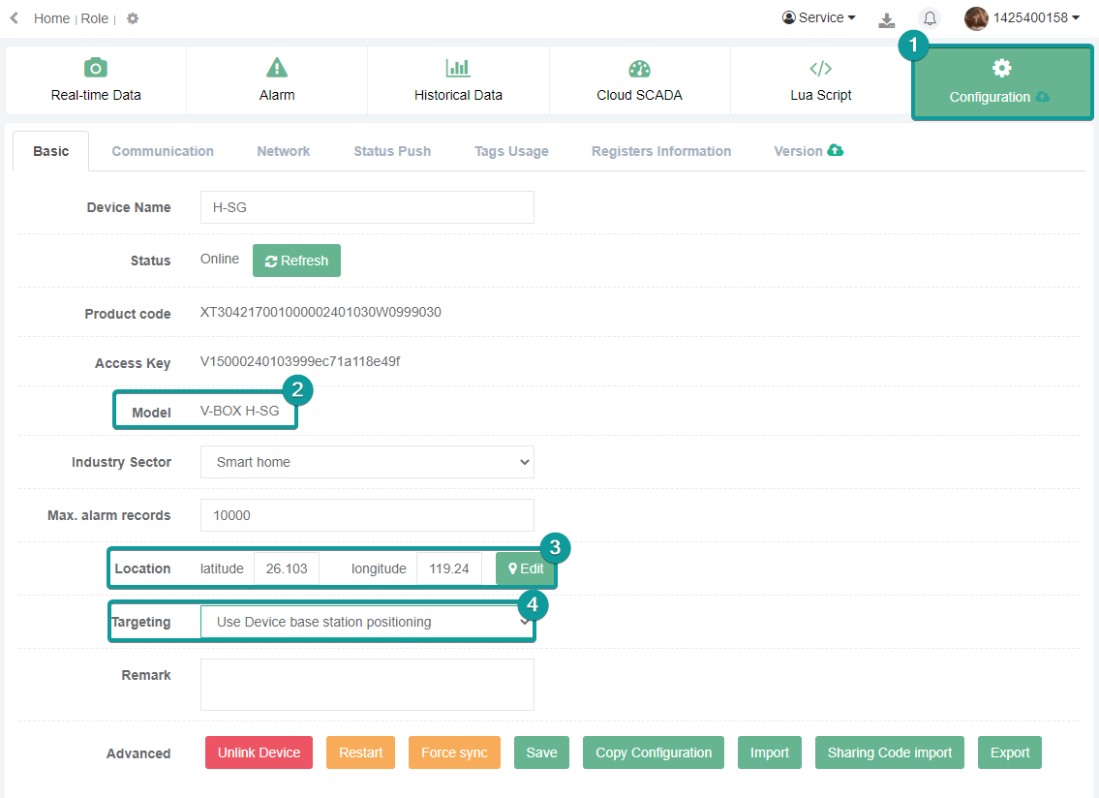

When the 4G signal is normal, select Use device base station positionning.

BOX GPS定位.png

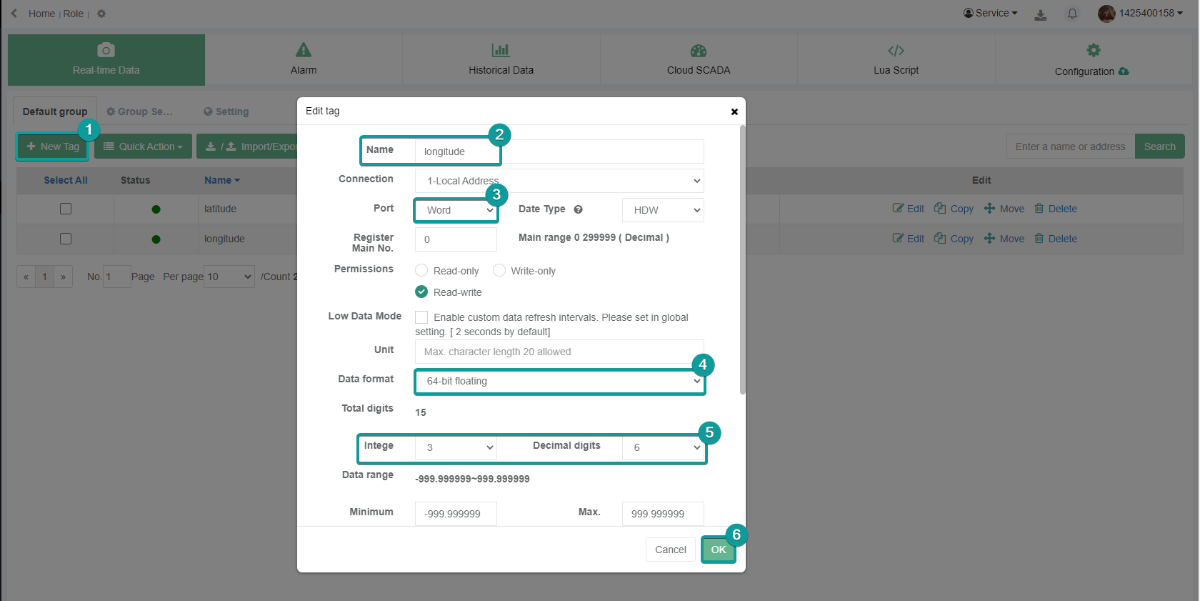

3.Create an address

Use a lua script to copy the latitude and longitude to the HDW address.

  • Address format is chosen as 64 bit float.

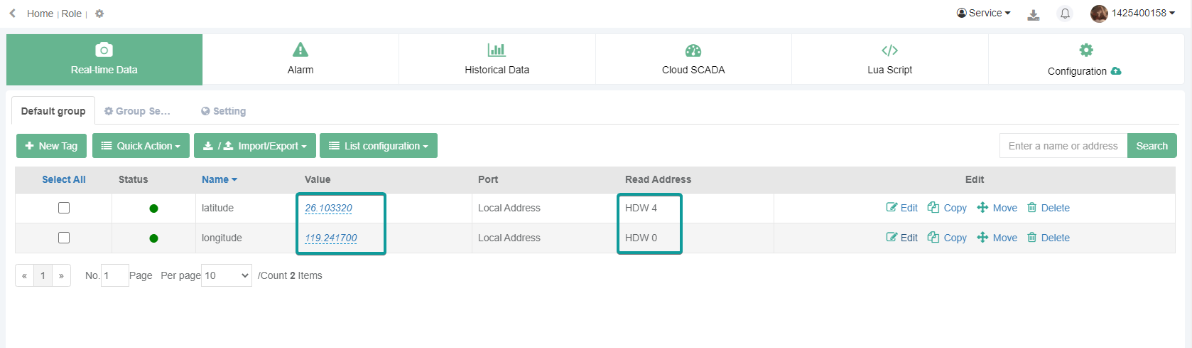

  • 4 bits between addresses

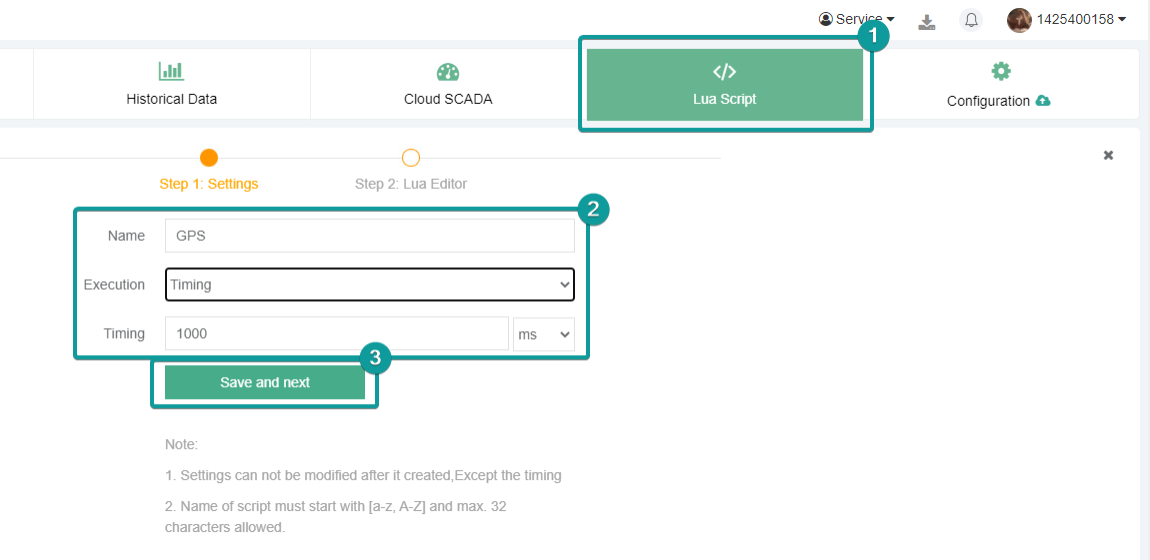

4.Lua script

  • Longitude: addr_getdouble("@W_HSW187") (read only)
  • Latitude: addr_getdouble("@W_HSW183") (read only)

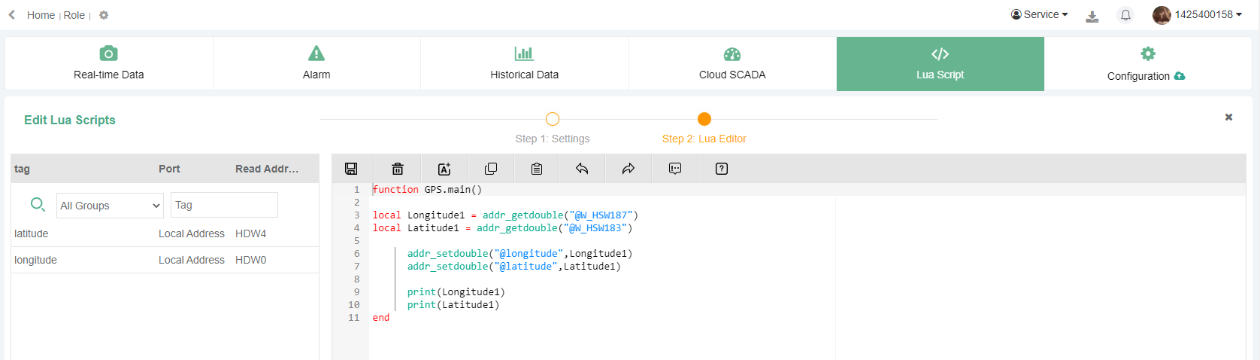

function GPS.main()

local Longitude1 = addr_getdouble("@W_HSW187")
local Latitude1 = addr_getdouble("@W_HSW183")

      addr_setdouble("@longitude",Longitude1)
      addr_setdouble("@latitude",Latitude1)

     print(Longitude1)
     print(Latitude1)
end

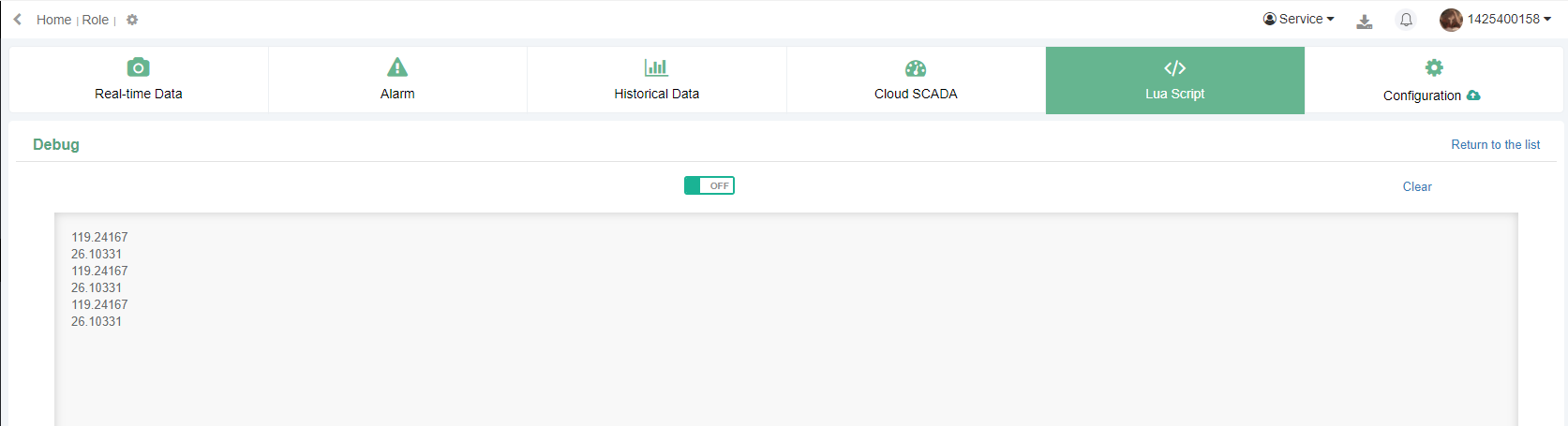

Debug
