KV-5000 Ethernet

Supported Series: KEYENCE KV-5000, KV-5500 models

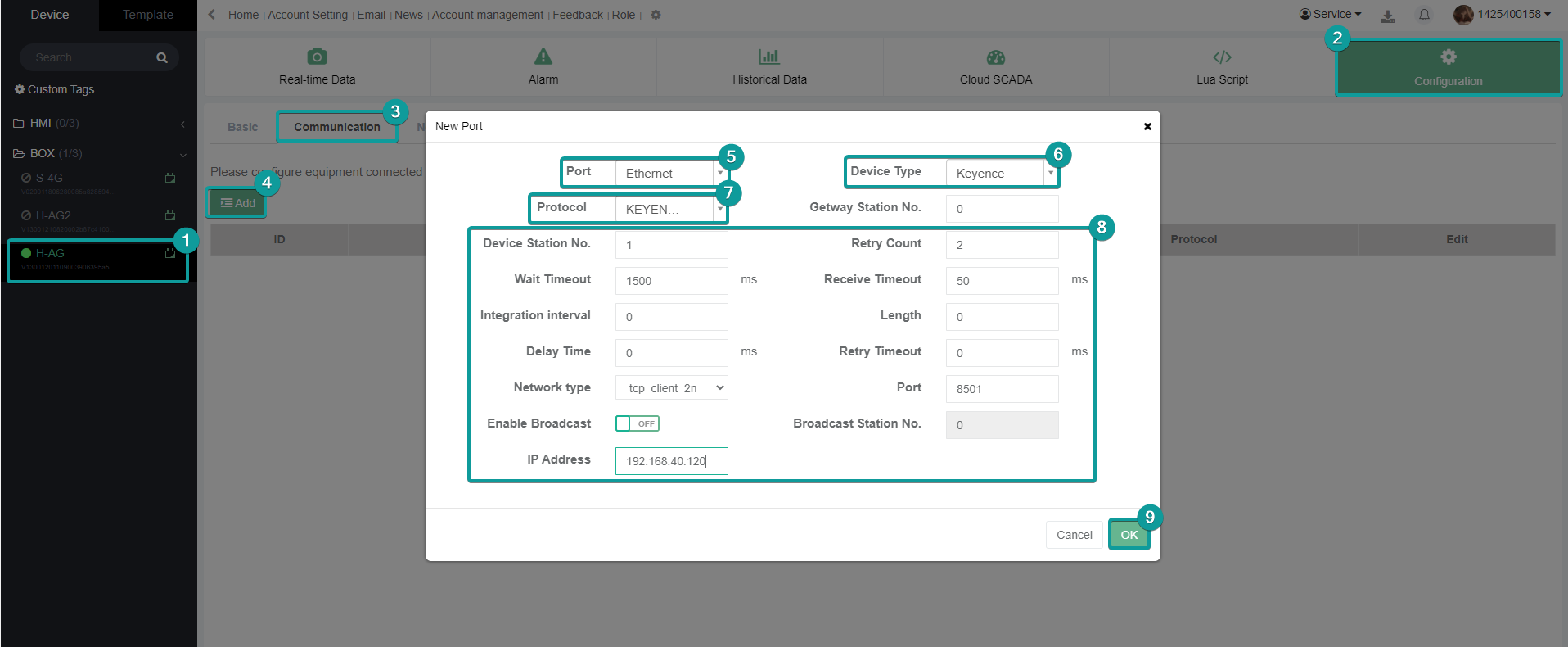

V-Box Settings

Item	Settings	Note
Protocol	KEYENCE KV-5000(Ethernet)

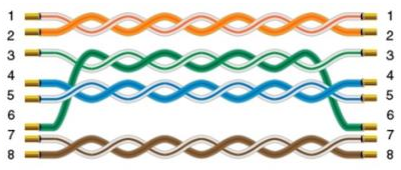

Connection	Ethernet

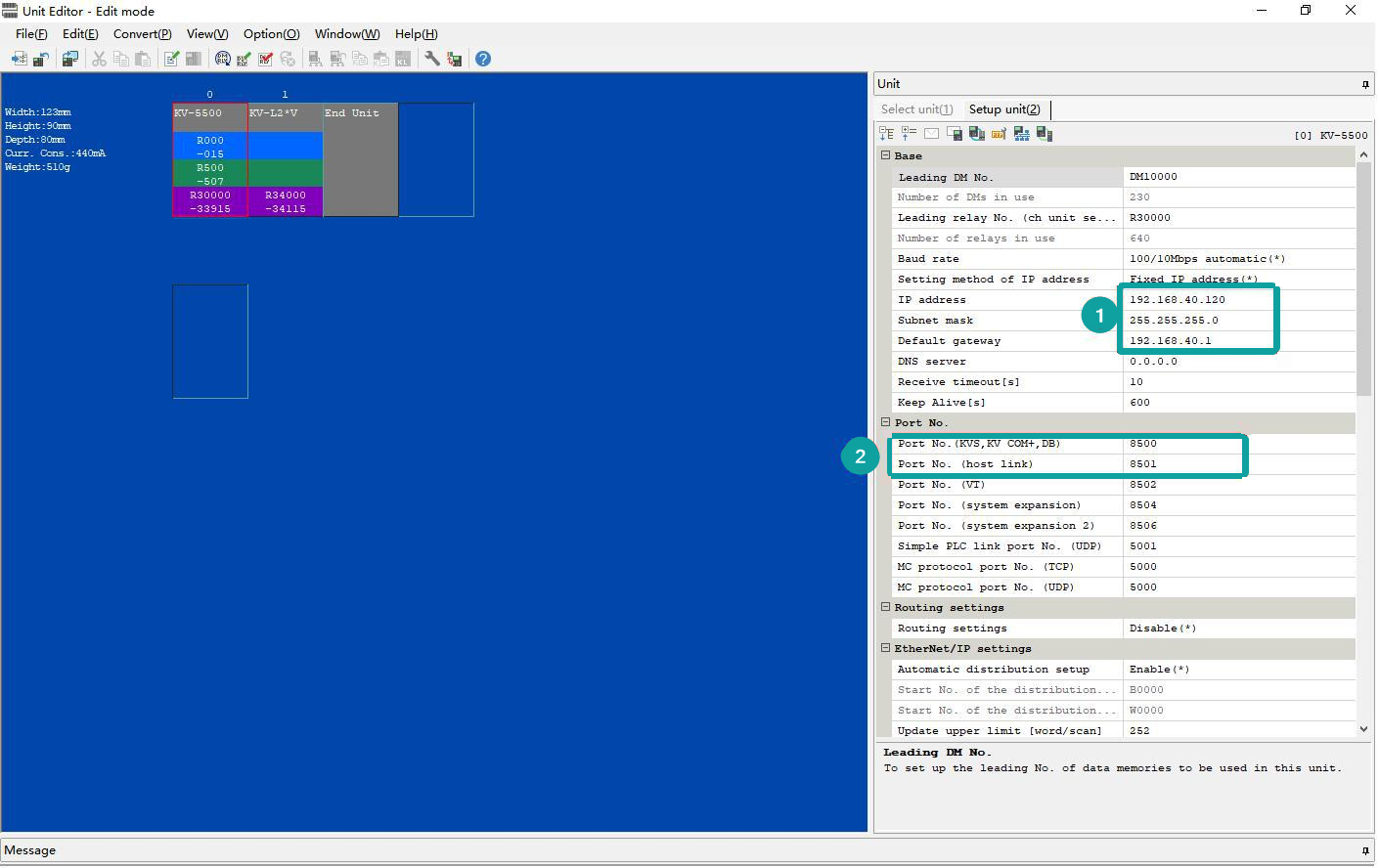

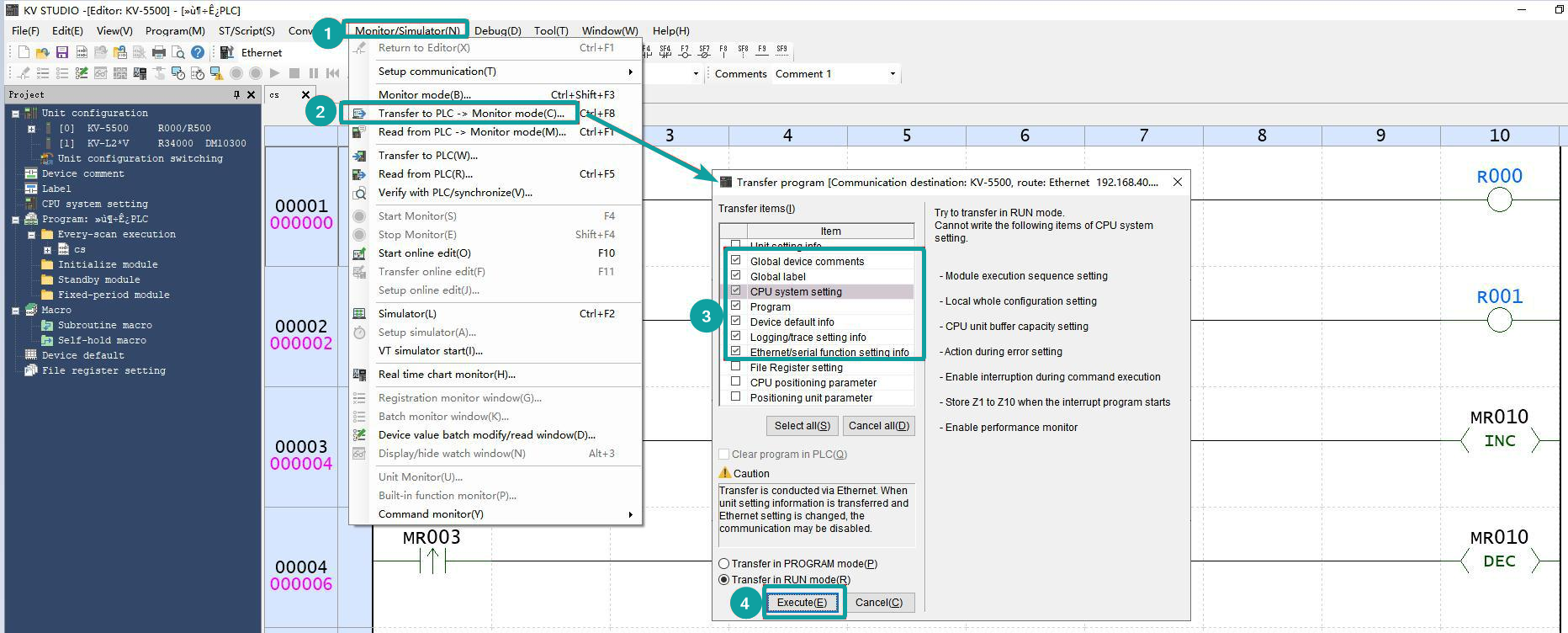

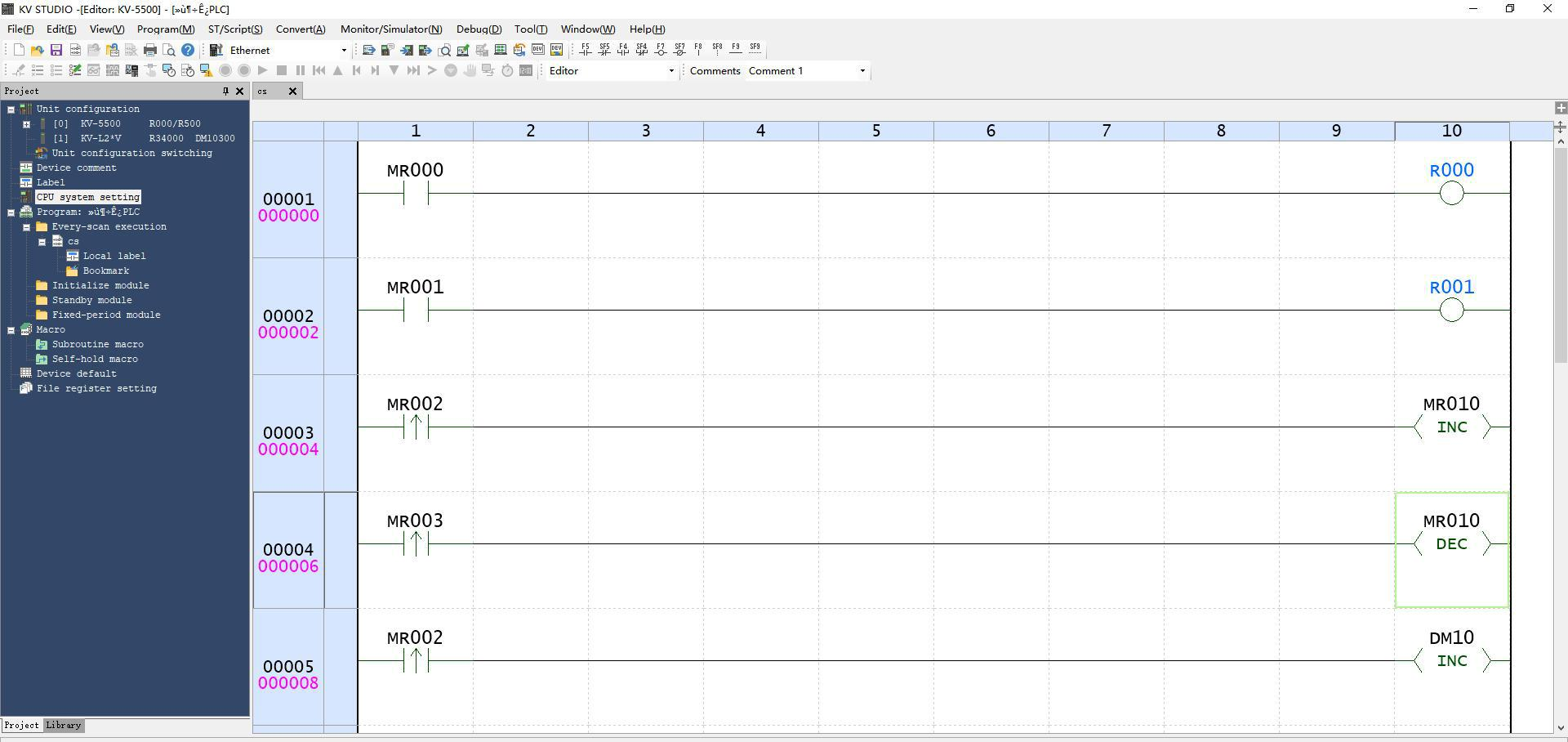

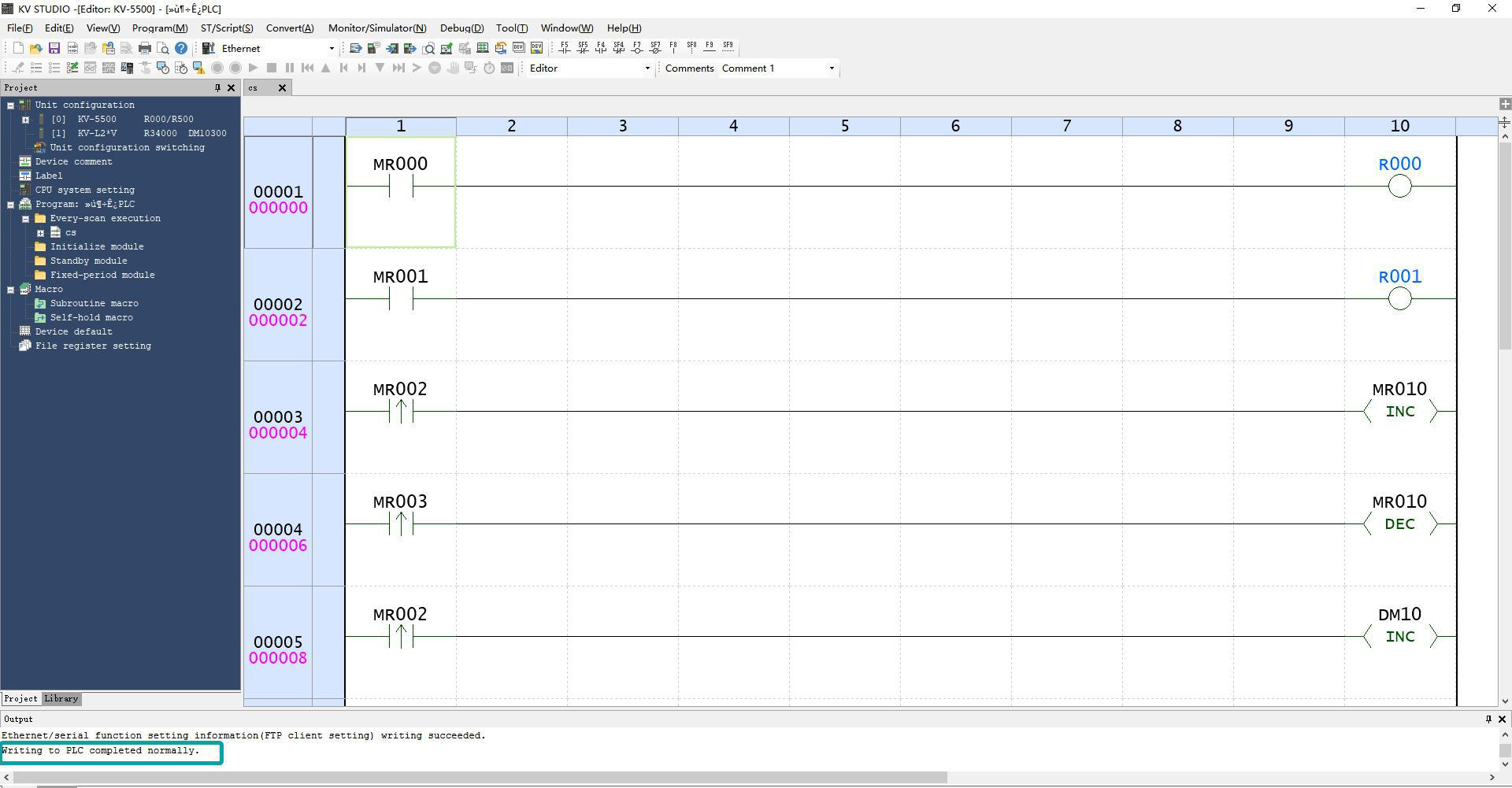

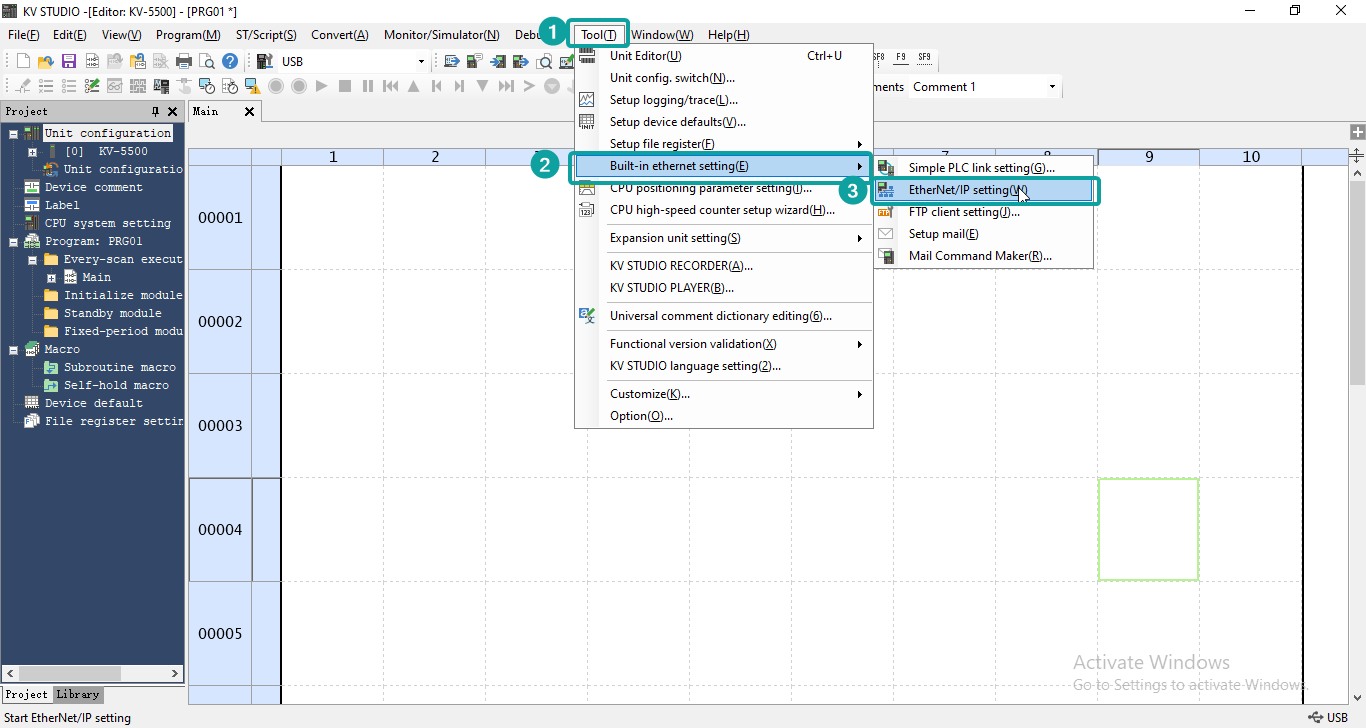

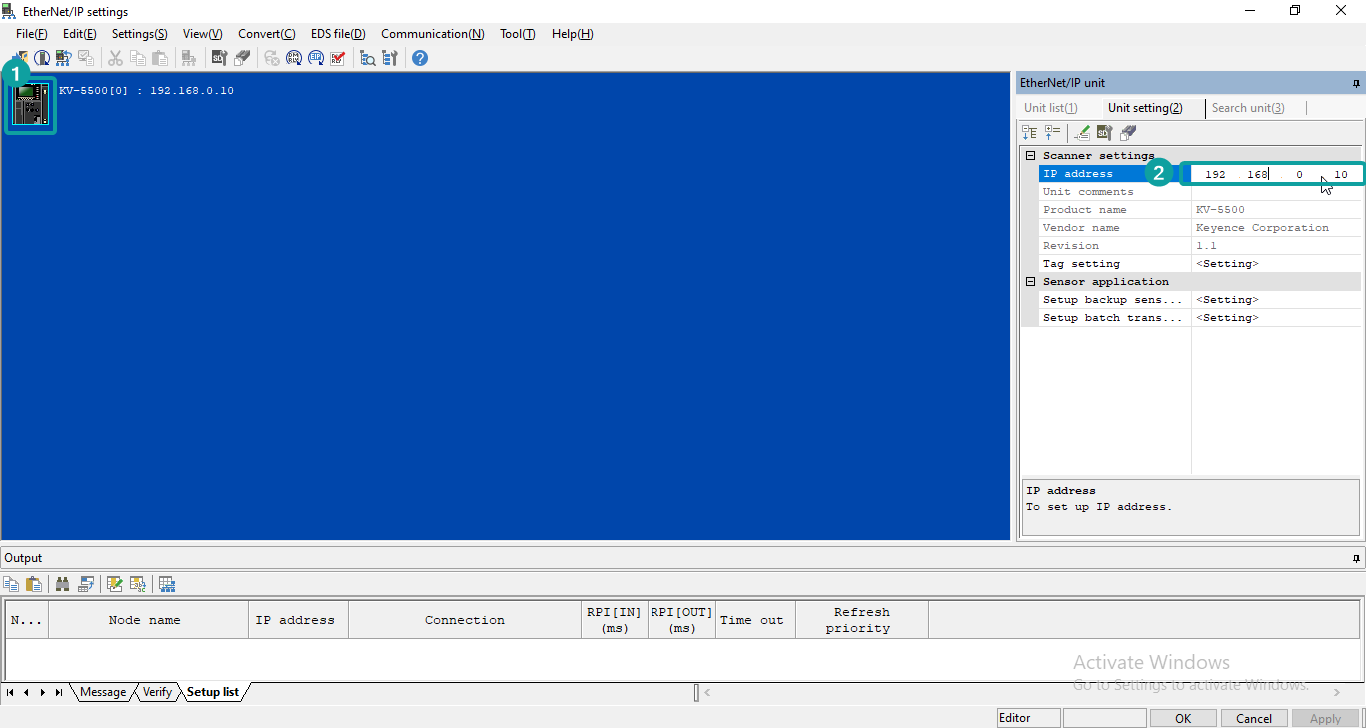

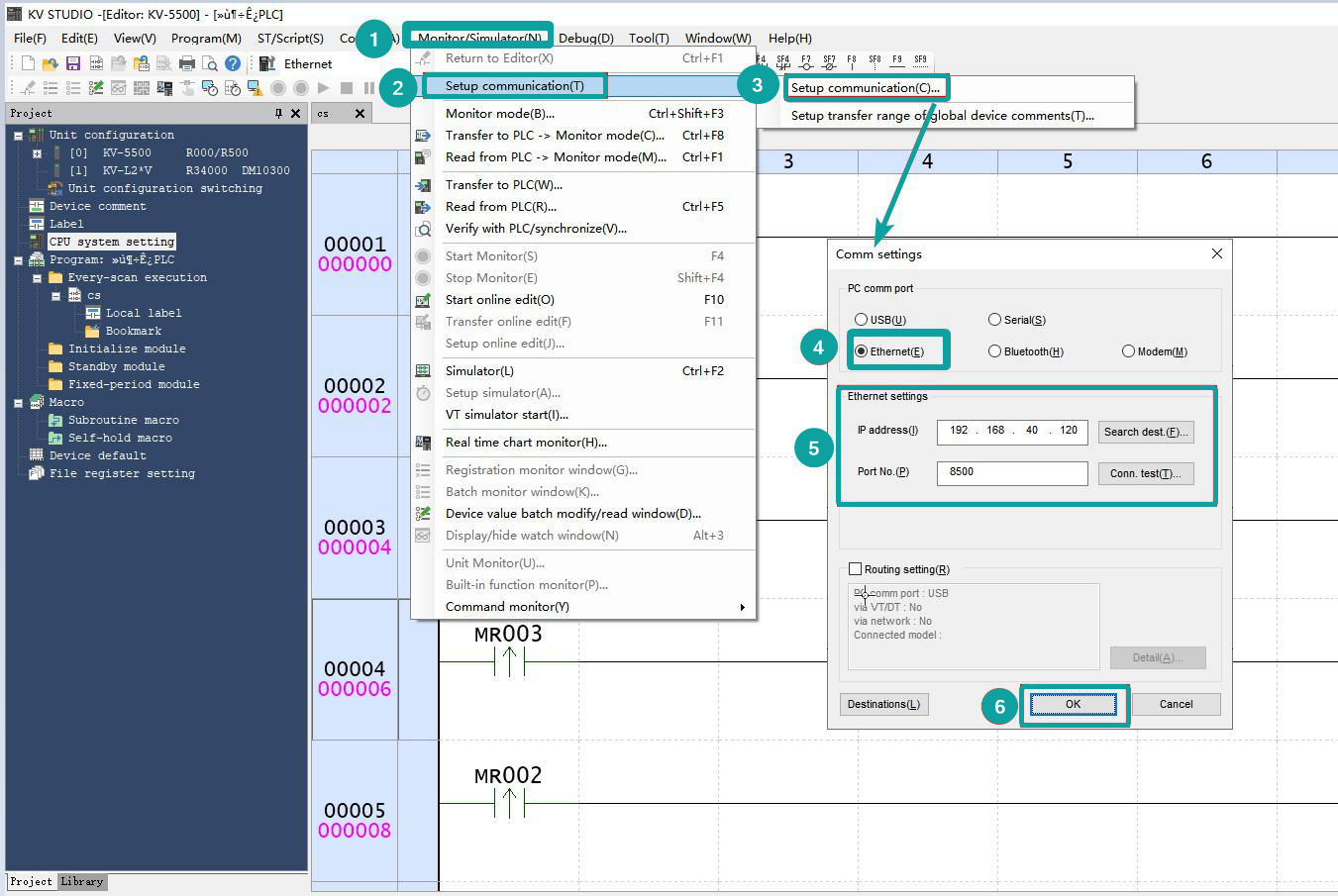

Port No.	8501	Need to be the same as PLC settings
PLC station No.	0


Address List

Type	Device registers	Format	Range	Note
Bit	R	RDDDDD.dd	0~59915.15	Relay
	CR	CRDDDDD.dd	0~3915.15	Control Relay
	MR	MRDDDDD.dd	0~99915.15	Internal Auxiliary Relay
	LR	LRDDDDD.dd	0~99915.15	Latch Relay
Word	DM	DMDDDDD	0~65534	Data Memory
	CM	CMDDDDD	0~11998	Control Memory
	TM	TMDDD	0~511	Temporary Data Memory
	EM	EMDDDDD	0~65534	Extension Data Memory
	FM	FMDDDDD	0~32766	Extension Data Memory
	Z	ZDD	1~12	Index Register
	VB	VBHHH	0~F9F	Work Relay
	ZF	ZFDDDDD	0~524287	File Register Serial Number System
	VM	VMDDDDD	0~65535	Work Memory
	W	WHHHH	0~7FFF	Link Register
	B	BHHH	0~7FF	Link Relay
	R	RDDD	0~999	Input Relay/Output Relay/Internal Auxiliary Relay
	CR	CRDDD	0~999	Control Relay
	LR	LRDDD	0~999	Latch Relay
	MR	MRDDDD	0~3999	Internal Auxiliary Relay
Double Word	T	TDDDD	0~9999	Timer
	C	CDDDD	0~9999	Counter
	CTH	CTHD	0~3	High-speed Counter Comparator(Current Value)
	CTC	CTCD	0~7	High-speed Counter Comparator(Setting Value)
	TRM	TRMD	0~7	Digital Trimmer
	C_Preset	C_PresetDDDD	0~9999	Counter(Setting Value)
	C_Curr	C_CurrDDDD	0~9999	Counter(Current Value)
	T_Preset	T_PresetDDDD	0~9999	Timer(Setting Value)
	T_Curr	T_CurrDDDD	0~9999	Timer(Current Value)
