2.2 Monitoring Center

The [Data Monitoring] module displays the operation status and status information, alarm information and current alarm information of all devices in the platform through charts and graphics.

2.2.2  Map monitoring (Google Map)

The map can only be used after the super administrator configures the Amap information in the "Business Management Platform". If valid information is not configured, the map service cannot be used.

Support searching devices on the map by device name, machine code, product code and device status. If the device exists, the device location will be displayed, and point aggregation/point dispersion and map switching functions will be realized.

Support group selection and alarm device screening query.

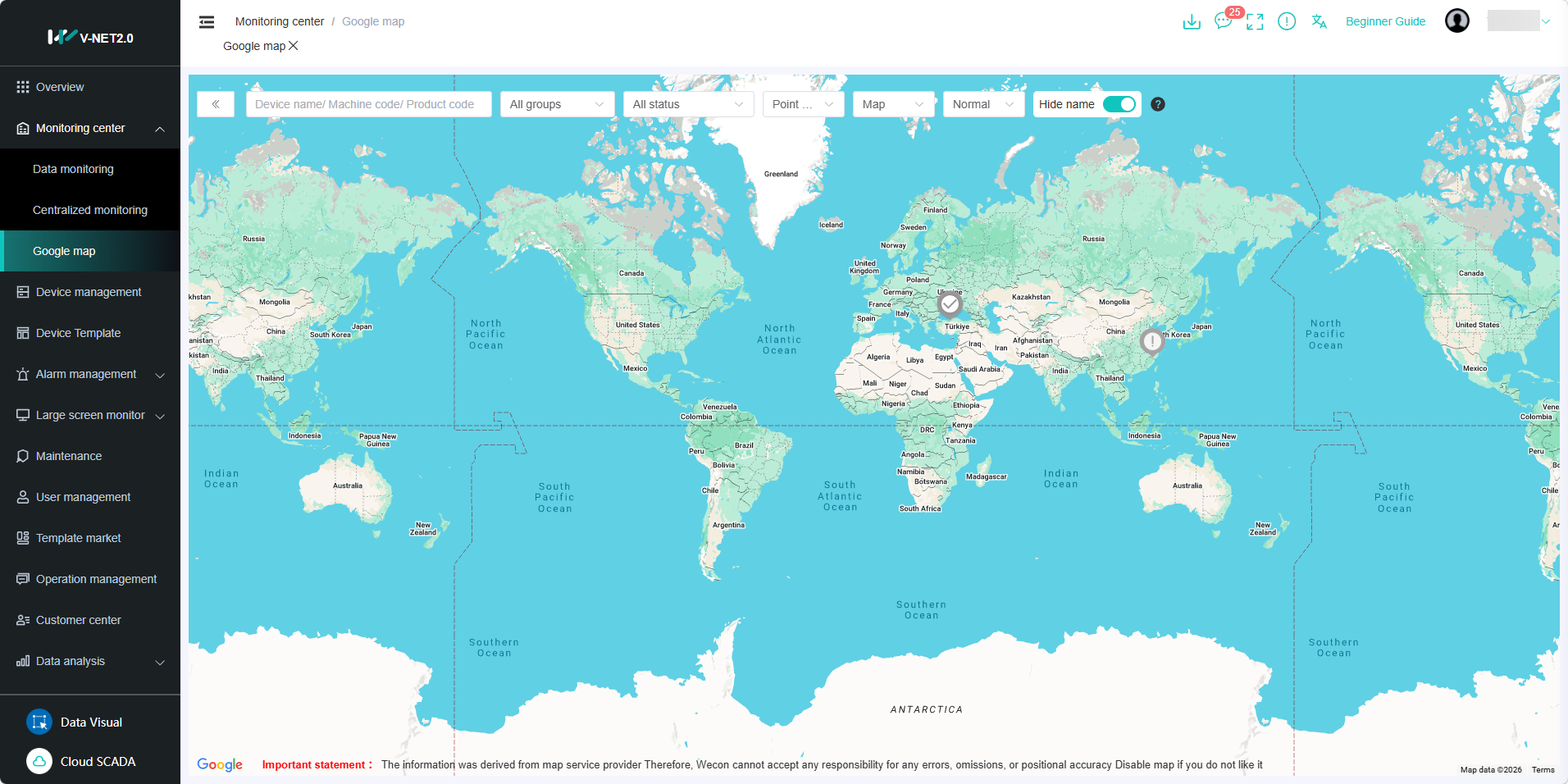

In the map interface, devices labeled in purple text is V-box, while those displayed in brown text is HMI ,as shown in the figure below.

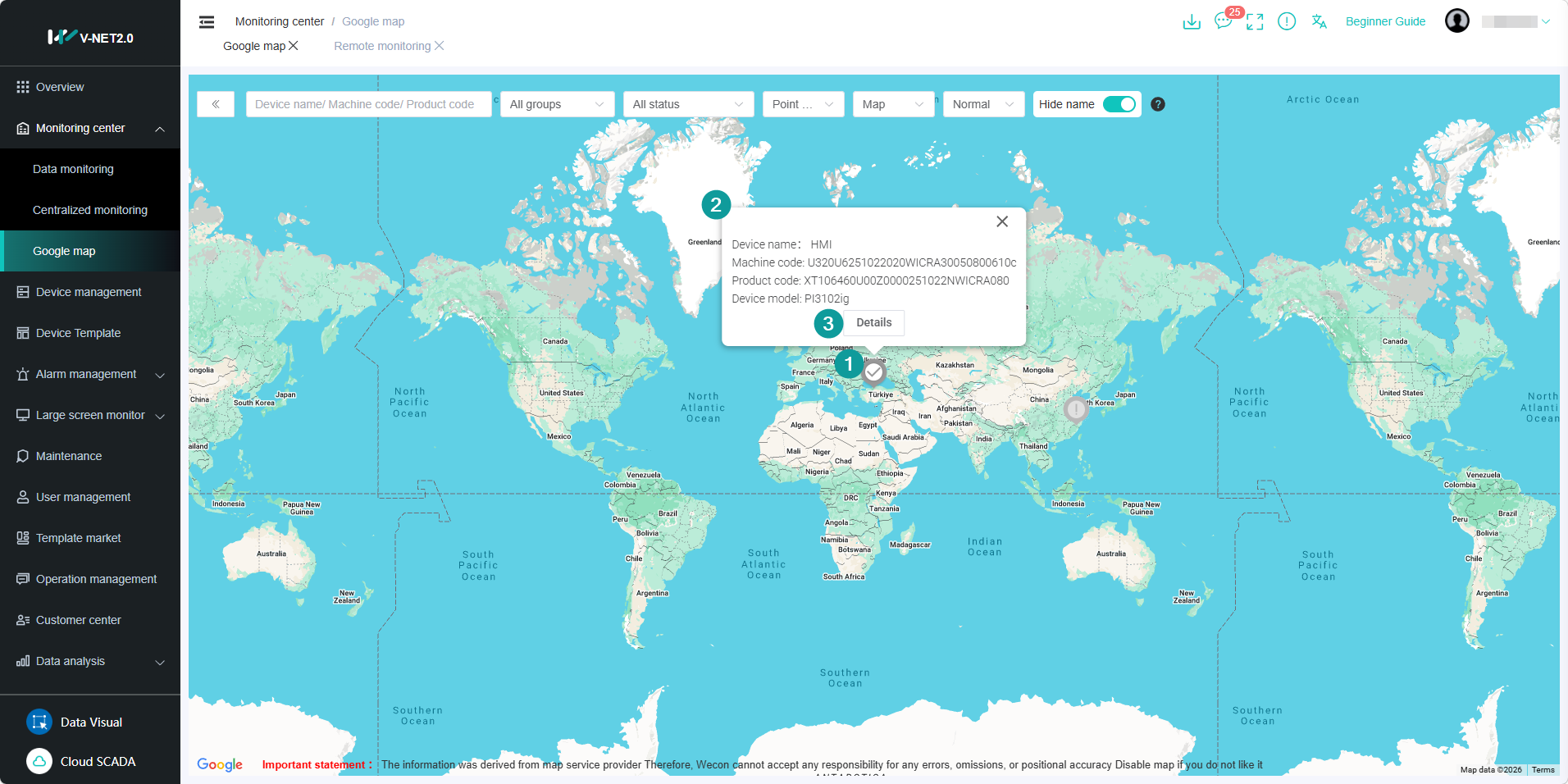

Click on a device on the map and a device information window will pop up. Click [View Details] in the window to jump to the [Device Management Module] to view device data details.

The name is displayed by default. Click Hide Name to hide the name, as shown in the figure below.

2.2.2.1 Map custom icons

Map configuration: The map shows the geographical distribution of devices and displays different icons according to the different status of the devices.

Icon	Name	Description
	Online	V-Box/IoT HMI online
	Offline	V-Box/IoT HMI offline
	Pass through	V-Box/IoT HMI is throughing
	VPN through	V-Box/IoT HMI is VPN throughing
	Ready for normal download	V-Box/IoT HMI is ready for normal download
	Normal download	V-Box/IoT HMI is normal downloading
	Offline alarm	V-Box/IoT HMI is offline alarming
	Online alarm	V-Box/IoT HMI has at least one current alarm, and the is online alarming

2.2.2.2 Point aggregation/Point dispersion

You can aggregate/disperse devices in the map. The default is aggregation. The specific meanings are as follows.

①Point Aggregation: When the map is zoomed to a certain range, the devices in the area will gather to form an aggregation point, and the number of devices will be displayed. The point aggregation icon is a circle.

Icon	Description
	There are 3 devices in the area, and some of them are alarming.
	There are 5 devices in this area, and there is no alarm information on the devices

②Point Dispersion: Regardless of how the map is zoomed, the devices on the map will not be aggregated.

2.2.2.3 Map style switch

There are ten map styles to switch between, including standard, macaron, graffiti, distant mountain blue, phantom black, grass green, midnight blue, indigo blue, moonlight silver, and elegant gray.

There are two modes to switch between satellite image and map. (In satellite image mode, style switching is not supported)

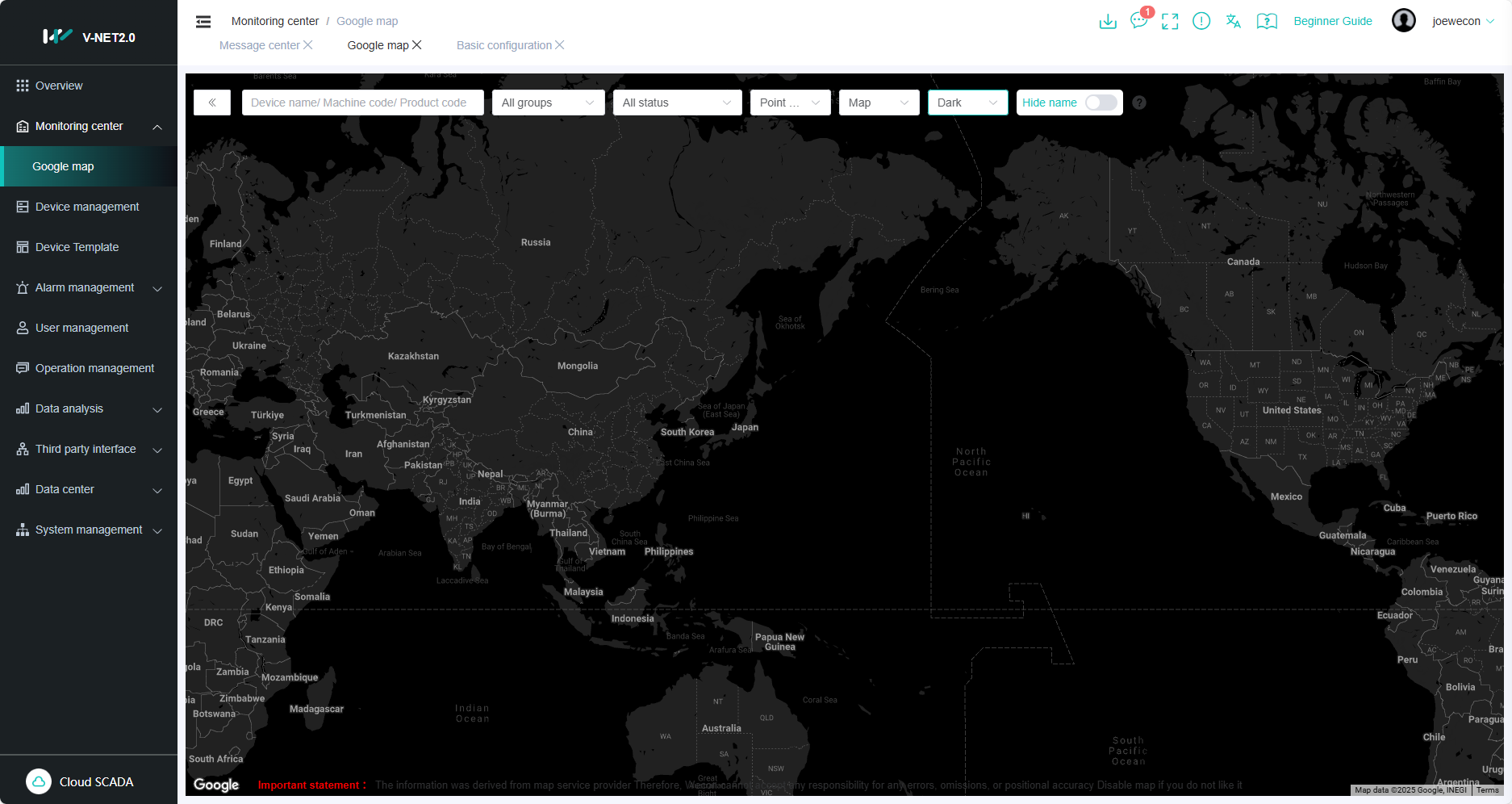

The macaron color map style is as follows.

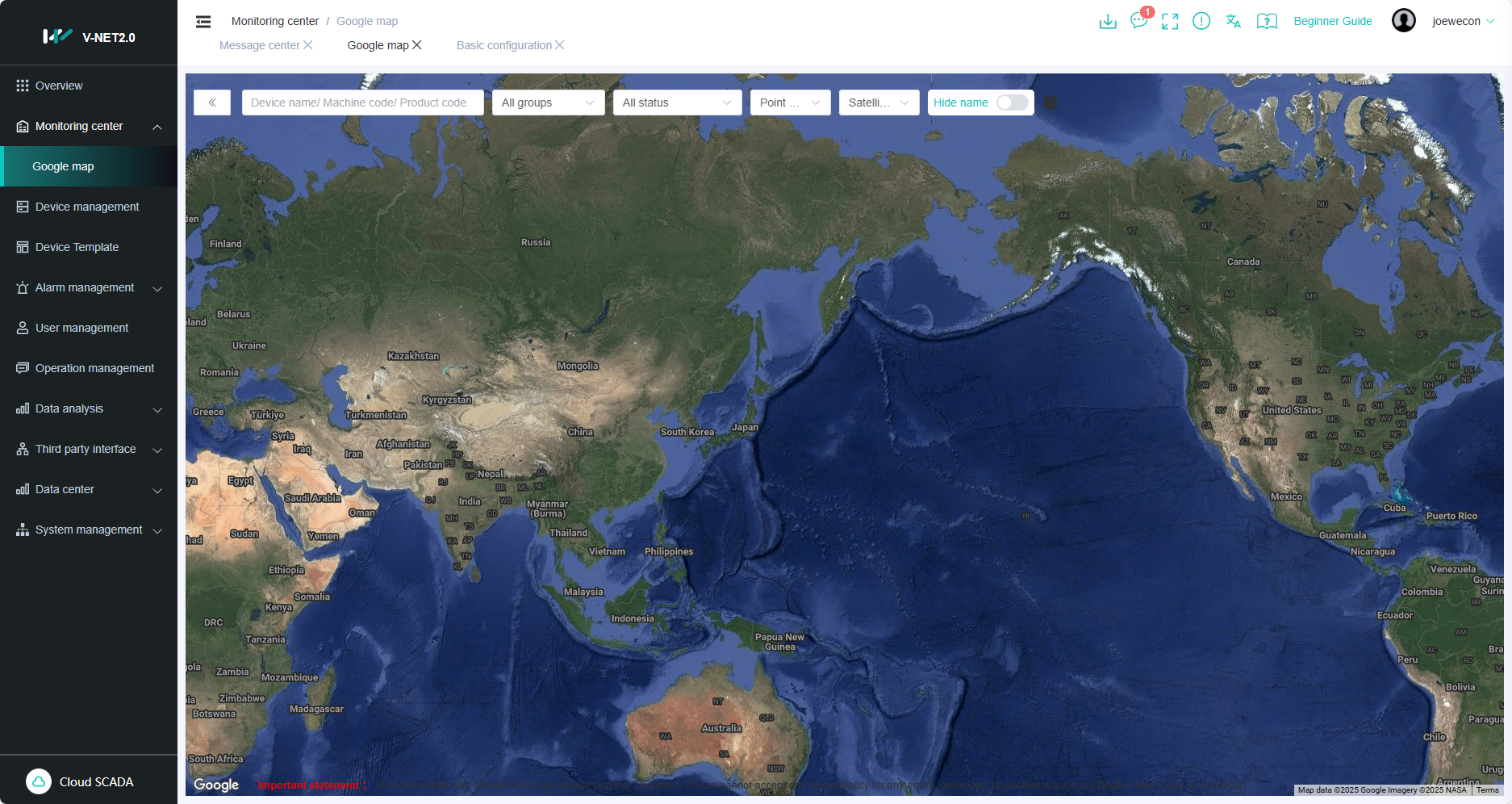

The satellite map style is as follows.
