3 Motion control instructions

Version 2.1 by xingzhi lin on 2025/12/03 17:11

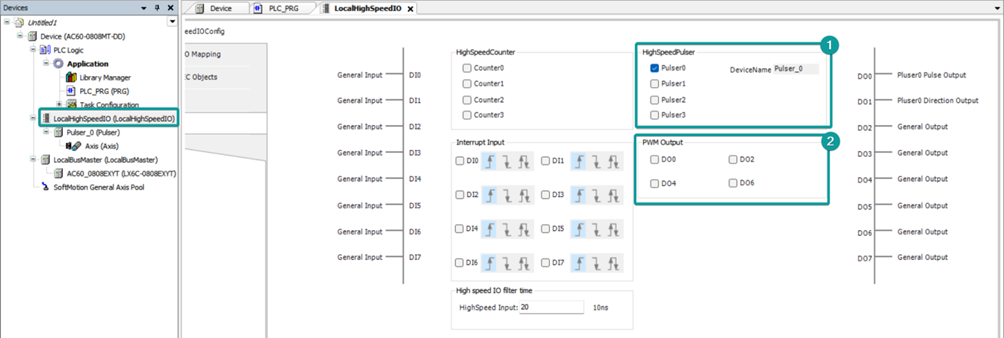

Double-click LocalHighSpeedIO in the device tree on the left side of the software to enter the basic configuration interface.

file:///C:/Users/10575/AppData/Local/Temp/msohtmlclip1/01/clip_image001.png


NumberFunction configuration
①High-speed pulse output function configuration
②PWM output function configuration
