How can I use high speed input in Codesys software?

Version 5.1 by Jett on 2025/12/04 10:51

In Wecsys software, we have the library of Highspeed IO.

But in Codesys software , it needs to be imported from outside.

You can use this link to download the device library and import it to software.

Library: Download Link

Device: Download Link

① Download the library into your PC.


②Open the Codesys software - [Tools] - [Library Repository]


③Click [Install] - Choose the file - [OK]

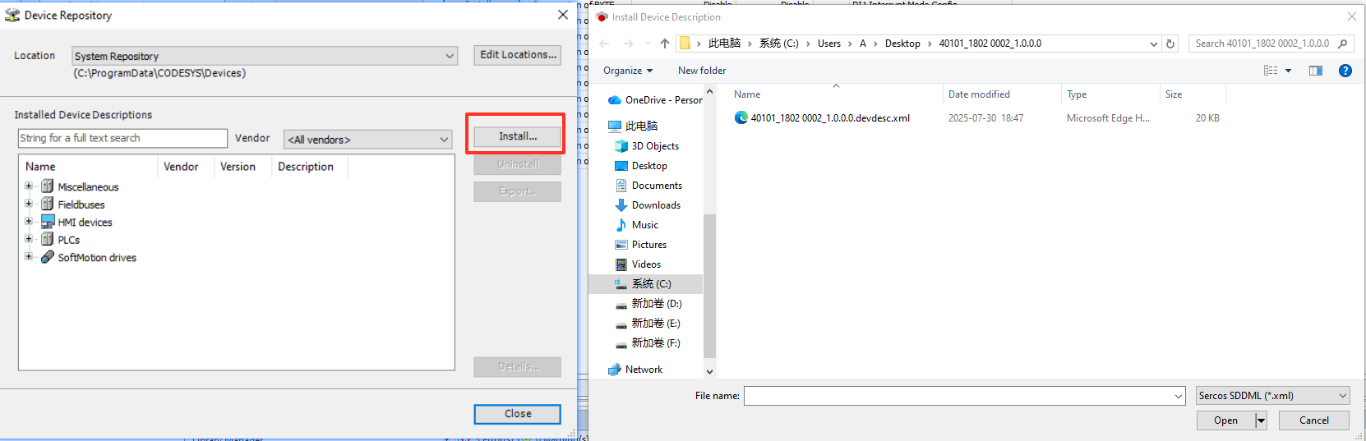

④Open the Codesys software - [Tools] - [Device Repository]


⑤Click [Install] - Choose the file - [OK]


④Right click [Devide] - [Add Device]


⑤Add the [HighSpeedIO] in the program tree


About how to use the High speed IO,kindly check this Youtube video.

Youtube Link

Note: The function is only for versions after January 2025
