LX6V Series

Last modified by Wecon on 2025/09/03 21:02

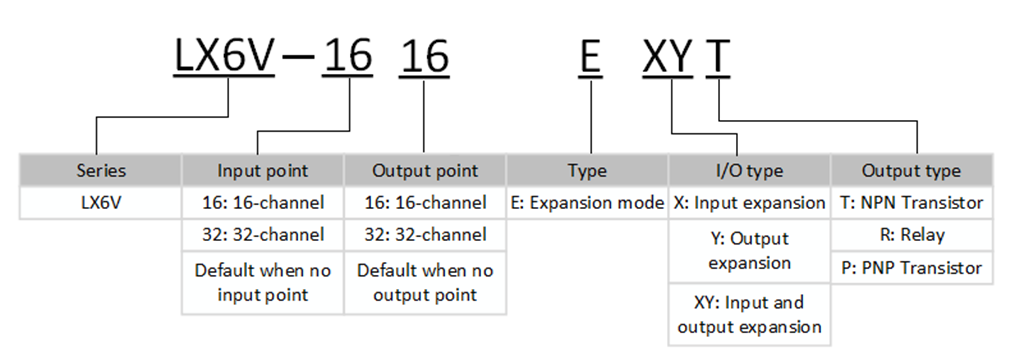

Naming rules

Model	Description
LX6V-0808EXYT	8-channel switch input and 8-channel transistor output. Input supports NPN or PNP. Output supports NPN.
LX6V-16EX	16-channel switch input; Input supports NPN or PNP.
LX6V-16EYT	16-channel transistor output; Output supports NPN.

Model	Function description
LX6V-1616EXYT	16-channel switch input, 16-channel transistor output; Support NPN or PNP input, support NPN output.
LX6V-1616EXYP	16-channel switch input, 16-channel transistor output; Support NPN or PNP input, support PNP output.
LX6V-32EYT	32-channel NPN transistor output;
LX6V-32EX	32-channel switch input; Support NPN or PNP input;

Device specifications and wiring description

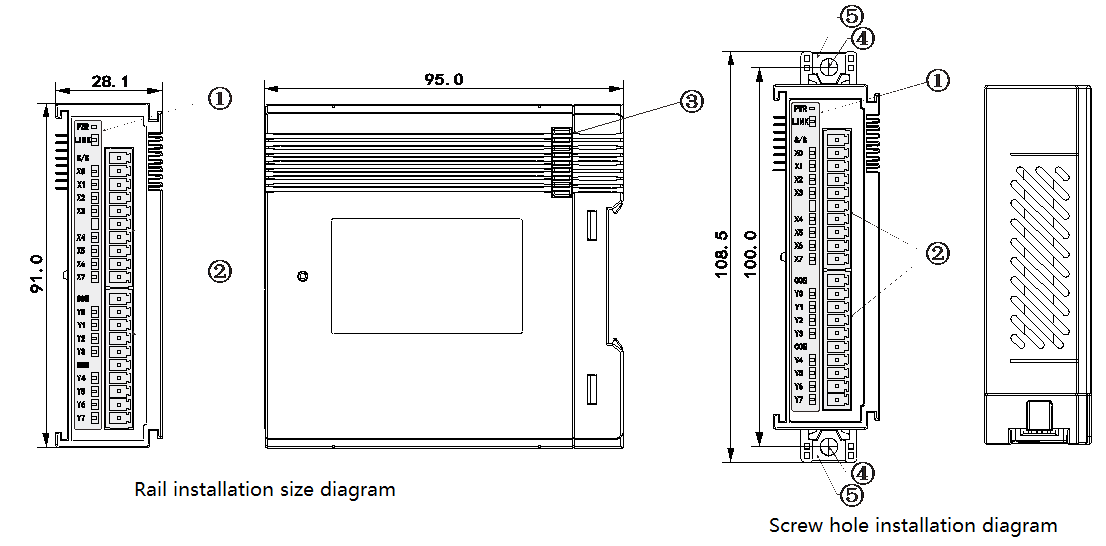

Appearance and size

①I/O LED；②I/O terminal；③Expansion module interface； ④Installation hole: 2 (Φ4.5) ；⑤DIN rail fastener

Terminal description

Terminal block arrangement of I/O expansion module as follows:

Module type	Terminal arrangement
LX6V-0808EXYT
LX6V-16EX
LX6V-16EYT

Installation

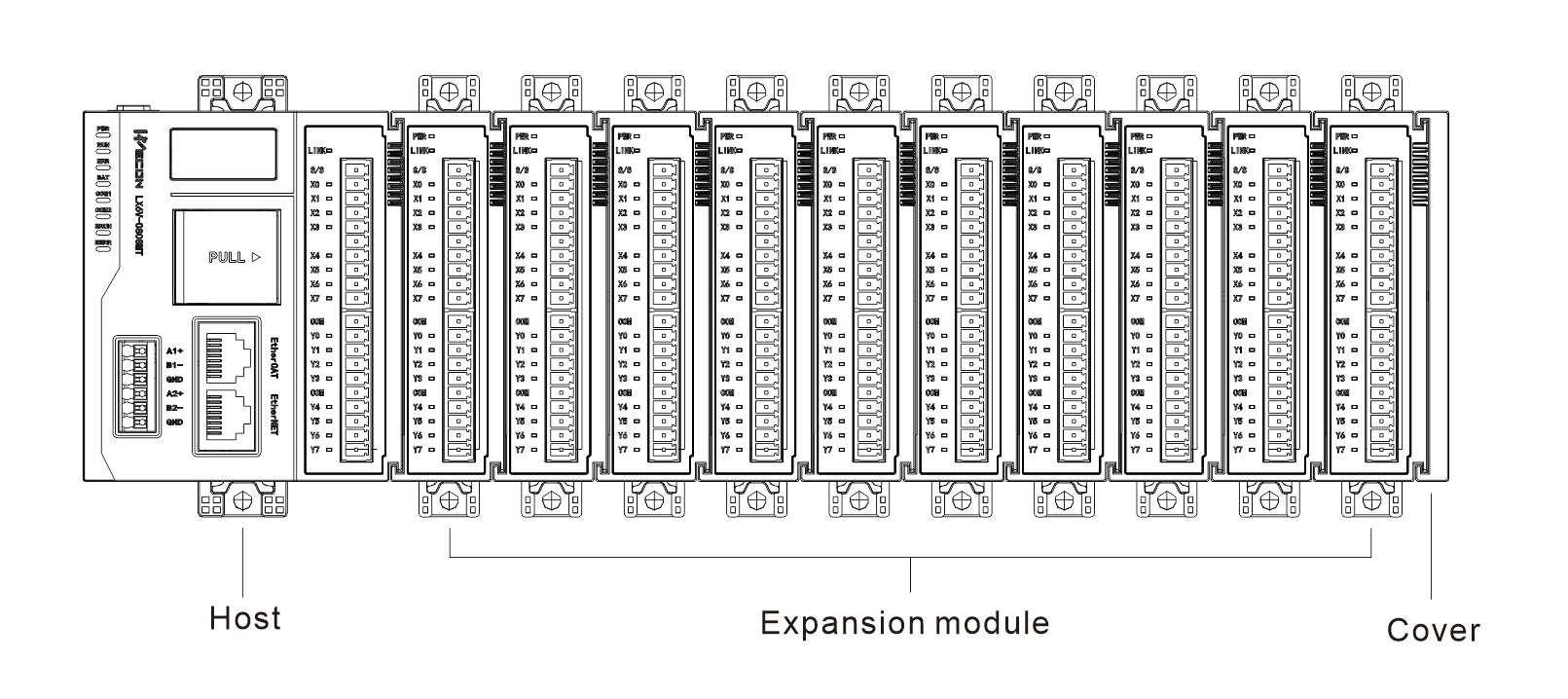

When using, please put the cover at the right side of the last expansion module and align module interface slot to connect it. As shown in the figure below:

Parameter Specification

Input specification

Project	Digital input

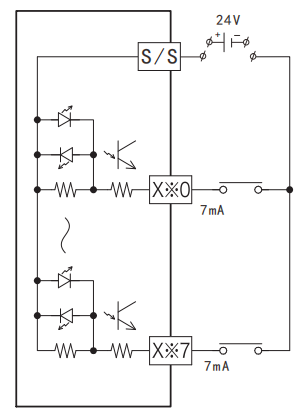

Input circuit composition	The figure shows NPN connection. If S/S is connected to 24V negative electrode and X is connected to positive electrode, it is PNP connection.
Input signal voltage	DC±24V ±10%
Input signal current	7mA/DC24V (The input current when inputting standard 24V.)
Input ON current	Above 3.5 mA
Input OFF current	Below 1.5 mA
Input response time	About 0.2ms
Input signal form	Contact input: support NPN and PNP input
Circuit insulation	Transformer isolation
Action display	When ON is input, LED lights up.

Output specification

Project		Transistor output

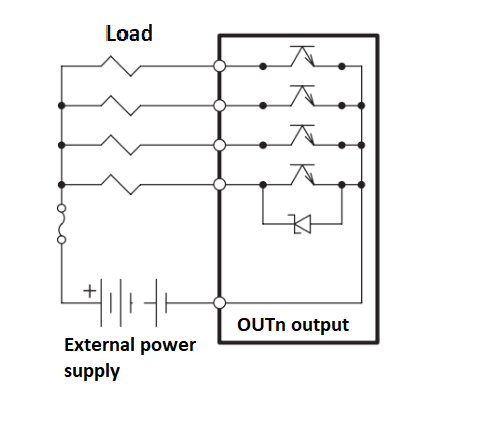

Output circuit composition
External power supply		DC5~30V
Circuit insulation		Transformer isolation
Action display		LED lights up when driving.
Maximum load	Resistance load	0.4 A/1 point
	Inductive load	9.6W/DC24V
	Lamp load	0.9 W/DC24V
Open circuit leakage current		0.1 mA/DC30V
Minimum load		－
Response Time	OFF → ON	About 0.2ms
Response Time	ON → OFF	About 0.2ms

Environment specification

Project	Specification requirements
Use environment	No corrosive, combustible gas, no large amount of conductive dust (dust)
Environment temperature	0℃~55℃
Environment humidity	35~85%RH (Non-condensing)
Installation	After being installed on the host, it is installed on the rail through a buckle.
Overall size	9128.195mm

Software specification

Input point:

Project	Specification requirements
Input port filter time	0ms ~ 64ms (10ms: Default setting), every four X points are one group, and share a group of filter parameters.
Input port anomaly detection and indication	None
Input channel logic level configuration	No
Independent channel enabling configuration	No
Diagnostic report configuration	No
IO mapping	Support three IO mapping methods: bit access, byte access, word access.

Output point:

Project	Specification requirements
Output port anomaly detection and indication	None
Output channel logic level configuration	No
Independent channel enabling configuration	No
Diagnostic report configuration	No
IO mapping	Support three IO mapping methods: bit access, byte access, word access.

Instructions

Expansion module configuration process description of upper computer (LX6V-0808EXYT Model as an Example)

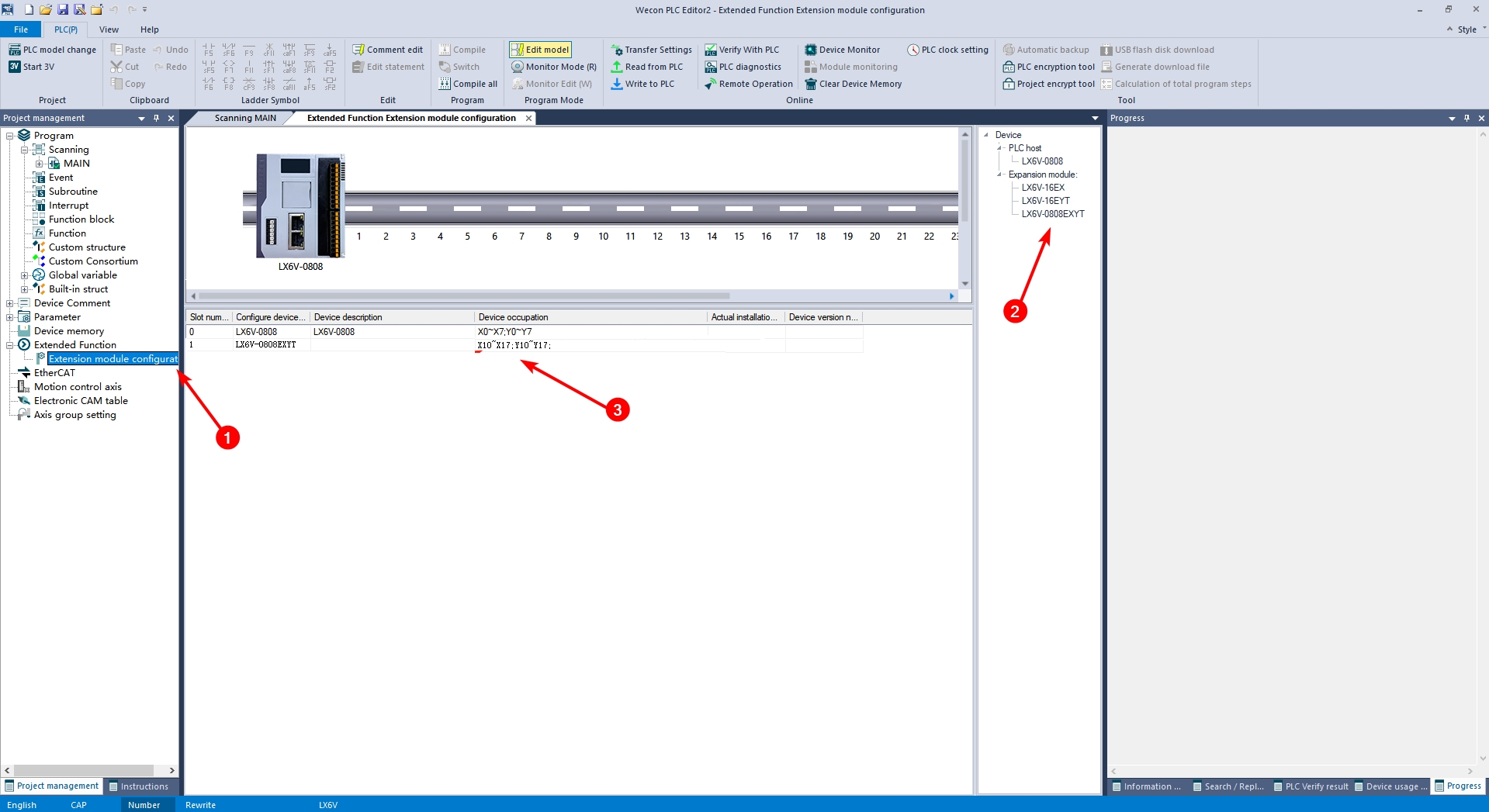

① Click on the expansion module configuration to open the configuration interface;

② Adding new modules according to the model and position of the current module connected host;

③ Click the module in the current slot to open the configuration interface;

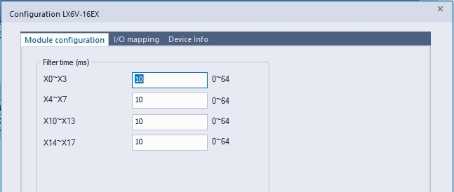

④ Configure module X-point filter time and I/O mapping in turn. Click OK to save the configuration;

Filter time: The default configuration filter time here is 10ms, and the range: 0ms~64ms

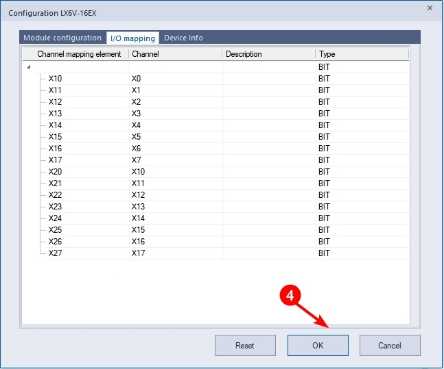

I/O mapping The X and Y points of the module are mapped to X10-X17 and Y10-17 of PLC in turn.

✎Note: Since the current host is LX6V-0808MT and X0~X7 and Y0~Y7 are already occupied by the host, the module channel mapping device are allowed to be configured starting from X10 and Y10.

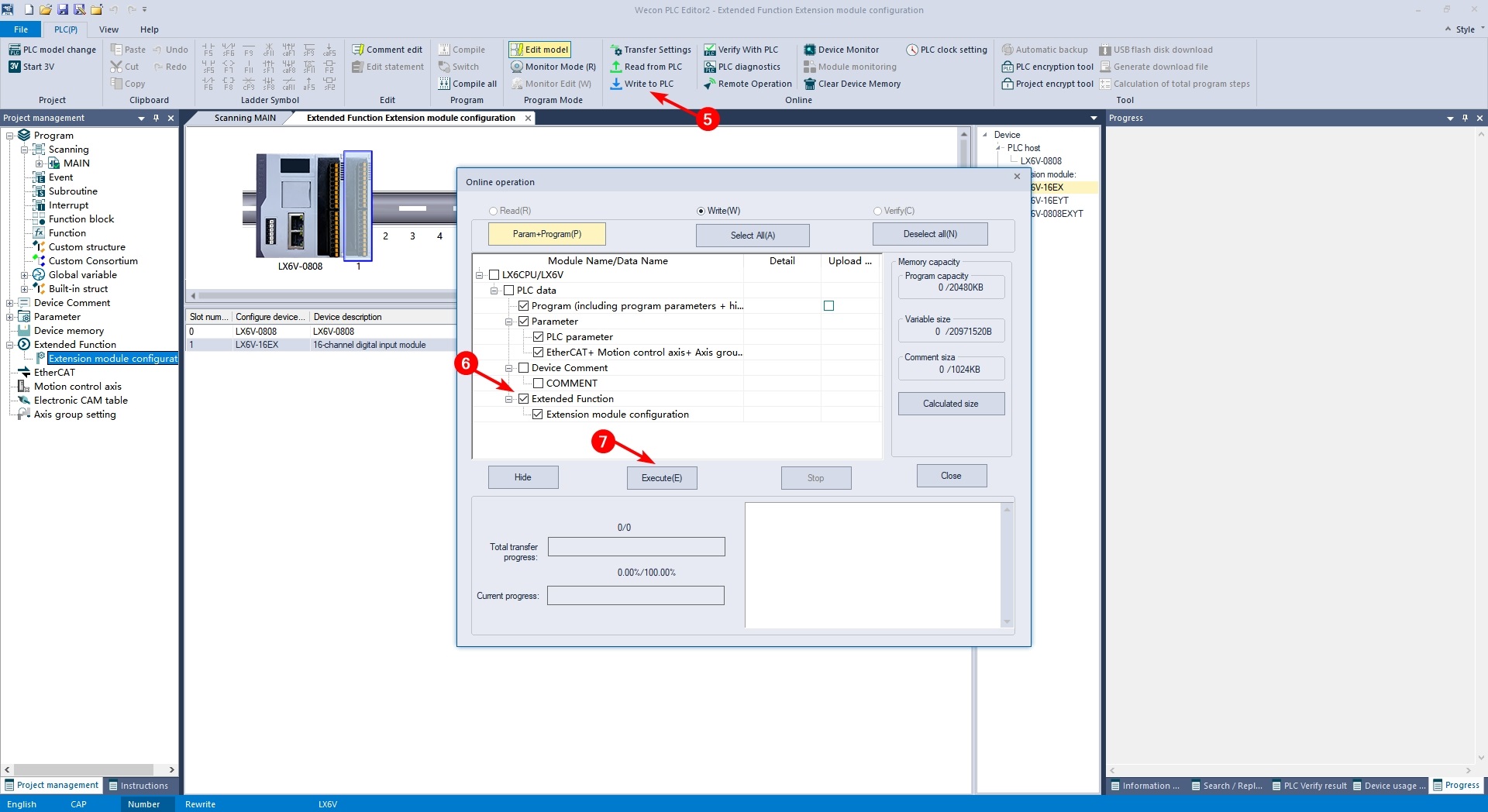

⑤ Click PLC download in turn and check Expansion function. Then click ‘Execute’, and download the expansion module configuration to PLC.

Example

Example description

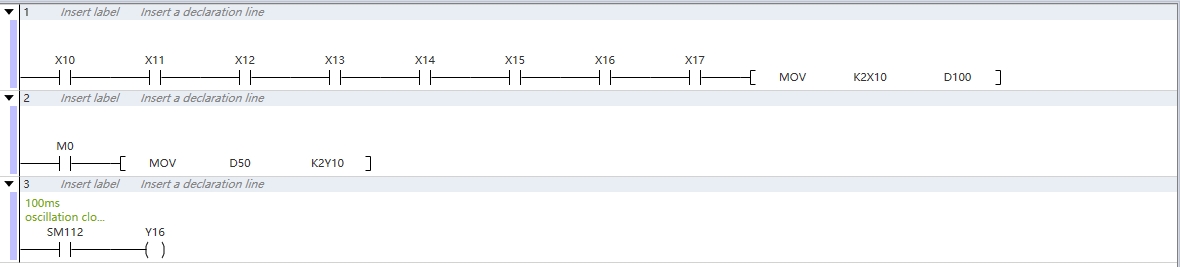

① After configuring the module and I/O mapping by using the expansion module configuration interface, the X point of the module can be monitored or the Y point state of the module can be set directly through the ladder diagram;

② When M0 is set to ON, Y10~Y17 will be set as the lower 8 bits status of D50;
