New recipe tool have no function address,How can i use the old recipe tool in the PI9.0?

Last modified by Wecon on 2025/09/03 21:03

The new recipe tool is only for the ig series.

And if there are old recipe Settings in the program, the old recipe Settings will always be maintained in the program.

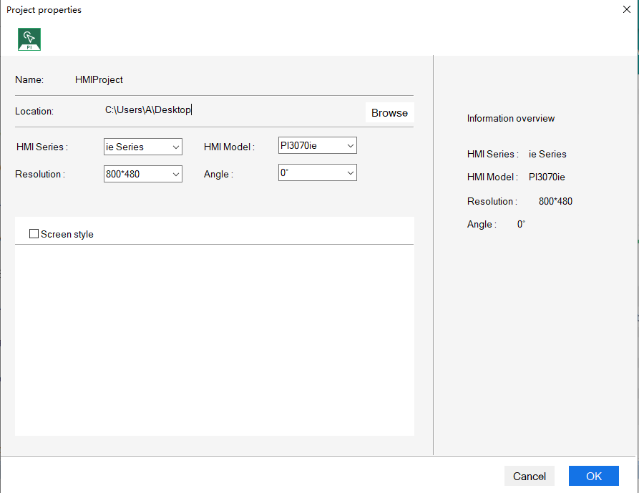

Therefore, when creating a project, you can first select the ie series.

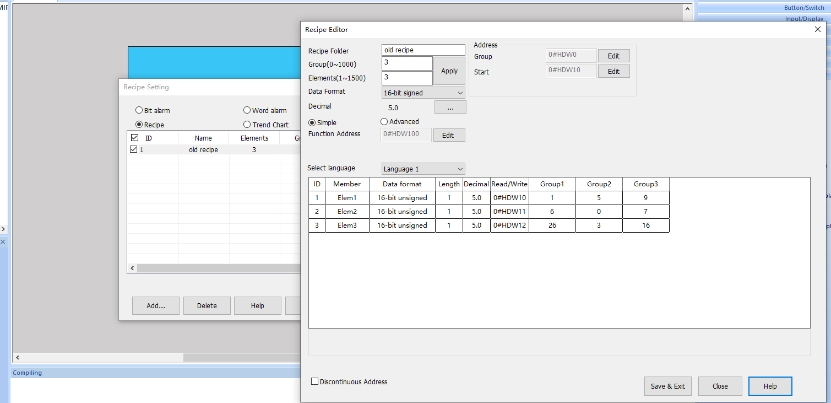

And create a old recipe setting in this project.

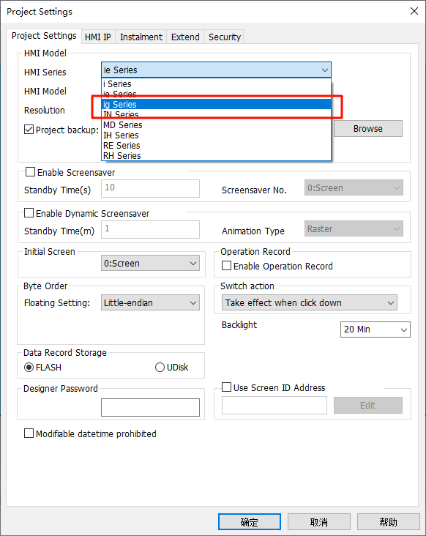

And change back to ig serie in [Project setting]


Then you can use the old recipe tool in the PI9.0 - ig series.
