INVT IVC1

Support Series: INVT IVC1 Series

HMI Settings

Item	Settings	Optional	Note
Protocol	INVT IVC1
Connection	RS232	RS485
Baud rate	19200	57600, 38400, 19200, 9600, 4800, 2400
Data bit	8	8,7
Parity	Even	Even,Odd,None
Stop bit	1	1,2
PLC station No.	1	1	Need to be same as PLC settings

Address List

Type	Device registers	Format	Range
Bit	Y	YOOO	0~177
	X	XOOO	0~177
	M	MDDDD	0~2047
	SM	SMDDD	0~255
	S	SDDDD	0~1023
	T	TDDD	0~255
	C	CDDD	0~255
Word	D	DDDDD	0~7999
	SD	SDDDD	0~255
	Z	ZDD	0~15
	T	TDDD	0~255
	C	CDDD	0~199
Double Word	C	CDDD	200~255

PLC Settings

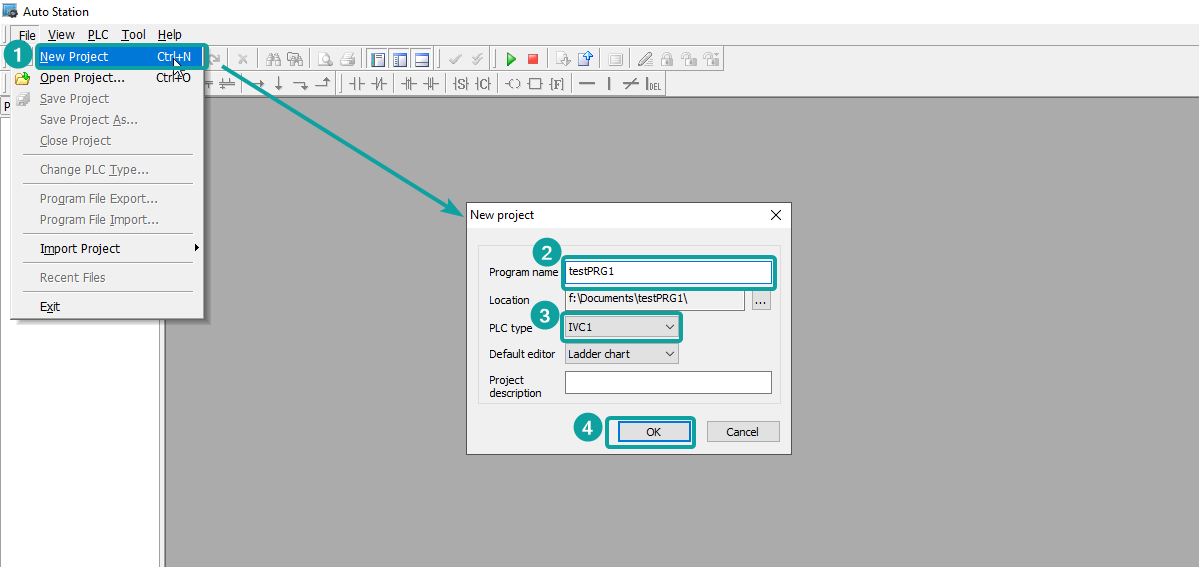

Create new program, and select the PLC type as IVC1.

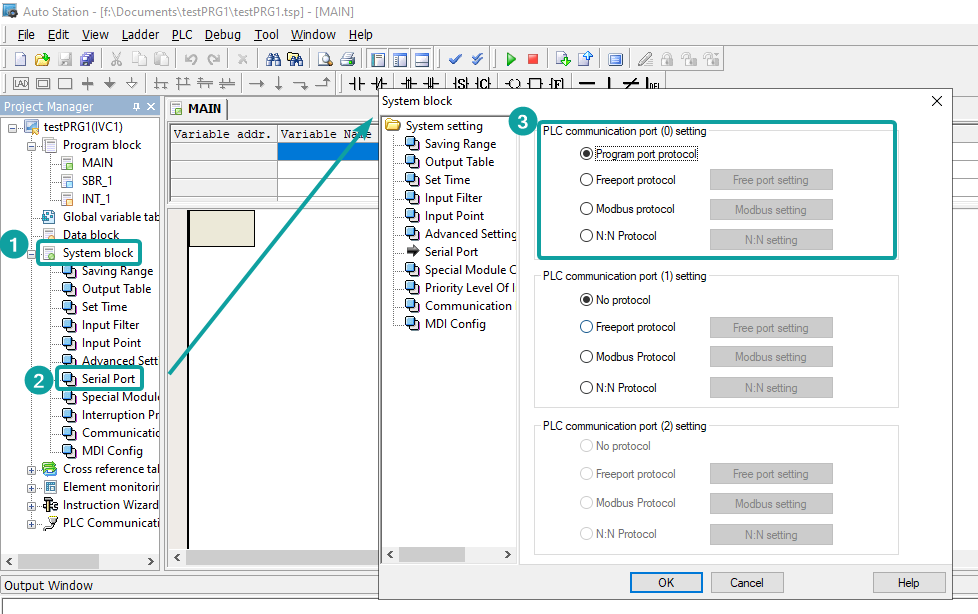

Double click the tree node of [System block], and then double click the [Serial Port] to open the PLC port settings setup window. Find the PORT0 setting to change.

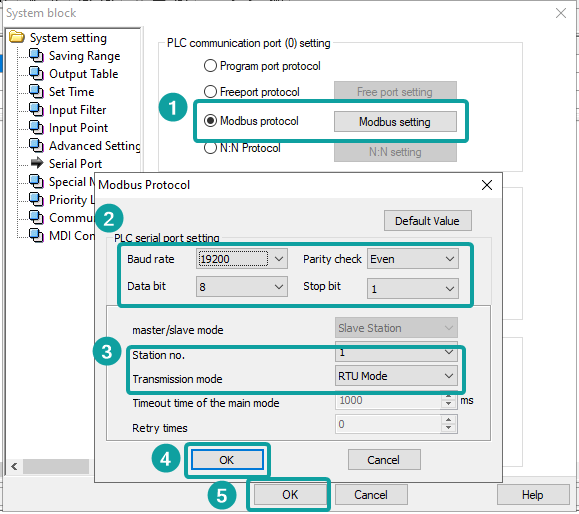

Change the PORT0 setting as Modbus protocol, and click OK to save the setting.

✎Note: Program port protocol is only available for PC communication, so need to change as Modbus protocol.

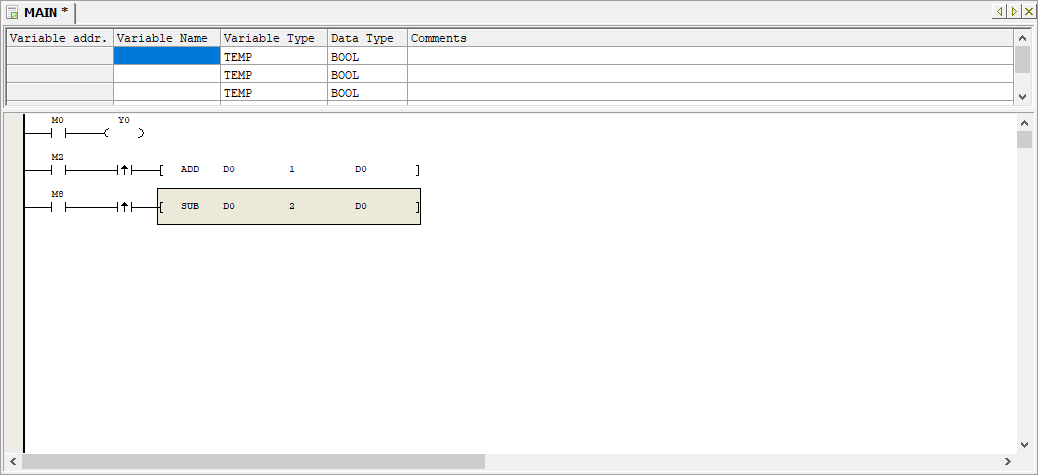

Program the PLC

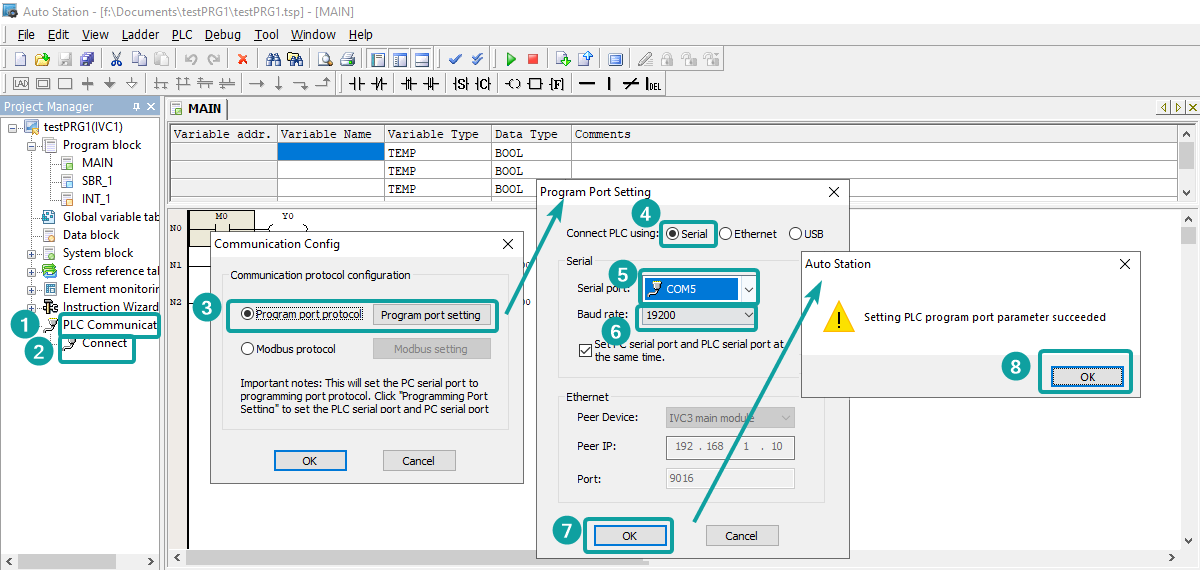

Connect the PLC with PC by RS232-USB converter cable. Setup the connection method from [PLC Communication]-[Connect]. If set up successfully, it would show like below.

✎Note: Please remember to switch the PLC dip switch to TM when programming PLC, and switch the PLC dip switch to ON when communication with HMI.

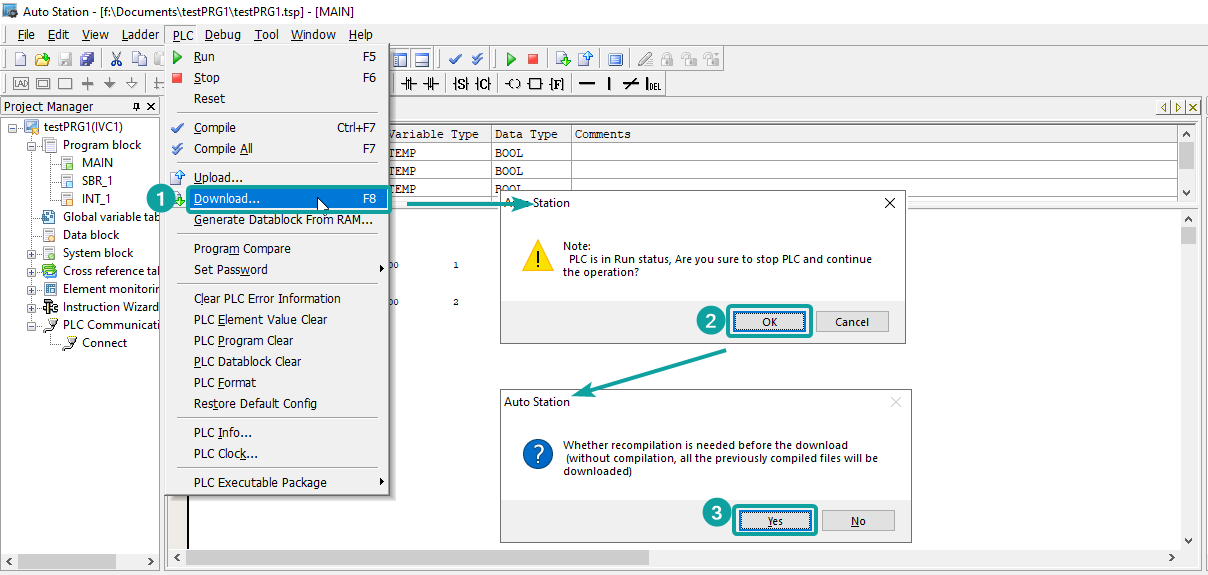

Click [PLC]-[Download] to download program into PLC. If not compile the program, when click download, it would ask for recompilation to process the next step.

Click [Download] to finish the job.

Cable Wiring
