Mitsubishi

FX2N Series

Supported Series: Mitsubishi FX2N series

HMI Settings

ItemSettingsNote
ProtocolMitsubishi FX2N
ConnectionRS422/RS485/RS232
Baud rate9600~115200
Data bit7/8
ParityEVEN/Odd/None
Stop bit1/2
PLC station No.0~255

Address List

TypeDevice registersFormatRangeNote
BitXXo0~303237
YY o0~303237
MM d0~99999
TT d0~99999
CC d0~99999
SS d0~99999
SMSM d8000~9999
LampLamp d0~0
WordXXo0~303237
YY o0~303237
MM d0~99999
TT d0~99999
CC d0~199
DD d0~7999
SS d0~99999
SDSD d8000~9999
CHCH d200~255

PLC Setting:

①PLC Default Parameters:
[Connection type]RS422;[Baud rate]9600, [Data bit]7, [Stop bit]1,[Parity]EVEN; [Station number]0
Note:The serial port parameters should be set depending on field requirements

②PC and PLC connection:

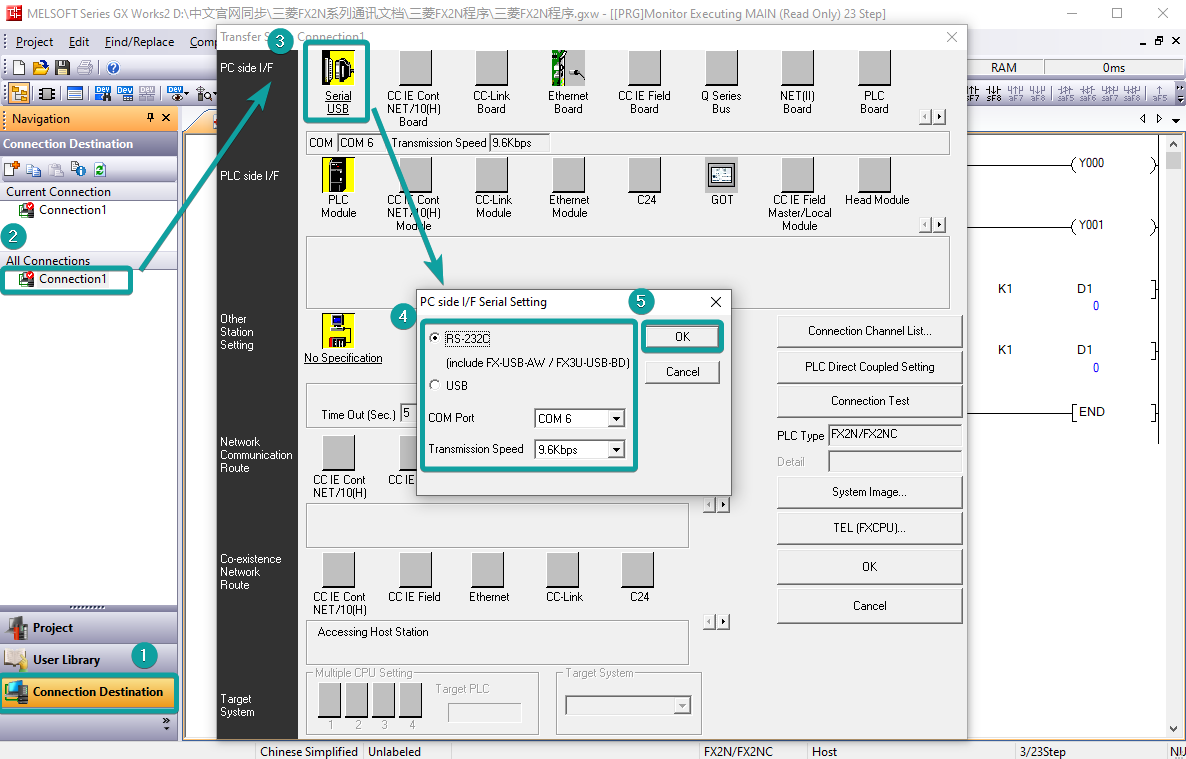

[All connection]→[Connection 1]→[Transfer Setup Connection1]→[Serial USB]→RS-232C: PC and PLC are connected by USB to RS232 adapter,choose corresponding [COM Port]COM 6 →[Transmission speed]9.6Kbps→[setup] →[Parity]EVEN→[Data bits]7→[Stop bits]1→[OK]

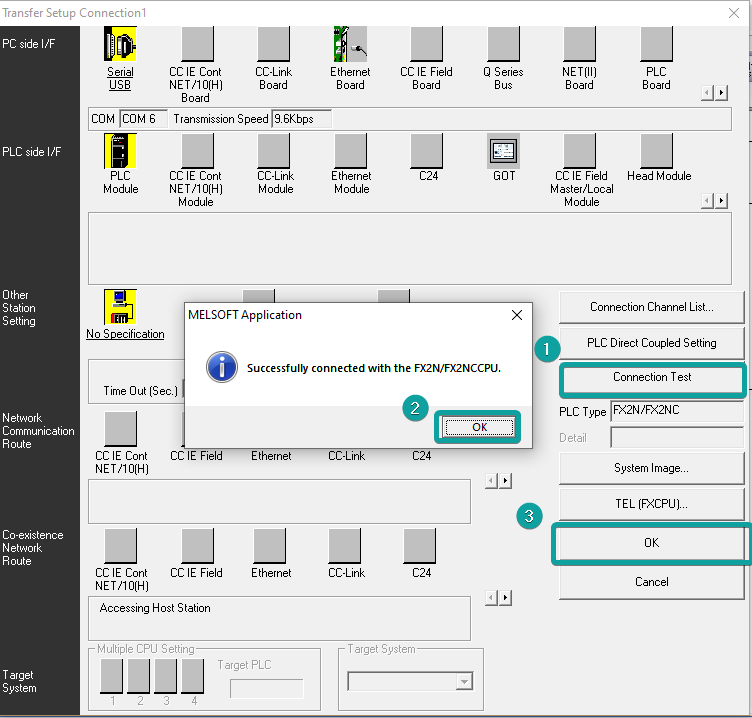

Connection test:when connection is OK,the GX Works2 prompts “Successfully connected with the FX2N/FX2NCCPU.”


Cable Wiring

  • RS485

12.PLC Protocol_html_d4012bdeb4ce4aae.png

12.PLC Protocol_html_4bf57ad8d44eacc4.png

  • RS422

12.PLC Protocol_html_f8a6bebc5792960d.png

✎Note: COM3 only available in PI8000/PI9000 series.

FX3U/3G/3GA Serial

HMI Settings

ItemSettingsNote
ProtocolMitsubishi FX3U/3G/3GA
ConnectionRS422
Baud rate9600~115200
Data bit7/8
ParityEVEN/Odd/None
Stop bit1/2
PLC station No.1~255

Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXXo0~303237
YYY o0~303237
MMM d0~99999
TTT d0~99999
CCC d0~99999
SSS d0~99999
SMSMSM d8000~9999
WordXXXo0~303237
YYY o0~303237
MMM d0~99999
TTT d0~99999
CCC d0~199
DDD d0~7999
SSS d0~99999
SDSDSD d8000~9999

Configure the communication protocol



PLC Setting:

①Open GX Works2, create a new PLC project or open the project that has been created.

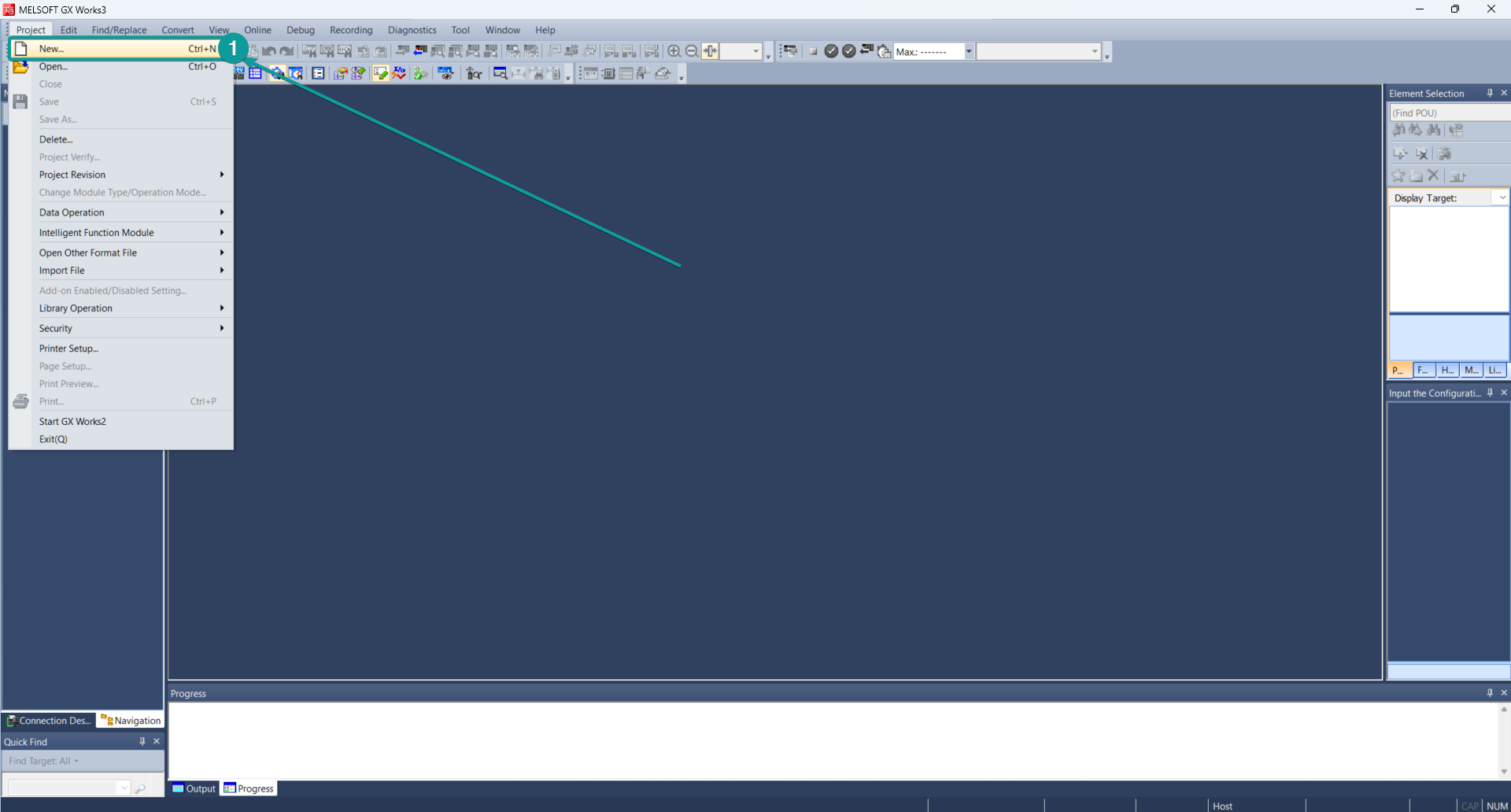

Create new project： [Project]→[New]→[Series] FXCPU→[Type] FX3G/FX3GC→[OK].


②PLC Default Parameters:
[Connection type]RS422;[Baud rate]9600, [Data bit]7, [Stop bit]1,[Parity]EVEN; [Station number]0
Note:The serial port parameters should be set depending on field requirements

③PC and PLC connection:

[All connection]→[Connection 1]→[Transfer Setup Connection1]→[Serial USB]→RS-232C: PC and PLC are connected by USB to RS232 adapter,choose corresponding [COM Port]COM 5 →[Transmission speed]9.6Kbps→[setup] →[Parity]EVEN→[Data bits]7→[Stop bits]1→[OK]


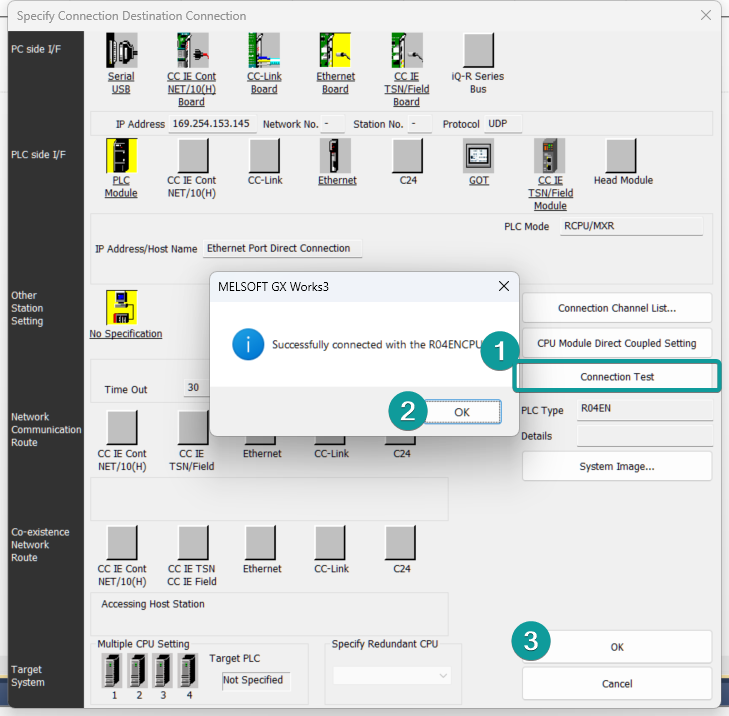

Connection test:when connection is OK,the GX Works2 prompts “Successfully connected with the FX3G/FX3GCCPU.”


Wiring


FX NOPROTOCOL

Mitsubishi FX3G-RS232-BD

HMI Settings

ItemSettingsNote
ProtocolMitsubishi FX NOPROTOCOL
ConnectionRS232
Baud rate9600
Data bit7
ParityEVEN
Stop bit1
PLC station No.0

Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXX o0~303237
YYY o0~303237
MMM d0~99999
TTT d0~99999
CCC d0~99999
SSS d0~99999
SMSMSM d8000~9999
LampLampLamp d0~0
WordXXX o0~303237
YYY o0~303237
MMM d0~99999
TTT d0~99999
CCC d0~199
DDD d0~7999
SSS d0~99999
SDSDSD d8000~9999

Configure the communication protocol

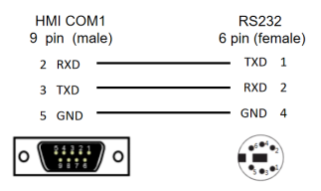

Wiring


FX3U Ethernet

Mitsubishi FX3U series PLC

HMI Settings

ItemsSettingsNote
ProtocolMitsubishi FX3U Ethernet
ConnectionEthernet
Port No.5009Must be the same as the PLC setting
PLC station No.0

Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXX OOO0~377
YYY OOO0~377
MMM DDDD0~7679
SMSMSM DDDD8000~8511
SSS DDDD0~4095
TSTSTS DDD0~511
CSCSCS DDD0~255
WordCNCNCN DDD0~199
TNTNTN DDD0~511
DDD DDDD0~7999
SDSDSD DDDD8000~8511
RRR DDDDD0~32767

Ethernet Module Settings

FX3U-ENET-L module configuration
 Set up the FX3U-ENET-L Ethernet module settings as follows.
 Select the module location, which in this document is Module 0.


Select "Operational setting" to enter the following screen.

The Ethernet module IP is set to 192.168.39.254 in this document, and other options are default.


Select "Open setting" to enter the setting interface, the settings are as follows.

The third item "Protocol" selects TCP, and "Open system" selects MELSOFT connection, which allows the

Mitsubishi programming software GX works2 to communicate with the FX3U via the Ethernet module.


Click on "transter setup" - "PC side I/F setting", see the following figure.

After setting, the first download must use the programming cable, as shown in the figure; after that, can

use the IP set in the "Ethernet board" to communicate directly with the network cable.


Read and write data from the Ethernet module


Set "Transter setup" to COM communication, and read or write operation as shown below


PLC Settings (GX Works 2)

Create a blank FX5U project

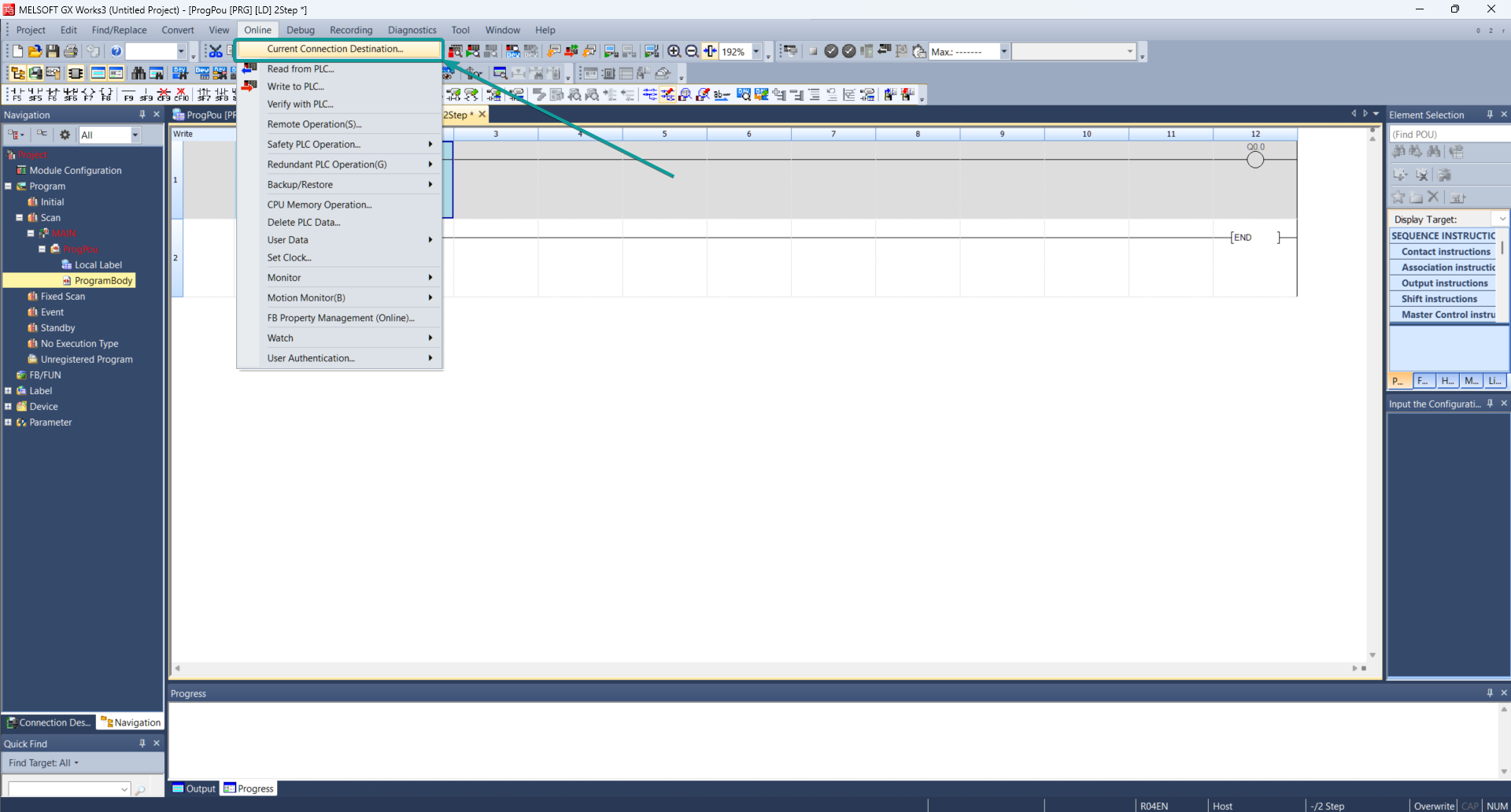

Find Current Connection in the navigation


Select Connection Channel List

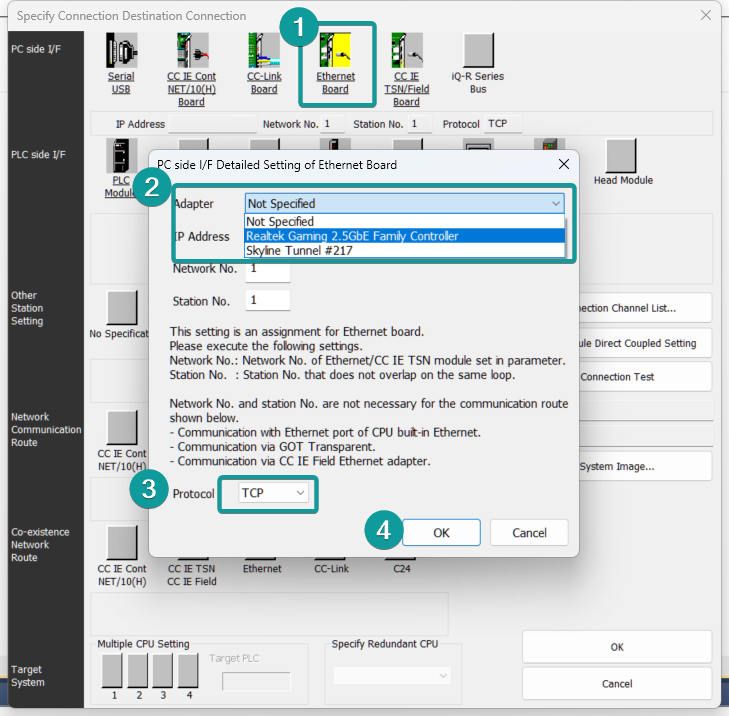

Select Ethernet board communication


Select Ethernet Module
 Set the IP address of the PLC


Read or write PLC data, in this document is read



HMI Communication Setting




HMI Communication Setting



FX5U Serial

Mitsubishi FX5U series PLC

HMI Settings

ItemSettingsNote
ProtocolMitsubishi FX5U
ConnectionRS422/RS485
Baud rate9600
Data bit7
ParityOdd
Stop bit1
PLC station No.0~255Need to be the same as PLC settings

Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXX o0~1777
YYY o0~1777
MMM d0~32767
BBB h0~7FFF
FFF d0~32767
SBSBSB h0~7FFF
TSTSTS d0~1023
TCTCTC d0~1023
STSSTSSTS d0~1023
STCSTCSTS d0~1023
CSCSCS d0~1023
CCCCCC d0~1023
SMSMSM d0~9999
LLL d0~32767
SSS d0~4095
WordWWW h0~3FF
TNTNTN d0~1023
STNSTNSTN d0~1023
CNCNCN d0~1023
RRR d0~32767
SWSWSW h0~7FFF
ZZZ d0~23
DDD d0~7999
SDSDSD d0~11999

PLC Settings (GX Works 3)

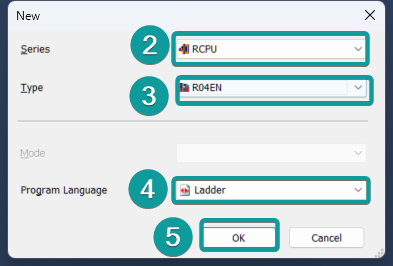

Create a blank FX5U project

Find the 485 serial port module in the system navigation bar and double click to enter the settings.

12.PLC Protocol_html_5c9cb13fac1e6c93.png

Select protocol in the setting item, and set parameters.

12.PLC Protocol_html_de942589ca070228.png

Set station number, and [Message Pattern] (Pattern 1 or Pattern 4)

12.PLC Protocol_html_387ec7d00b5feb59.png

Click the [Apply] button to finish the setting.

Click download and select the items as below, then click [execute] to download the configuration to PLC.

12.PLC Protocol_html_cdef1c5ec8cc2105.png

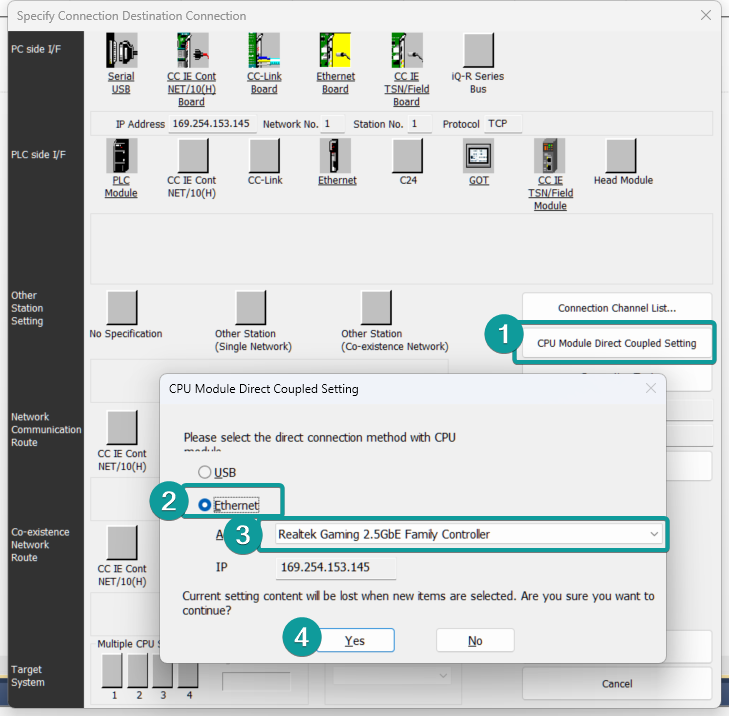

 As soon as download is completed, connect PLC with serial port, then configure it in the [Specify Connection Destination Connection].

Done.

Cable Wiring

  • RS485

12.PLC Protocol_html_d4012bdeb4ce4aae.png

12.PLC Protocol_html_4bf57ad8d44eacc4.png

  • RS422

12.PLC Protocol_html_f8a6bebc5792960d.png


✎Note: COM3 only available in PI8000/PI9000 series.

FX5U Ethernet

Mitsubishi FX5U series PLC

HMI Settings

ItemsSettingsNote
ProtocolMITSUBISHI FX5U Ethernet
ConnectionEthernet
Port No.5002Must be the same as the PLC setting
PLC station No.0Must be the same as the PLC setting

Address List

TypeDevice registersFormatRangeNote
BitXX o0~1777
YY o0~1777
MM d0~32767
BB h0~7FFF
FF d0~32767
SBSB h0~7FFF
TSTS d0~1023
TCTC d0~1023
STSSTS d0~1023
STCSTS d0~1023
CSCS d0~1023
CCCC d0~1023
SMSM d0~9999
LL d0~32767
SS d0~4095
WordWW h0~3FF
TNTN d0~1023
STNSTN d0~1023
CNCN d0~1023
RR d0~32767
SWSW h0~7FFF
ZZ d0~23
DD d0~7999
SDSD d0~11999

PLC Settings (GX Works 3)

PLC Default Parameters:
①[Navigation]→[Parameter]→[FX5UCPU]→[Module Parameter]→[Ethernet Port]:[Basic Settings]→ [Own node settings]:[IP Address]192.168.40.11, [Subnet Mask]255.255.255.0, [Default Gateway]192.168.40.1,[ Communication Data Code] Binary.

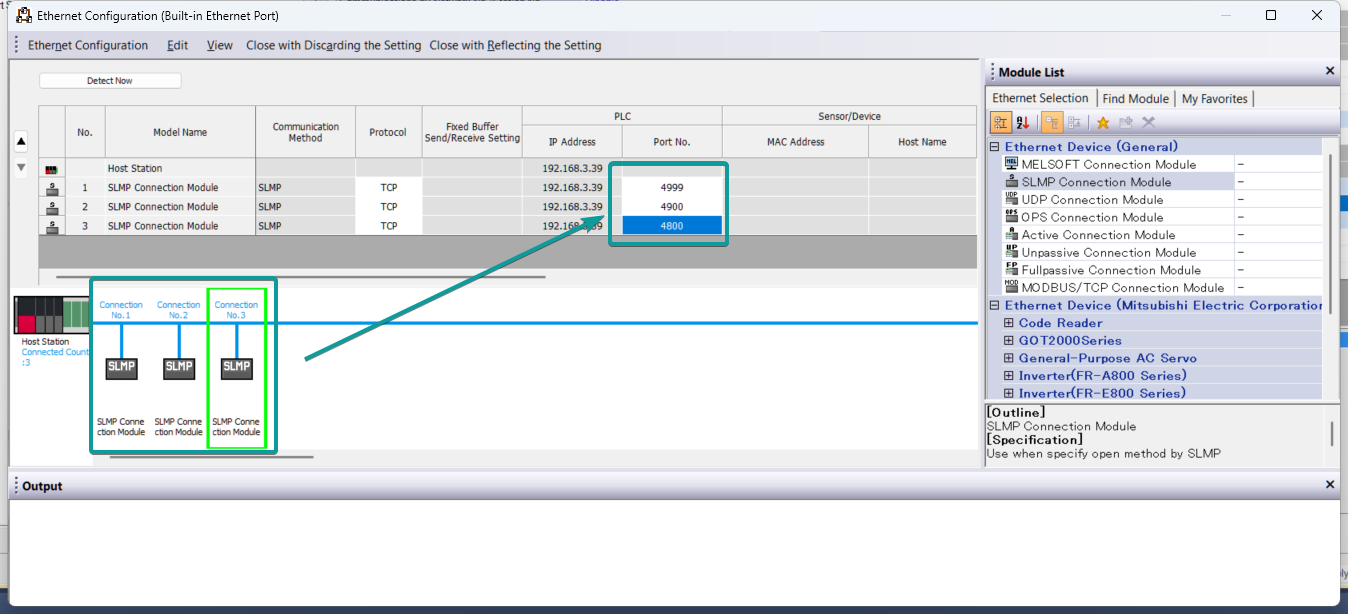

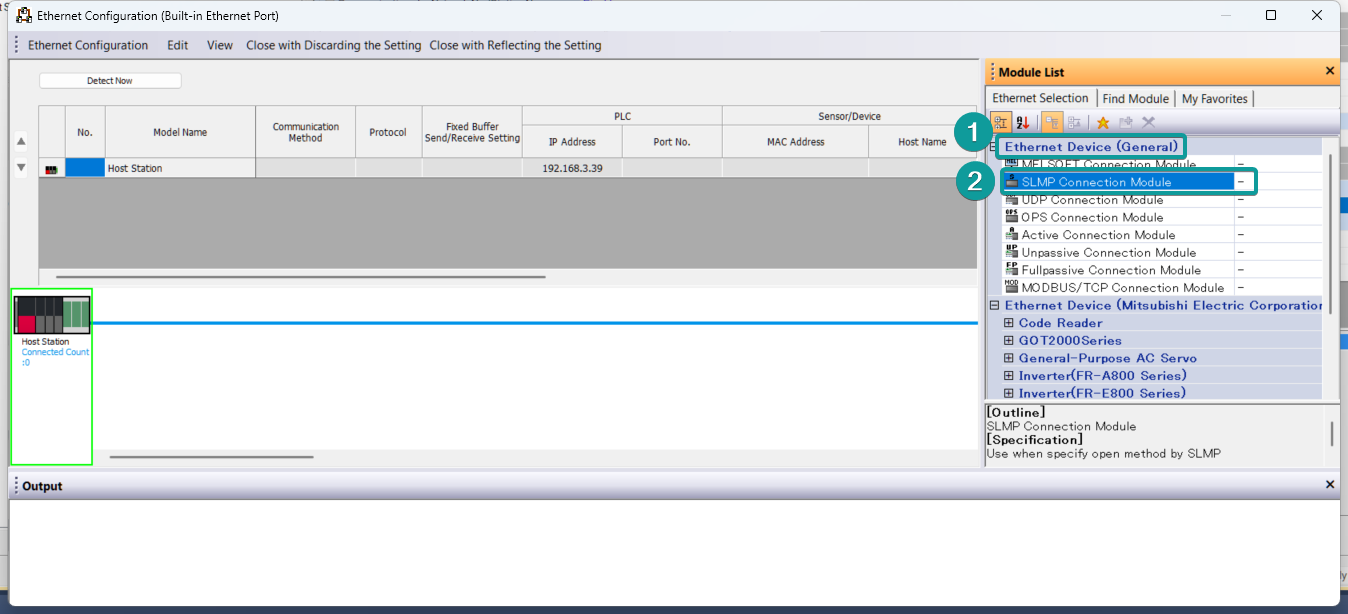

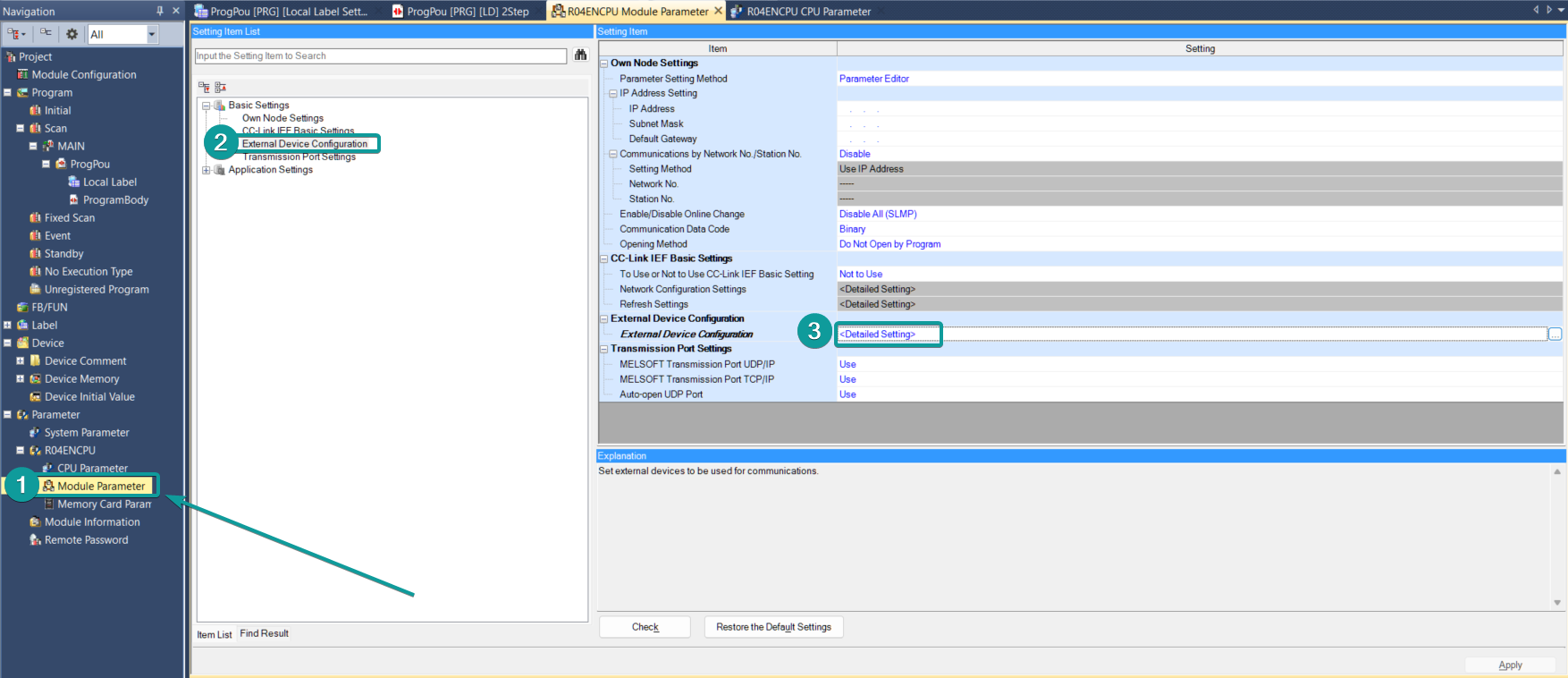

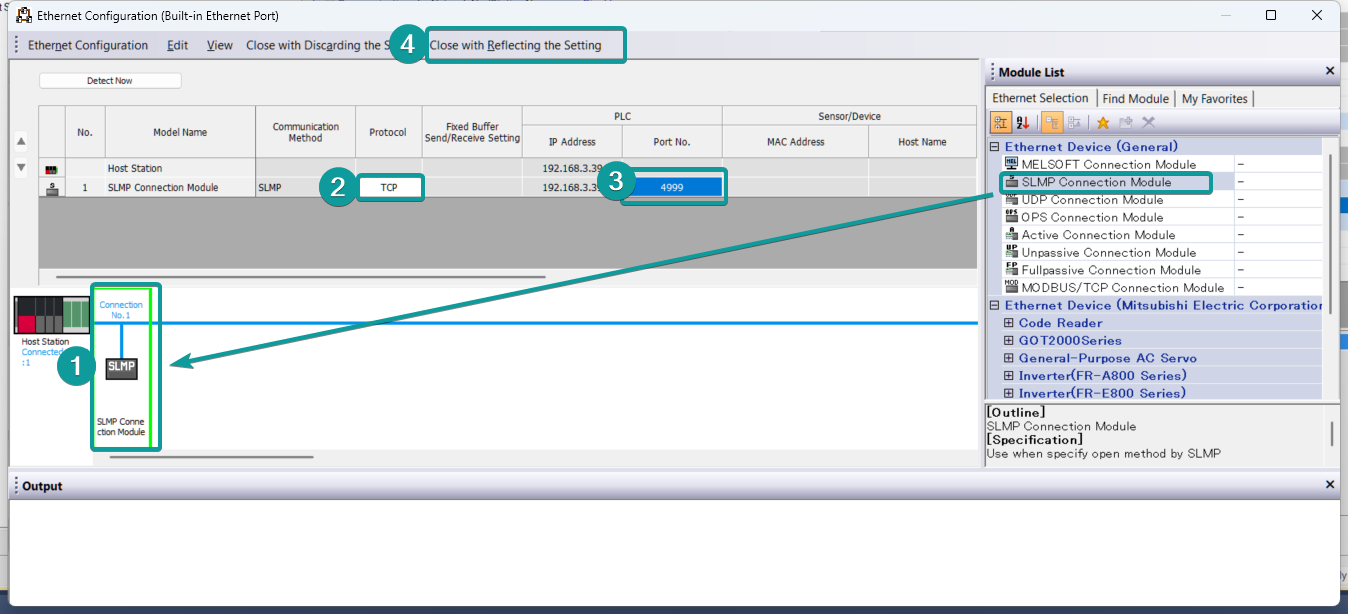

②[External Device Configuration]→[Detailed Settings]→[Ethernet Configuration(Built-in Ethernet Port)]→[Ethernet Device (General)]→[SLMP Connection Module] Drag under Host for Connection No.1→[Port No.]5002→[Close with Reflecting the Setting]


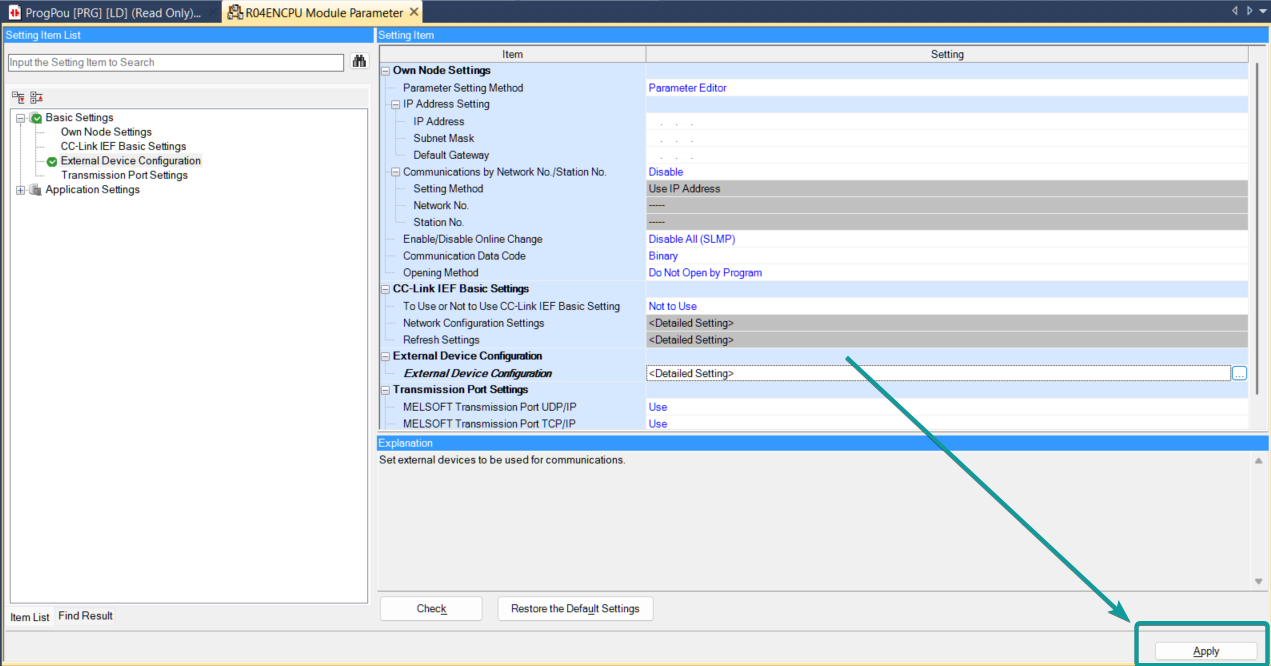

Note:The serial port parameters should be set depending on field requirements

Cable Wiring


L02 CPU Port

Mitsubishi L02 series CPU built-in serial port.

HMI Settings

ItemSettingsNote
ProtocolMitsubishi L02 CPU Port
ConnectionRS422
Baud rate115200
Data bit8
ParityOdd
Stop bit1
PLC station No.1~255Need to be the same as PLC settings

Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXX h0~FFFF
BitYYY h0~FFFF
BitMMM d0~9999
BitLLL d0~9999
BitFFF d0~9999
BitBBB h0~FFFF
BitVVV d0~2047
BitTCTCTC d0~9999
BitSSSSSS d0~9999
BitSCSCSC d0~9999
BitCSCSCS d0~9999
BitCCCCCC d0~9999
BitSBSBSB h0~FFFF
BitSMSMSM d0~2047
BitSTSSTSSTS d0~1023
BitSSS d0~9999
BitDXDXDX h0~FFFF
BitDYDYDY h0~FFFF
BitTSTSTS d0~9999
BitDbitDbitDbit d.d0~99999.0~15
WordWWW h0~FFFF
WordTNTNTN d0~99999
WordSNSNSN d0~99999
WordCNCNCN d0~99999
WordRRR d0~99999
WordSWSWSW h0~FFFF
WordZZZ d0~99999
WordZRZRZR h0~FFFF
WordDDD d0~99999

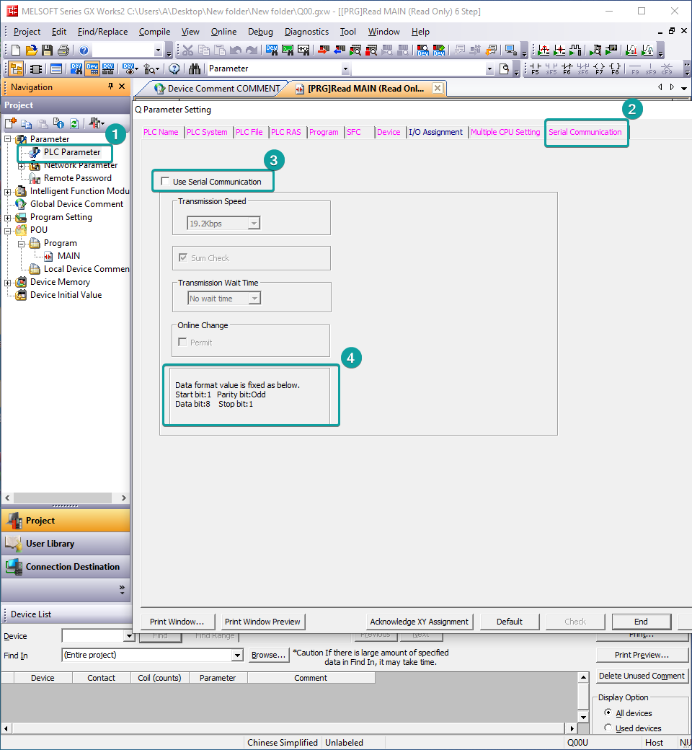

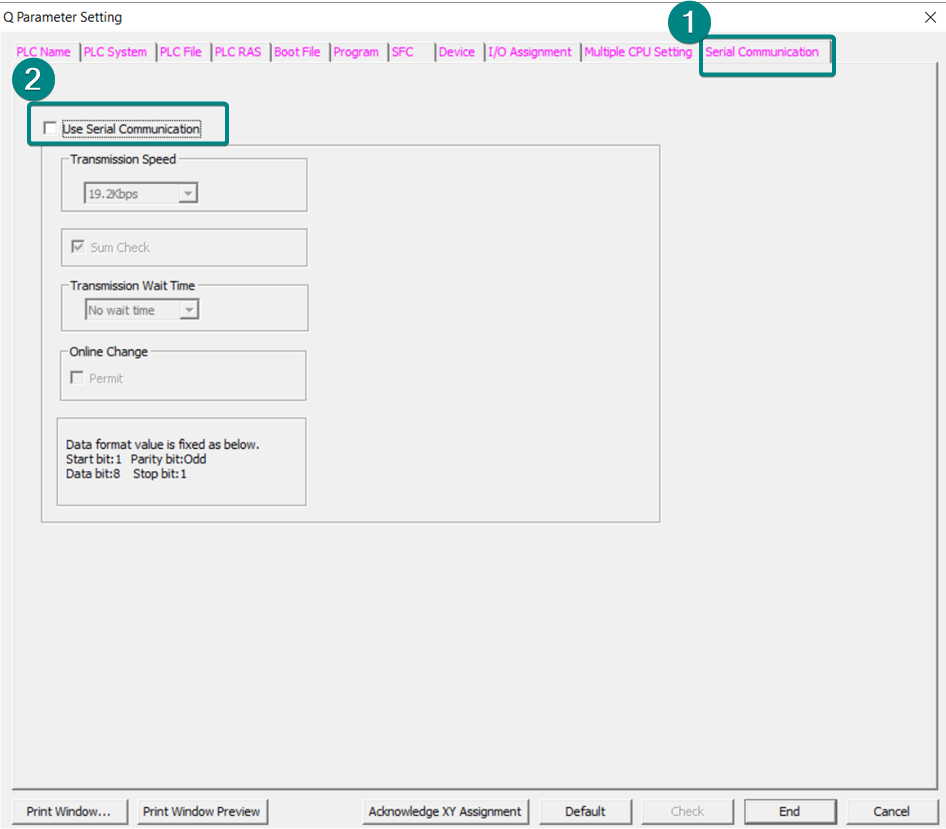

Communication Settings



Cable Wiring

image-20220831105542-2.png image-20220831105529-1.png

Pin Definition Diagram


L02 CPU MELSEC(Ethernet)

Mitsubishi Q series CPU built-in Ethernet port.

HMI Settings

ItemsSettingsNote
ProtocolMITSUBISHI L02 CPU MELSEC
ConnectionEthernet
Port No.1025Must be the same as the PLC setting
PLC station No.0Must be the same as the PLC setting

Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXX h0~FFFF
BitYYY h0~FFFF
BitMMM d0~9999
BitLLL d0~9999
BitFFF d0~9999
BitBBB h0~FFFF
BitVVV d0~2047
BitTCTCTC d0~9999
BitSSSSSS d0~9999
BitSCSCSC d0~9999
BitCSCSCS d0~9999
BitCCCCCC d0~9999
BitSBSBSB h0~FFFF
BitSMSMSM d0~2047
BitSTSSTSSTS d0~1023
BitSSS d0~9999
BitDXDXDX h0~FFFF
BitDYDYDY h0~FFFF
BitTSTSTS d0~9999
WordWWW h0~FFFF
WordTNTNTN d0~99999
WordSNSNSN d0~99999
WordCNCNCN d0~99999
WordRRR d0~99999
WordSWSWSW h0~FFFF
WordZZZ d0~99999
WordZRZRZR h0~FFFF
WordDDD d0~99999

Communication Settings

Enable HMI Ethernet in [Project Settings];

 12.PLC Protocol_html_43b671f18153910d.png

Set PLC IP in [Device IP] settings;

12.PLC Protocol_html_38189fae42f6caa7.png

PLC Settings (GX Works2 )

Create a project

Set PLC IP, subnet mask and gateway;

Select [Binary Code] as communication data code;


Set PLC port number, for example 1025

12.PLC Protocol_html_8d0d1a22d388f70b.png

Save settings;

Download project into PLC device;

Restart PLC device;

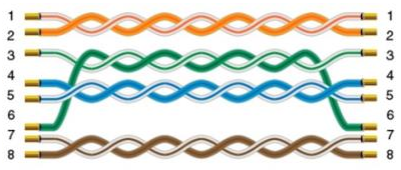

Cable Wiring

12.PLC Protocol_html_2297240b57346b2a.png

QJ71C24N MELSEC

Mitsubishi QJ71C24N communication module built-in serial port;

HMI Settings

ItemsSettingsNote
ProtocolMITSUBISHI QJ71 MELSEC
Connection422
Baud rate9600
Data bit8
ParityODD
Stop bit1
PLC station No.1~255Need to be the same as PLC settings

Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXX FFFF0~1FFF
YYY FFFF0~1FFF
MMM DDDDD0~99999
LLL DDDD0~8191
FFF DDDD0~2047
VVV DDDD0~2047
BBB FFFF0~1FFF
TSTSTS DDDD0~2047
TCTCTC DDDD0~2047
SSSSSS DDDD0~2047
SCSCSC DDDD0~2047
CSCSCS DDDD0~1023
CCCCCC DDDD0~1023
SBSBSB FFF0~7FF
SSS D0~8191
DXDXDX FFFF0~1FFF
DYDYDY FFFF0~1FFF
SM_SM_SM_ DDDD8000~9999
SMSMSM DDDD0~2047
WordSDSDSD DDDD0~2047
DDD DDDDD0~12287
WWW FFFF0~1FFF
TNTNTN DDDD0~2047
SNSNSN DDDD0~2047
CNCNCN DDDD0~1023
RRR DDDDD0~32767
SWSWSW FFF0~7FF
ZZZ D0~15
ZRZRZR FFFFF0~FE7FF

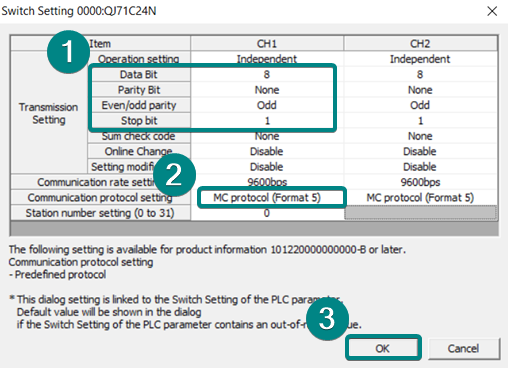

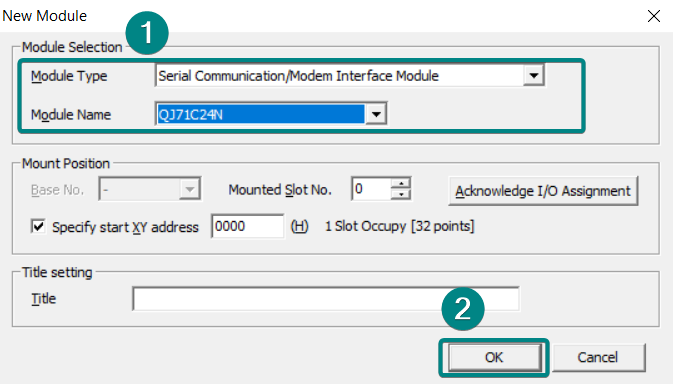

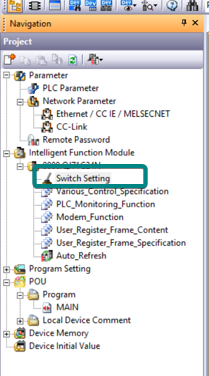

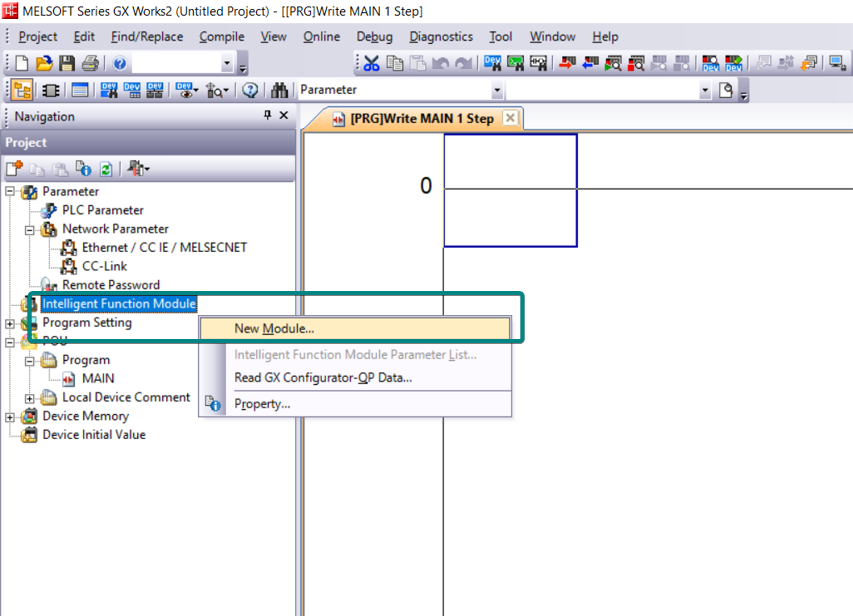

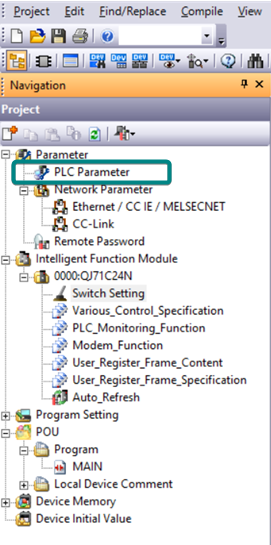

Communication Settings

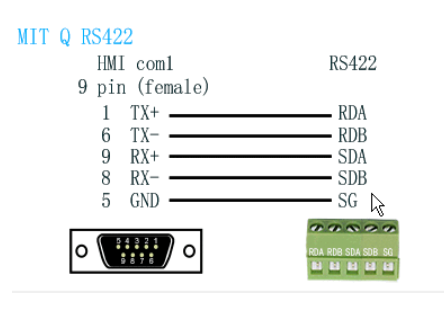

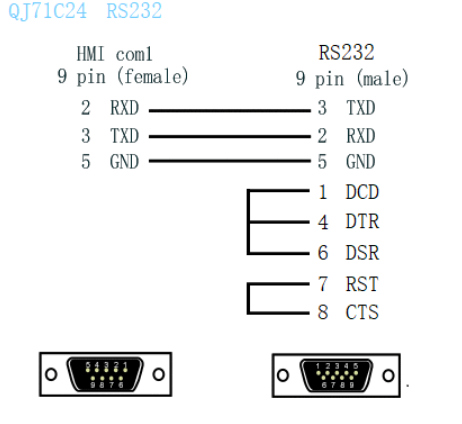

Pin Definition Diagram


QJ71E71 MELSEC

Mitsubishi QJ71E71 Ethernet communication module;

HMI Settings

ItemsSettingsNote
ProtocolMITSUBISHI QJ71E71 MELSEC
ConnectionEthernet
Port No.4999Must be the same as the PLC setting
PLC station No.0Must be the same as the PLC setting

Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXX h0~1FFF
YYY h0~1FFF
MMM d0~99999
LLL d0~8191
FFF d0~2047
BBB h0~1FFF
VVV d0~2047
TSTSTS d0~2047
TCTCTC d0~2047
SSSSSS d0~2047
SCSCSC d0~2047
CSCSCS d0~1023
CCCCCC d0~1023
SBSBSB h0~7FF
SSS d0~8191
DXDXDX h0~1FFF
DYDYDY h0~1FFF
SMSMSM d8000~9999
WordSDSDSD d0~2047
DDD d0~12287
WWW h0~1FFF
TNTNTN d0~2047
SNSNSN d0~2047
CNCNCN d0~1023
RRR d0~32767
SWSWSW h0~7FF
ZZZ d0~15
ZRZRZR h0~FE7FF

HMI Communication Settings

1) Enable HMI Ethernet in [Project Settings];

 12.PLC Protocol_html_43b671f18153910d.png

2) Set PLC IP in [Device IP] settings


PLC Settings(GX Works2)

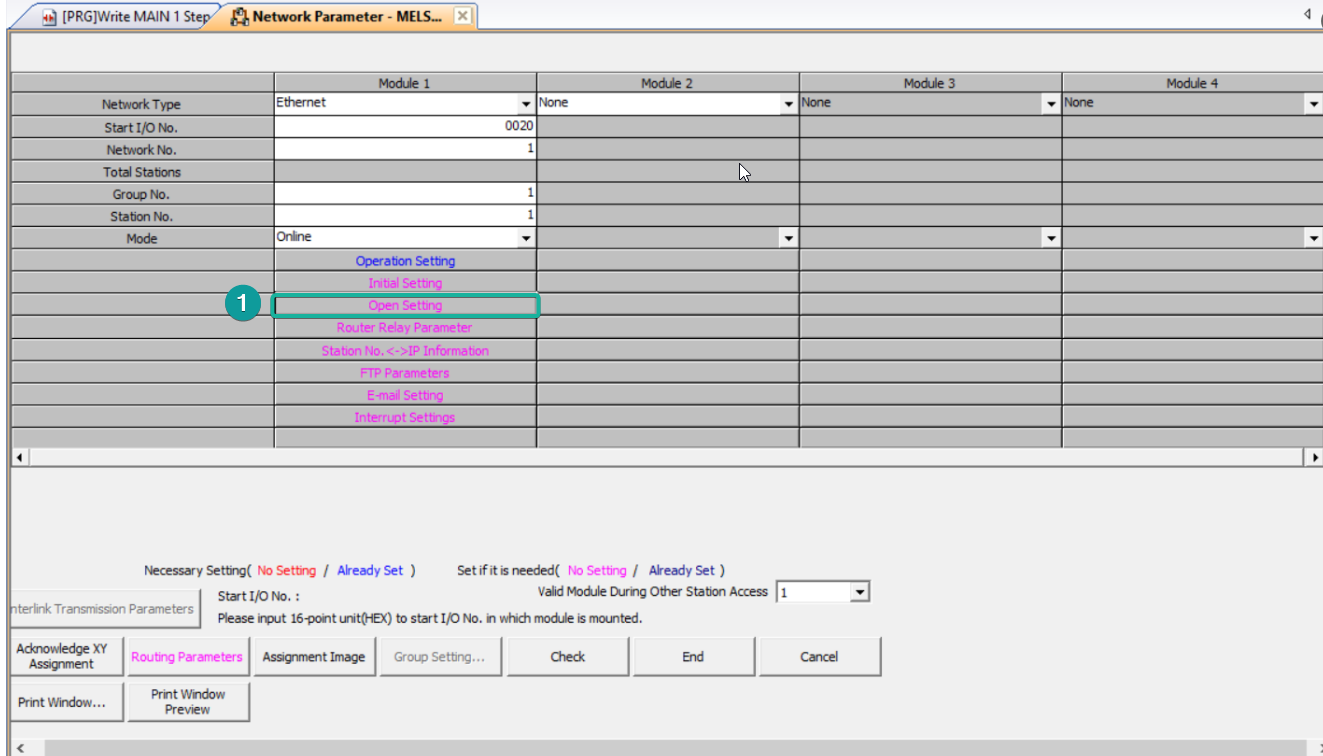

  • Click [Ethernet/CC IE/MELSECNET];
  • Please select [Ethernet] as network type;
  • Set station I/O number according to situation (For example, 0020 means that the module is connected to PLC CPU in first order);
  • Select [Online] as Mode;
  • image-20221119164958-2.png 12.PLC Protocol_html_acd084d845da380e.png

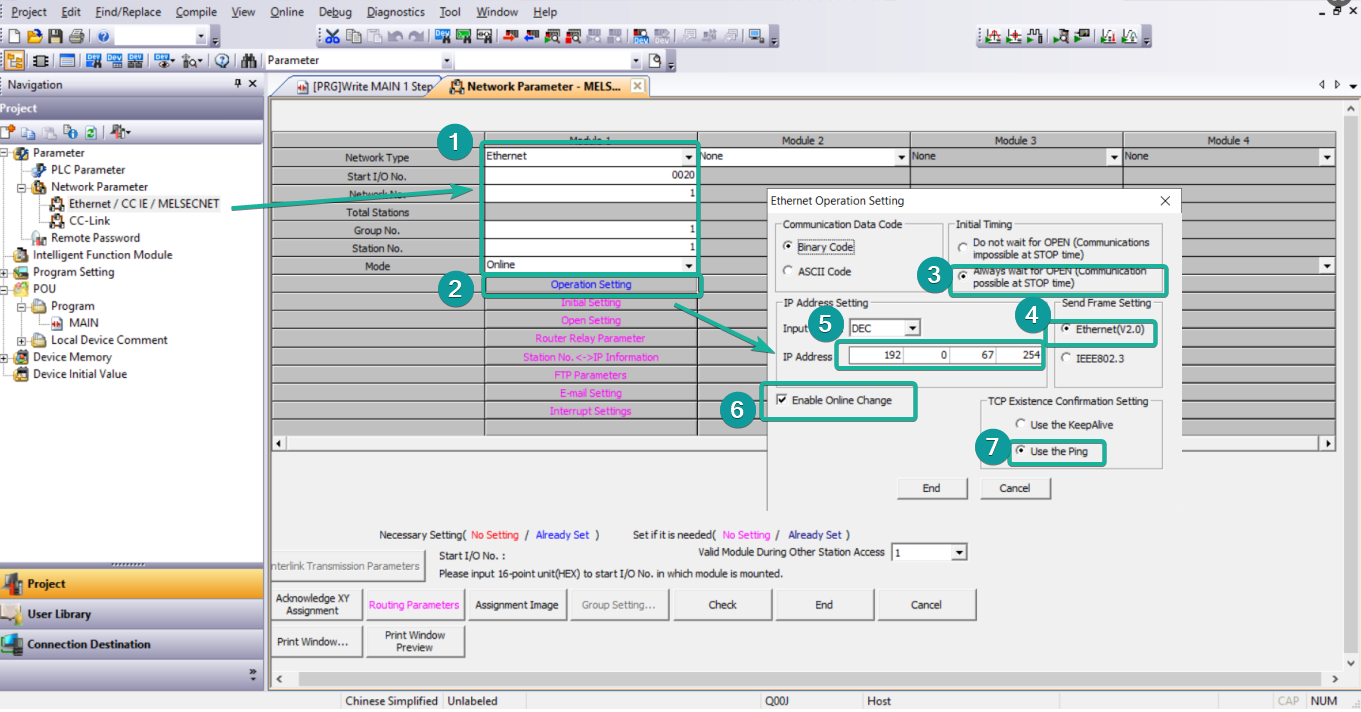

  • Click [Operation setting] to set IP;
  • Select [Binary Code] as [Communication Data Code];
  • image-20221119165129-3.png 12.PLC Protocol_html_a972e671d2bb9150.png

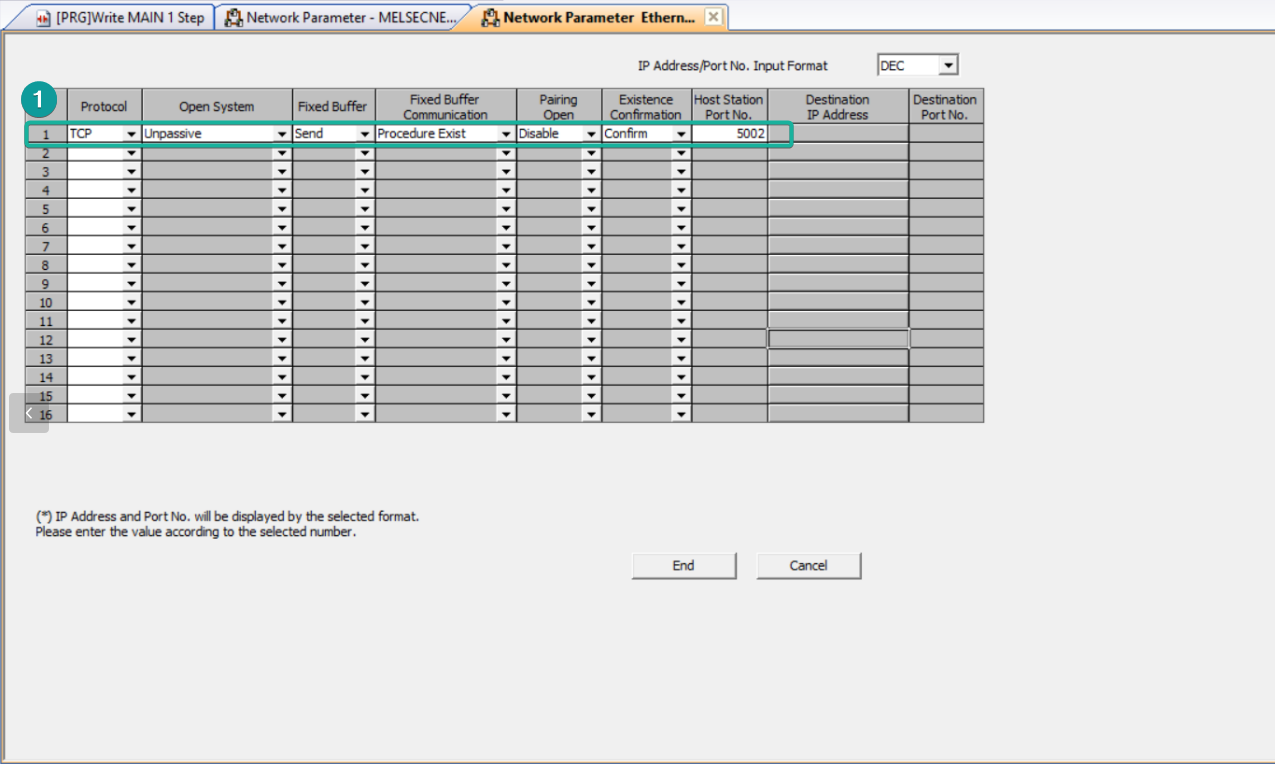

  • Click [Open setting]
  • Set protocol: TCP;
  • Set [unpassive] in [Open system];
  • Set [receive] in [Fixed buffer];
  • Set [procedure Exist] in [Fixed buffer communication];
  • Disable [Pairing open];
  • Set [No confirm] in [Existence confirmation];
  • Host station port number: 5009;
  • 12.PLC Protocol_html_f2c432006cdd2f9.png Save settings;
  • image-20221119165342-4.png
  • Download project into PLC and restart it

Cable Wiring

12.PLC Protocol_html_2297240b57346b2a.png

Q00 Series CPU

Mitsubishi Q00 series CPU communication module built-in serial port;

HMI Settings

ItemsSettingsNote
ProtocolMITSUBISHI Q00H CPU Port
Connection232
Baud rate9600
Data bit8
ParityODD
Stop bit1
PLC station No.1~255Need to be the same as PLC settings

 Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXX h0~ffff
YYY h0~ffff
MMM d0~9999
LLL d0~9999
FFF d0~9999
BBB h0~ffff
DbitDbitDbit d.h

d:0~65535

h:0~15


TSTSTS d0~9999
TCTCTC d0~9999
SSSSSS d0~9999
SCSCSC d0~9999
CSCSCS d0~9999
CCCCCC d0~9999
SBSBSB h0~ffff
SSS d0~9999
DXDXDX h0~ffff
DYDYDY h0~ffff
SMSMSM d0~2047
Word
DDD d0~99999
WWW h0~ffff
TNTNTN d0~99999
SNSNSN d0~99999
CNCNCN d0~99999
RRR d0~99999
SWSWSW h0~ffff
ZZZ d0~99999
ZRZRZR h0~ffff

 Communication Settings



PLC Settings(GX Works2)

Open[PLC Parameter],click [Serial Communication] then Check [Use Serial Communication] is uncheck.

✎Note: If you check the[Use Serial Communication] the communication method will be the same as QJ71


 Cable Wiring


Q00U Series CPU

Note: Waiting official release.

HMI Setting

ItemsSettingsNote
ProtocolMITSUBISHI Q00U CPU Port
Connection232
Baud rate9600
Data bit8
ParityODD
Stop bit1
PLC station No.1~255Need to be the same as PLC settings

 Address List

TypeDevice registersHMI registersFormatRangeNote
BitXXX h0~ffff
YYY h0~ffff
MMM d0~9999
LLL d0~9999
FFF d0~9999
BBB h0~ffff
DbitDbitDbit d.h

d:0~65535

h:0~15


TSTSTS d0~9999
TCTCTC d0~9999
SSSSSS d0~9999
SCSCSC d0~9999
CSCSCS d0~9999
CCCCCC d0~9999
SBSBSB h0~ffff
SSS d0~9999
DXDXDX h0~ffff
DYDYDY h0~ffff
SMSMSM d0~2047
Word
DDD d0~99999
WWW h0~ffff
TNTNTN d0~99999
SNSNSN d0~99999
CNCNCN d0~99999
RRR d0~99999
SWSWSW h0~ffff
ZZZ d0~99999
ZRZRZR h0~ffff

Communication Settings



 PLC Settings(GX Works2)

Open[PLC Parameter],click [Serial Communication] then Check [Use Serial Communication] is uncheck.


Cable Wiring
