Xinje

Version 10.2 by Hunter on 2023/08/24 18:14

XC MODBUS

HMI Settings

Address List

Type	Device registers	HMI registers	Format	Range
Bit	M	M	M d	0~8511
Bit	X	X	X o	0~1747
Bit	Y	Y	Y o	0~1747
Bit	S	S	S d	0~1023
Bit	T	T	T d	0~4095
Bit	C	C	C d	0~634
Word	D	D	D d	0~8511
Word	TD	TD	TD d	0~618
Word	CD	CD	CD d	0~634
Word	FD	FD	FD d	0~8511

Configure the communication protocol

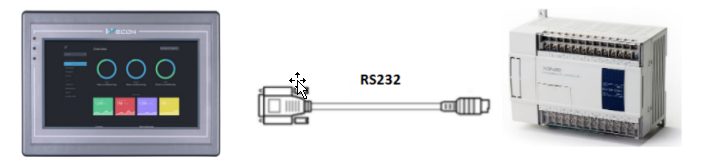

Cable Wiring

Figure

Pin Definition Diagram

HMI Settings

Supported Series: Xinjie XD/XE Series PLC

Address List

Type	Device registers	HMI registers	Format	Range
Bit	M	M	M d	0~74999
Bit	X1xx	X1xx	X1xx o	0~1177
Bit	X2xx	X2xx	X2xx o	0~277
Bit	X	X	X o	0~77
Bit	Y1xx	Y1xx	Y1xx o	0~1177
Bit	Y2xx	Y2xx	Y2xx o	0~277
Bit	Y	Y	Y o	0~4095
Bit	SM	SM	SM d	0~4999
Bit	T	T	T d	0~4999
Bit	C	C	C d	0~4999
Bit	ET	ET	ET d	0~31
Bit	SE	SE	SE d	0~31
Bit	HM	HM	HM d	0~11999
Bit	HSC	HSC	HSC d	0~39
Bit	HS	HS	HS d	0~999
Bit	HT	HT	HT d	0~1999
Bit	HC	HC	HC d	0~1999
Bit	S	S	S d	0~7999
Word	D	D	D d	0~69999
Word	ID	ID	ID d	0~99
Word	ID1xx	ID1xx	ID1xx d	0~999
Word	ID2xx	ID2xx	ID2xx d	0~299
Word	QD	QD	QD d	0~99
Word	QD1xx	QD1xx	QD1xx d	0~999
Word	QD2xx	QD2xx	QD2xx d	0~299
Word	SD	SD	SD d	0~4999
Word	TD	TD	TD d	0~575
Word	CD	CD	CD d	0~575
Word	ETD	ETD	ETD d	0~31
Word	HD	HD	HD d	0~24999
Word	HSD	HSD	HSD d	0~1023
Word	HTD	HTD	HTD d	0~95
Word	HCD	HCD	HCD d	0~95
Word	HSCD	HSCD	HSCD d	0~31
Word	FD	FD	FD d	0~8191
Word	SFD	SFD	SFD d	0~5999
Word	FS	FS	FS d	0~47

Configure the communication protocol

Cable Wiring

Pin Definition Diagram
