R Series

Product description

Product appearance

RE-00/RE-4G

RE-00/RE-4G Appearance

RE-00/RE-4G Installation Dimensions

RH-WF

RH-WF

Installation size

Product specifications

Appearance component description

RE-00/RE-4G

RE-00/RE-4G Component Description

RH-WF

RH-WF Component Description

Interface Description

RE-00/RE-4G

RH-WF

Interface Definition

RE-00/RE-4G COM1 interface definition

RH-WF

Pin		Definition
	S/S	Input mode selection terminal. Connecting to 24V+ indicates that it supports NPN input; Connecting to 24V- indicates that it supports PNP input.
	Xn	Switch quantity input terminal
	Yn	Switch quantity signal output terminal, relay output
	COM	Output common port
	485+	RS485+
	485-	RS485-
	GND	Ground

Applications

Basic application

R series products, which can easily realize advanced requirements such as real-time display on industrial sites.

① Large-screen display, connect computer/TV Display the project screen;

② Network port device, connect to network device such as slave computers, and download projects online through configuration software;

③ Serial port device, connect to the serial port device of the slave computer, and the project can also be downloaded online through the configuration software.

RH-WF and WS21

RH-WF supports local HDMI interface to connect to in-site screen like a TV screen to display the project. WS21, a touching screen, can be connected with RH-WF via HDMI interface. The project an be operated manually in WS21 screen.

HDMI Port is for displaying the project. And USB Port is for touching.

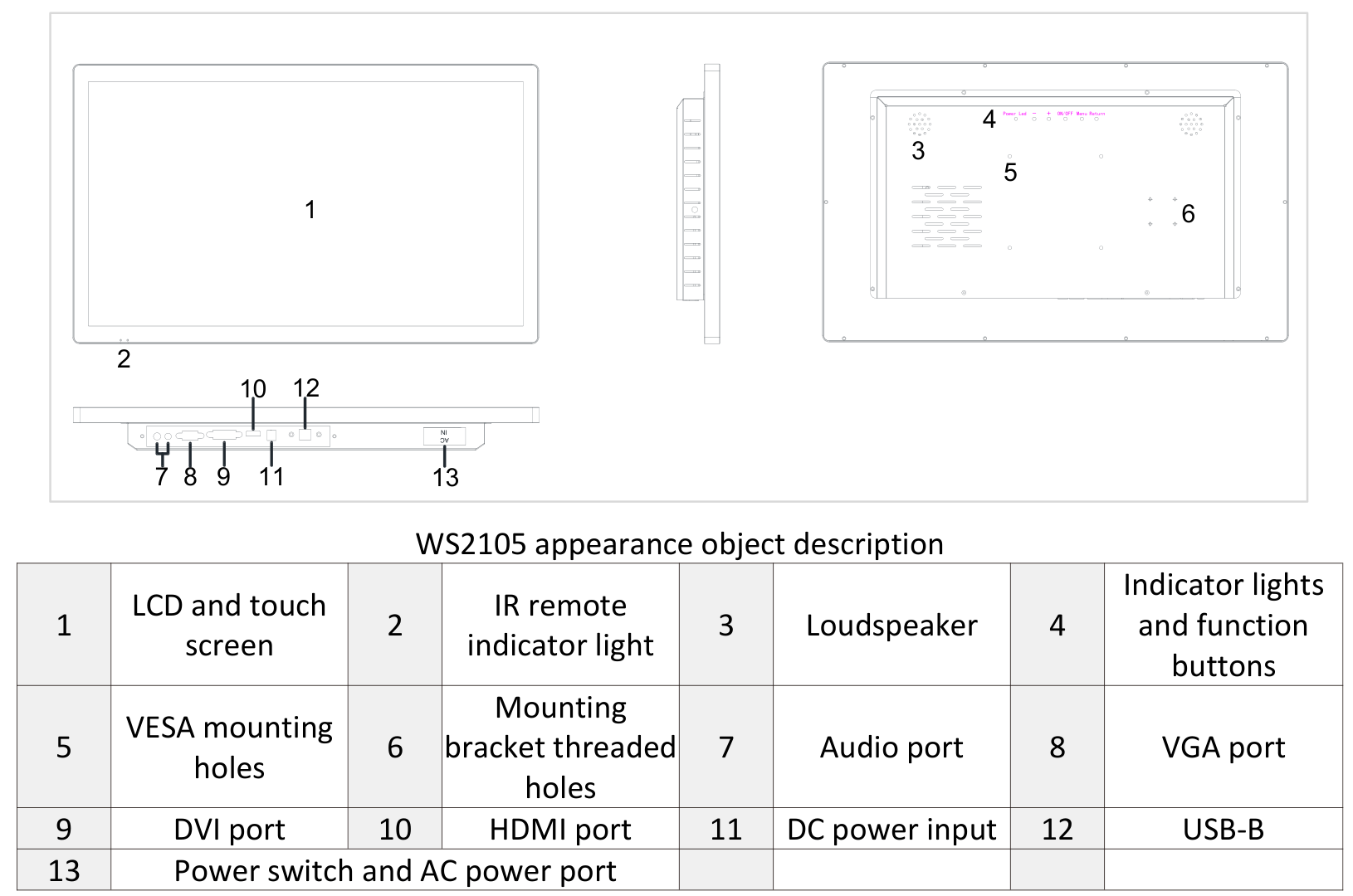

WS21 parameter

Demo video

Operation Instructions

Project Download-PIStudio

(1) New project

PIStudio→[Home]→[New Project]→[Project Properties], and set the project name and [HMI model] in step by step: RE, RH series, select the detailed HMI model → [Screen style]: use the default do not set→[Done].

(2) Enable cloud server

Configuration of V-NET IoT System

It needs to check "Enable Cloud" function in order to view "Remote Monitoring" screen in V-NET, and configure the functions of tags, data recording on the cloud, and alarm recording on the cloud.

Upload to the cloud: All configured tag information, historical information, and alarm information will be pushed to V-NET.

(3) Project compile/download

After the project is completed, click [Project Compile]→After prompting that the compilation is completed, click [Download Project]→device detected, [PC port]. Ethernet or USB download→[PC→HMI]→pop up a prompt, click [OK] → complete the configuration project download, it will take effect after restart.

Note: “Flash light" in the picture is the flashing light of the detection device; "Test network" in the figure refers to the network status of the test device.

Check V-NET IoT System

V-NET login

(1) New users must register first, and after the registration is successful, the user can use it.

● A successfully registered account is an administrator account, which can bind the device and support other operations.

● Users need to remember the registered account and password, and can log in simultaneously on the PC/APP.

(2) Enter the account and password, and then click the [Log in] button.

(3) After admin account logs in to the platform, it will jump to the homepage by default, as shown in the figure below.

Adding devices

(1) After successfully logging in, enter the [Device Management] interface, and add the device information to be accessed through the “+” button in the bar.

(2) After the [Add Device] window pops up, enter the device machine code and password, etc., and add the device. Other instructions are as follows:

① Device machine code: Each device has a unique and independent machine code for remote monitoring device identification.

Obtain machine code:

● HMI PIStudio-[Tool]-[Download project]-Machine code.

● Scan the QR code of the device to obtain the machine code.

② Device password: Refers to the cloud access password, the default is 888888. The initial binding device password: see Cloud Configuration.

③ Device alias: Refers to the name recognition of the device in the menu bar of V-NET.

 (3) Binding device is successful, click OK, prompt: Bind device successful!

V-NET check

(1) Remote monitoring

The remote monitoring module can display the current screen in real time, and realize the operation of the project on the web page, realize the remote monitoring of the device and the control of the screen.

(2) Data viewing

Data view has six modules, including Communication port, Collection point, Alarm configuration, Alarm record, Historical configuration, Historical data record.

The specific parameter is as follows:

① Communication port: The communication port information, connection mode and protocol name configured on HMI. It can only be viewed, and cannot be added or modified. The information comes from what is set on HMI.

② Collection point: Data monitoring module. The collection point is the tag, and its read-write, write-only, and read-only permissions also come from the tags set in PIStudio. (Note: Tags cannot be added or removed here.)

③ Alarm message: For the alarm record of the device, tags cannot be added. Operations such as confirming the alarm record and exporting data can be performed.

④ Historical information: The historical data of the device cannot add tag, supports curve and list viewing, and supports export historical data and other operations.

 (3) Cloud configuration

The cloud SCADA platform is mainly used to display the monitoring/operation interface of the bound device in the V-NET.

  The main functions of Cloud SCADA interface in device management are as follows:

 Refresh the current Cloud SCADA project.

 Browse the current Cloud SCADA project in full screen (Press “Esc” exit).

 Switch the bound Cloud SCADA projects (The cloud SCADA projects bound in current device and cross-device).

  Edit the current cloud SCADA (jump to the Cloud SCADA edit page)

(4) Basic information

Include: "Basic information, status push, register information, version information" for the device.

●Device name: Mainly used to distinguish various devices.

●Online status: Use the refresh function to refresh the online status of the device.

●Machine code: Each device has a unique and independent machine code.

●Map Information: The latitude and longitude information of the device, click “Location” to view the geographical location and modify the location information.

●Located with:

① Use device base station positioning.

②Use manual positioning.

Note: After modifying the basic information of the device, you need to click Save below to save successfully. If the save is not successful, please click Force Sync.

Pass-through of device

Note: The pass-through operation steps of V-NET/V-IEC are for reference only.

Pass-through function: The pass-through function allows applications on the computer to increase maintenance value through RE devices, remote pass-through devices, download projects, etc.

Device status description table is as follows:

Color	Color Value (HEX)	Status	Description
	#18E600	Online	Pass-through available
	#B5C1D8	Offline	Pass-through is not allowed
	#1C9BFD	Pass-through connecting	In pass-through
	#005CFF	VPN connecting	In pass-through
	#FD8B09	VPN pass-through is reconnecting	Pass-through reconnecting due to network and other reasons
	#2C405E	VPN pass-through is ending	The end of pass-through due to [End pass-through]
	#109A00	Download is ready.	Download channel is ready. (Download can be executed.)
	#009577	Download	In download

Pass-through precautions:

● The web cannot use the pass-through function for the time being, and it needs to be in the PC client to change the location.

● When the device is offline, “Start pass-through” cannot be clicked.

● When the device firmware version is too low, “Start pass-through” cannot be clicked.

● The current user does not have pass-through rights on this device or this device is shared by others, and “Start pass-through” cannot be clicked.

● When the current user has a device in pass-through, “Start pass-through” cannot be clicked.

Device pass-through download (RE)

The pass-through function allows applications on the computer to download projects to RE device remotely pass-through through Ethernet.

Steps:

① Click  to enter the pass-through interface.

② Select the device that needs pass-through, and ensure that the device is online.

③ Click "Browse" to automatically detect the installed download tools on this machine. The table shows the versions and locations of all installed download tools. (HMI software should be installed in the computer to ensure that HMIEditor and download tools exist at the same time).

④ Select any HMI download tool configuration in the table, and confirm the selected HMIEditor software through the folder location and corresponding version information.

⑤ Pass-through is ready → [Start pass-through].

●Click "Start pass-through" to conduct pass-through according to the specified download tools and selected devices.

●Click [End pass-through] to end pass-through.

⑥ After pass-through is successful, pop up the download tool box, select [PC->HMI], select the compiled .wmt3 file, and download the program.

Common serial port pass-through (PLC)

Based on the normal communication between RE device and PLC or other device, PLC is connected according to the generated virtual serial port, allowing the PLC software on the computer to communicate and connect with the PLC, and completing the functions of uploading/downloading PLC programs and monitoring PLC programs.

Steps:

① Virtual serial port settings: Click [Settings] →[Virtual Serial Port]→[Enable Virtual Serial Port] →[Select Serial Port]. Pay attention to the serial port, please do not reuse it. (When the COM port is changed, if a PLC or other software is connecting to the original COM port, it will be disconnected.)

② Remote download configuration: Click [PLC pass-through ] →Select the device that requires pass-through→[New/Edit]→[New Template] Configure pass-through parameters: [Name], [Communication Port], [Connection Method], [Baud Rate], [Stop Bit], [Data Bit], [Check Bit], the configured parameters need to be consistent with the PLC serial port parameters →[OK]→Prompt "Add successfully!"→[OK].

③ Pass-through steps: On the pass-through interface, click [Start pass-through]→after successful pass-through, it will prompt "pass-through succeeded"→[OK].

④ After the pass-through is successful, the indicator light of the corresponding RE device on the PC will turn blue, and the [current status] will become pass-through, indicating that the device is in the "pass-through" status.

✎Note: Do not click [End pass-through], otherwise you will exit the pass-through function.

⑤End pass-through: When the PLC software completes the remote operation, select [End pass-through]→Prompt "End pass-through successfully"→[OK], at this time the device will automatically restart. After the restart is completed, the working status before pass-through will be restored.

Pass-through Precautions:

① In the process of PLC software remote access, the pass-through serial port of the RE device needs to maintain a normal communication state, and the network state needs to remain stable.

② When the device is in the pass-through, COM indicator light will be in the off status. When the device ends the pass-through, it will automatically restart.

③ The parameters of the PLC connection need to be consistent with the parameters generated by the virtual serial port.

④ It is necessary to ensure that the PLC serial port of pass-through can support the upload/download function, otherwise the remote pass-through function cannot be realized.

VPN pass-through (PLC)

VPN pass-through: The pass-through function allows the application program on the computer to directly control the PLC device through the RE device, upload/download PLC programs, monitor PLC programs or other configuration information, etc.

Steps:

① Click [VPN pass-through] →Select the device that requires pass-through →[Local pass-through IP]→[Automatic acquisition/manual setting]→[Manual setting] 192.168.40.23 (Manual IP setting needs to ensure that it is on the same network segment as the RE device and device IP)→[Start pass-through]→Prompt "Pass-through succeeded"→[OK].

② After pass-through is successful, the indicator light of the corresponding RE device on the PC will turn yellow, and [current status] will become in the VPN pass-through, indicating that the device is in the "pass-through" status. (Note: You cannot click [End pass-through], otherwise you will exit the pass-through.)

③ After the pass-through is successful, a virtual network card will be generated. You can check whether the IP is generated through the network card of the computer, as shown below.

④ When PLC software completes the remote operation, select [End pass-through]→Prompt "End VPN pass through successfully"→[OK], at this time the device will automatically restart, and after the restart is completed, the working status before pass-through will be restored.

Pass-through precautions:

① The Ethernet port IP of RE device, the IP used by the VPN pass-through, and the IP of the PLC must be kept in the same network segment without conflict.

② The IP connected to the PLC needs to be consistent with the IP of the PLC itself.

③ When the device ends the pass-through function, RE device will automatically restart.

④ If the VPN pass-through is unsuccessful, please refer to the "Frequently Asked Questions of Wecon VPN pass-through Tools" for troubleshooting.

The file path is as follows:

https://www.we-con.com.cn/uploads/image/20210811/611392100b634.pdf

Resumable upload

3000ig/8000ig HMI and RE/RH,E/H V-BOX can support  a function for resumable upload. The function is to save lost data when the device is offline and upload lost data to Cloud when the device is online again.

The following table shows the maximum number of the resumable data and the biggest file size of the resumable data:

Remote Background

R series box doesn’t have the actual screen, so a new remote page is designed for background setting if user want to change some background parameters.

Enter remote background

Keep R series/HMI and pc in the same Lan. Input "IP:9091" in pc webpage.

There will be a User login screen and input Account and Password.

Modify account and password

Project Settings → Security→ LAN Monitoring Security→ OK → Compile and Download the project

Centralized Monitor

In HMI V3.0 version, there will be a Device management tool for centralized monitoring Local and Cloud device. When HMIs and PC are in the same LAN, they can be selected for centralized monitor.

Local Device

Download → choose monitored HMIs

Cloud Device

Cloud Linker →log in → select the server in configuration→ log in V-net Client account

After logging in the account, select monitored HMIs.

In Centralized monitor screen, selected HMI project will be display here. What's more, these projects can be operated in the screen.
