How to add comment and statement?

Last modified by Leo Wei on 2022/06/08 04:57

1. Comment

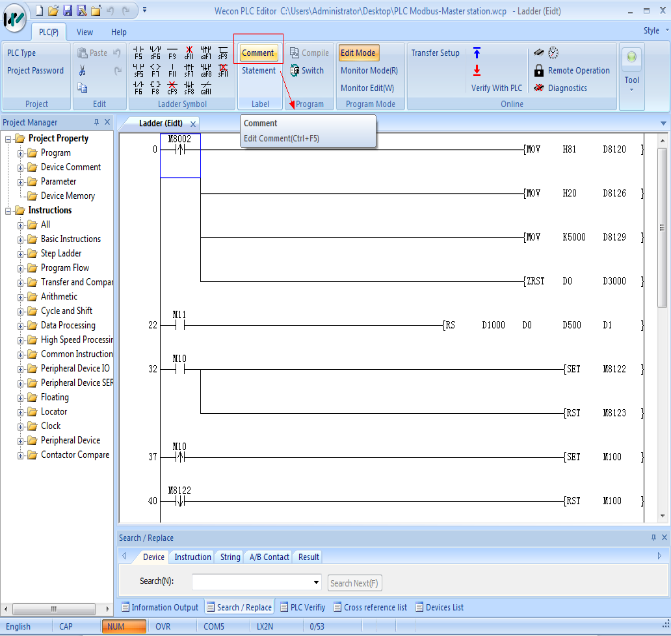

Open a existing PLC project, click the tag in following red box.

How to add comment and statement_html_d404a74f0d128ca6.png

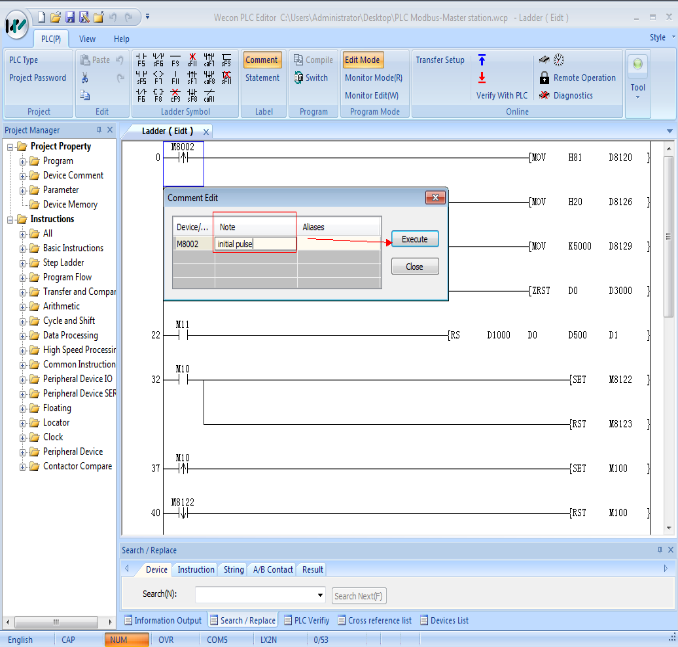

Then double click on the any instruction you like to add comment.

How to add comment and statement_html_9b97035b663ec3f4.png

2.Statement

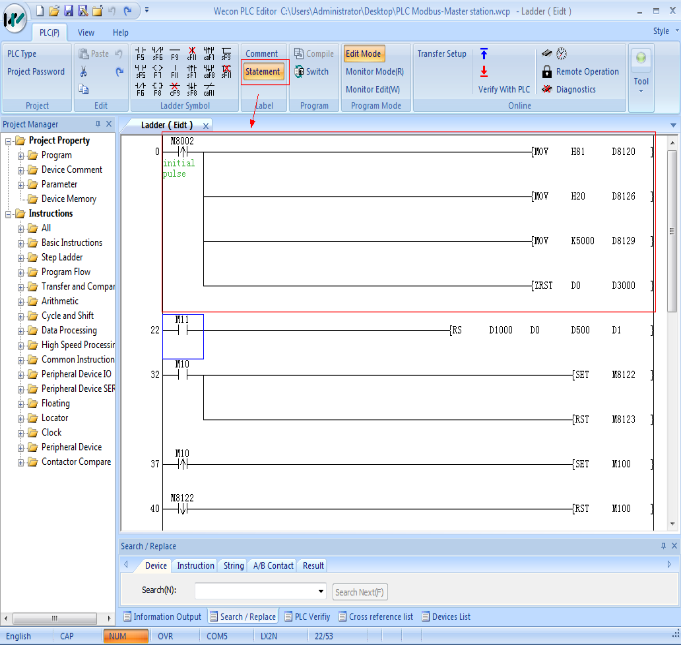

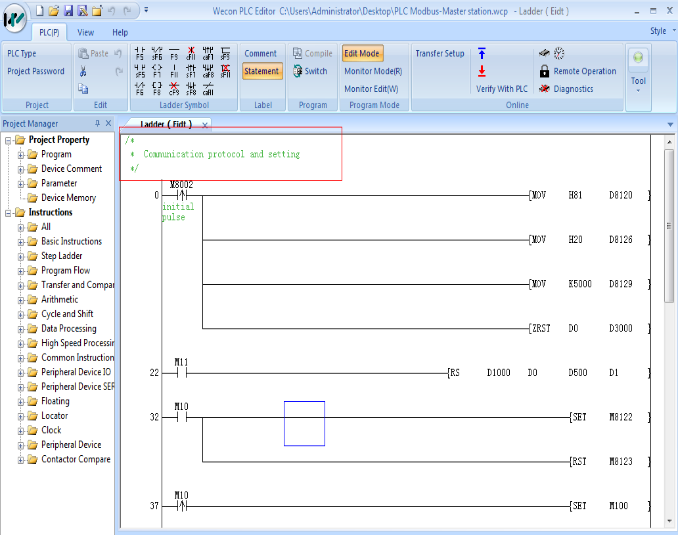

Click the tag “Statement” and double click the instruction block to add statement

How to add comment and statement_html_d81916d26008092f.png

How to add comment and statement_html_942791f3a0675c1d.png
