LX1V
Model
LX1V Model | I/O | Output Type | Dimension (mm) | Pulse Counter | Pulse Output | RS485 | BD Board | Module | Power Supply |
---|---|---|---|---|---|---|---|---|---|
LX1V-0806MR-D | 08/06 | Relay | 114*107*50 | 2 | 0 | 2 | Optional | N/A | DC 24V |
LX1V-1208MR-D | 12/08 | Relay | 114*107*50 | 2 | 0 | 2 | Optional | N/A | DC 24V |
LX1V-1212MR-D | 12/12 | Relay | 114*107*50 | 2 | 0 | 2 | Optional | N/A | DC 24V |
These models can be equipped with corresponding BD boards according to the needs of the customers.Then the name of model will be like LX1V-1212MR2PT2DAV
Software
LX1V PLC model is available in PLC Editor2 V2.3.247 or above

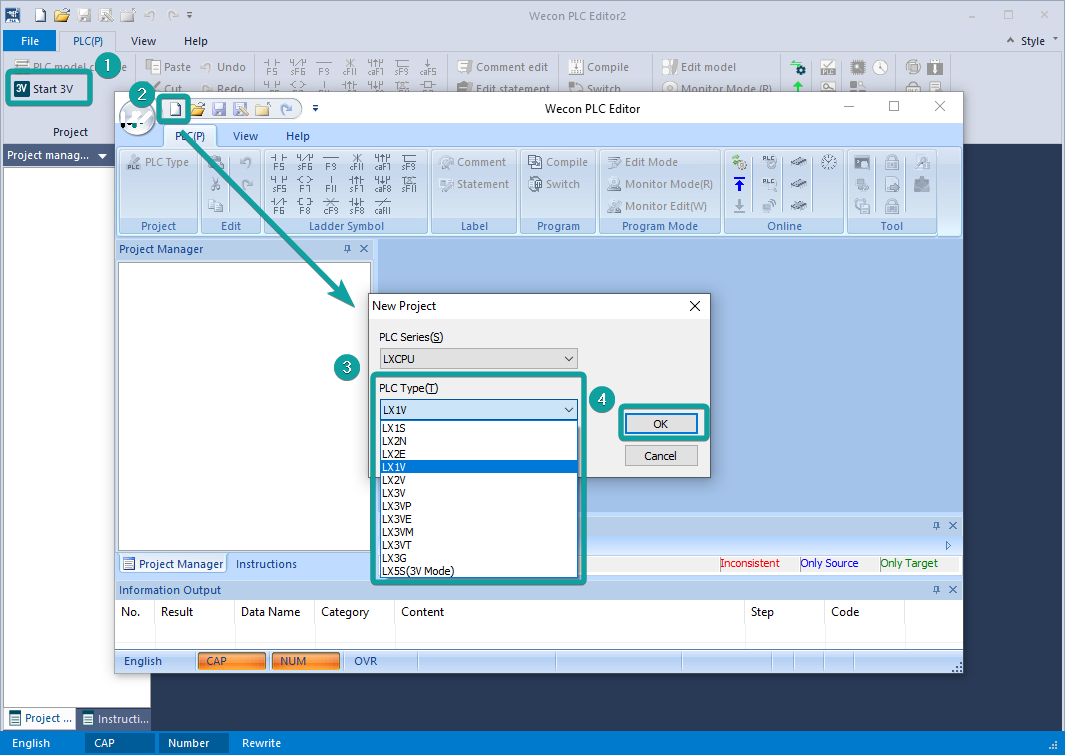

Create a new project :
Communication
1) COM1/COM2 only support RS485
2) COM1 (Port): only supports dedicated protocol, serial port parameters (baud rate, data bits, parity bits, stop bits, etc.), where the baud rate can be modified, while other parameters cannot be modified. The baud rate is set through the system's special address D8110.
3) COM2 (Port):supports PLC protocol,MODBUS protocol (MODBUS RTU Master/Slave;MODBUS ASCII Master/Slave).
The protocol setting of COM2 is set through the system's special address D8126,and the communication parameters is set through the system's special address D8120. Please refer to Communication
Note
If you want to communicate LX1V PLC with WECON HMI, you can use WECON LX3V protocol or MODBUS RTU protocol。
WECON LX3V protocol: LX3 Series
MODBUS RTU protocol: MODBUS RTU Master;MODBUS RTU Slave (All function)/(All function OneBaseAddress)
Hardware
Functions | 1V | 3V |
---|---|---|
Running Mode | Cyclic scan /Interrupt | |
Power supply | D:DC 24V | A:AC 220V;D:DC 24V |
Output type | MR:Relay;MT:Transistor(coming soon) | MT:Transistor;MR:Relay |
Input Wiring | NPN | PNP;NPN |
Output Wiring | NPN | NPN |
I/O | 0806;1208;1212 | 0806;1208;1212;1412; 1616;2416;2424;3624; |
Programming | Ladder | |
Execute Time | Basic 0.06μs/Applied instruction:1-10us | |
Program Capacity | 16k | |
High Speed Pulse Output | N/A | MT/2H: 2*100KHZ, or 4H: 4*100, single: 200kHZ |
High speed counter Interrupt | 6 channels | |
Timer Interrupt | 3 channels | |
External Interrupt | X0-X5 Rising & Falling | |
High speed counter Single Phase | Hardware counter for the first two channels:2*200KHz; Software counter for the first two channels:2*100KHz; Software counter for back four channels:4*10KHz | |
High speed counter AB phase | Hardware counter for the first two channels:2*100KHz; Software counter for the first two channels:2*50KHz; Software counter for back four channels:4*5KHz | |
Storage Type | FLASH | |
Serial Communication | COM1: RS485;COM2: RS485 | 1208 and smaller: COM1: RS422;COM2: RS485; 1212 and bigger: COM1: RS422 or RS485;COM2: RS485 |
USB port | TYPE-C | Micro USB |
BD board support | yes (Only support to customize built-in 4-channels BD board ) | yes |
Communication BD board | N/A | RS485 BD support, 3vp supports ethernet bd board |
Expansion Module | N/A | yes (1212 and bigger can support) |
RTC | N/A | yes |
Electronic CAM | N/A | N/A |
S-type CAM | N/A | N/A |
PLClink | N/A | N/A |
Linear Interpolation | N/A | N/A |
Circular Interpolation | N/A | N/A |
sub-routine | N/A | N/A |
Terminal
Pin | LX1V Series |
---|---|
24V+/24V- | 24V DC Input |
X0-Xn | External input terminal |
Yo-Yn、Cn | Output terminal,Group number |
The arrangement of terminal for LX1V series
The terminal arrangement of the LX1V series basic unit is shown in the figure below.
Wiring
LX1V only supports NPN wiring
