05 Wiring

Last modified by Iris on 2026/08/22 16:45

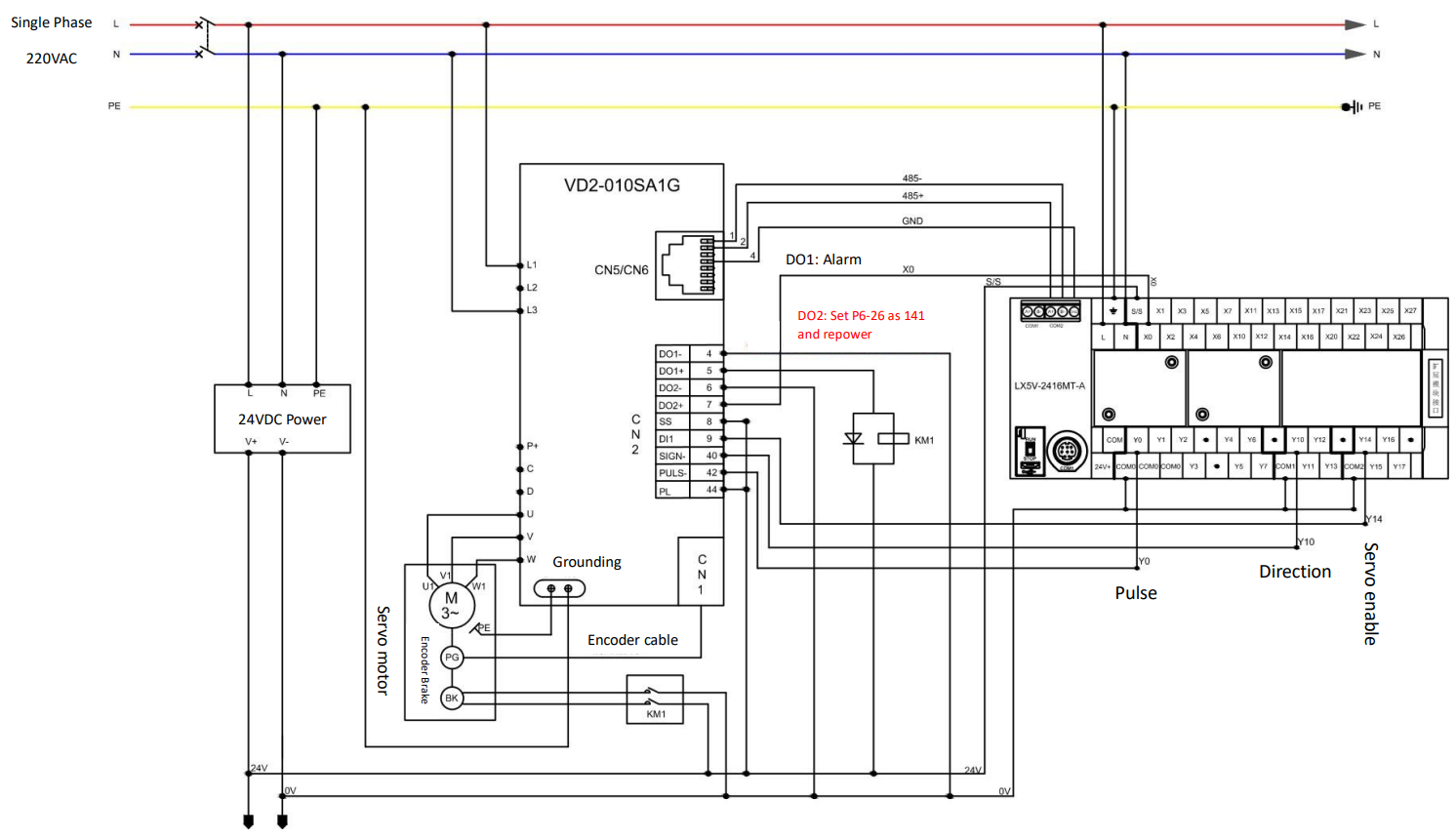

VD2A Position Mode Wiring

VD2A_POSITION_WITH BRAKE.png

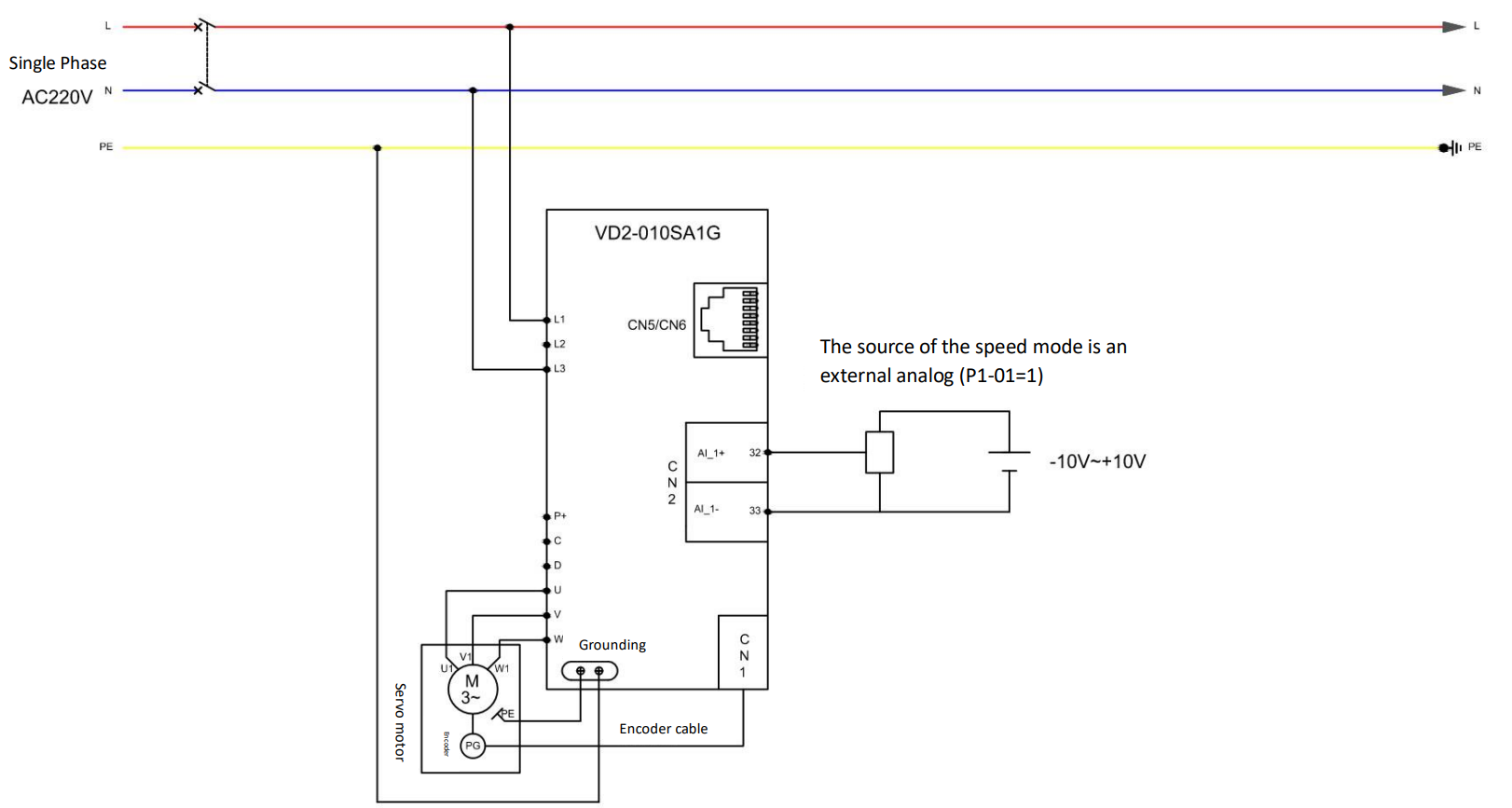

VD2A Speed Mode Wiring


VD2A Torque Mode Wiring

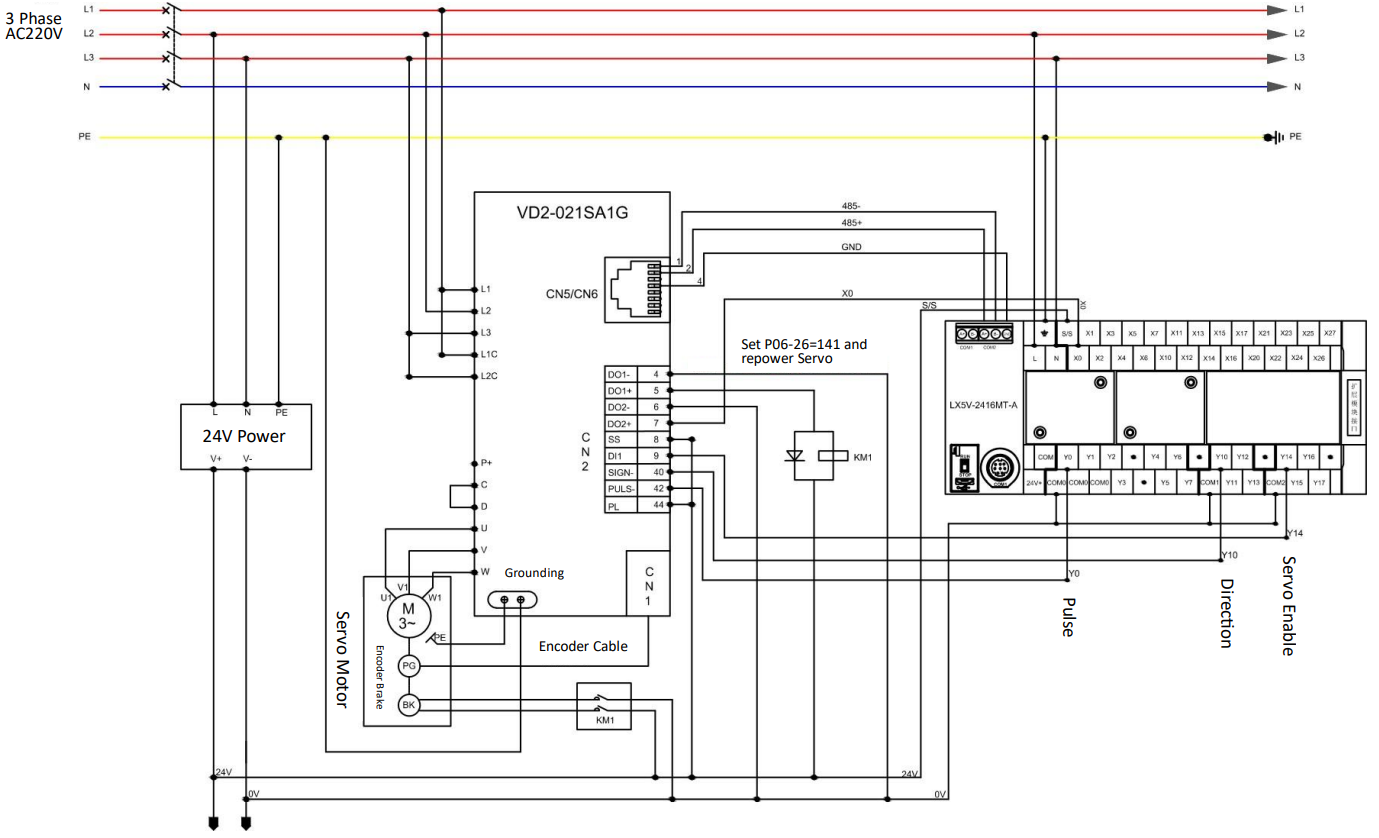

VD2B Position Mode Wiring

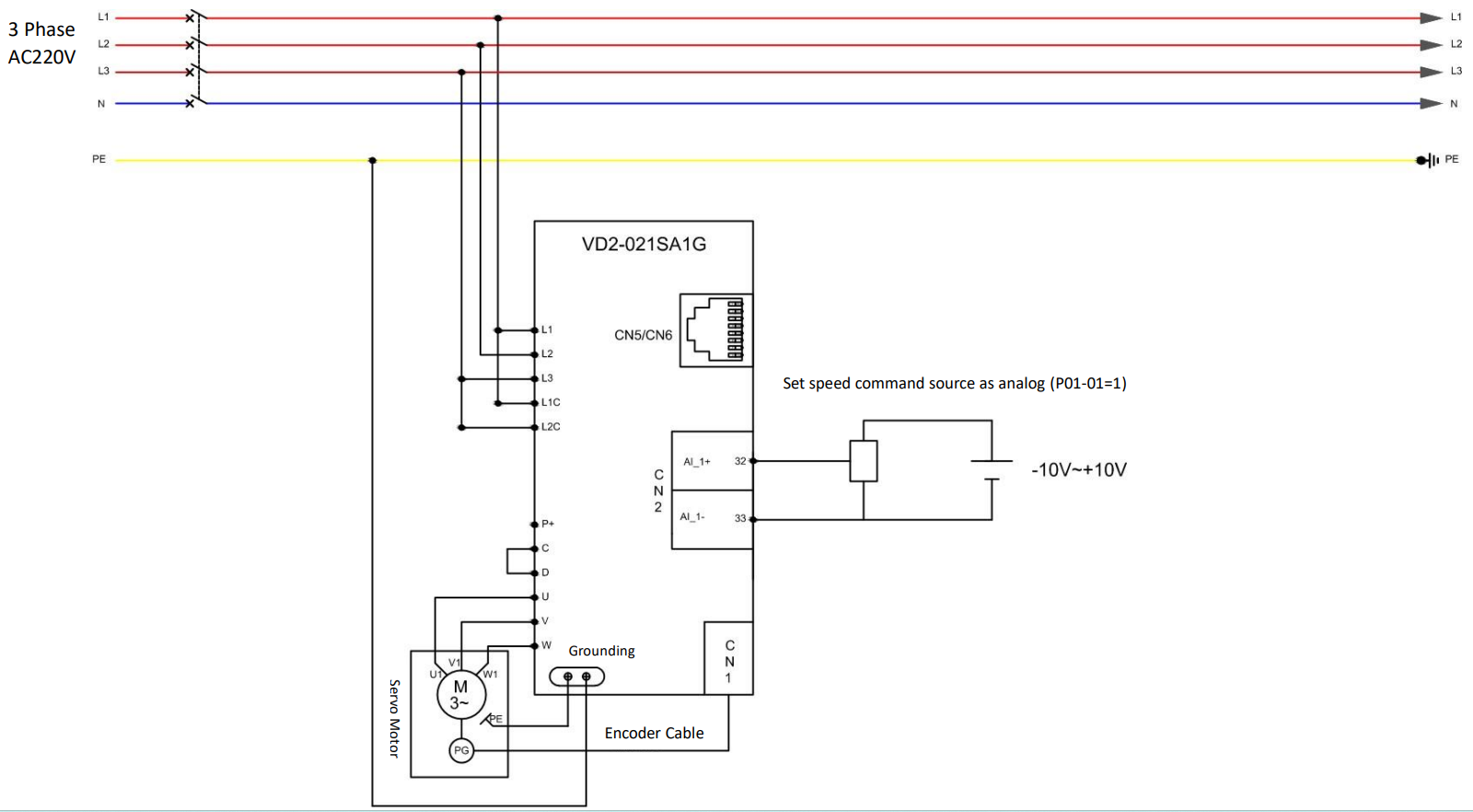

VD2B_POSITION.pngVD2B Speed Mode Wiring

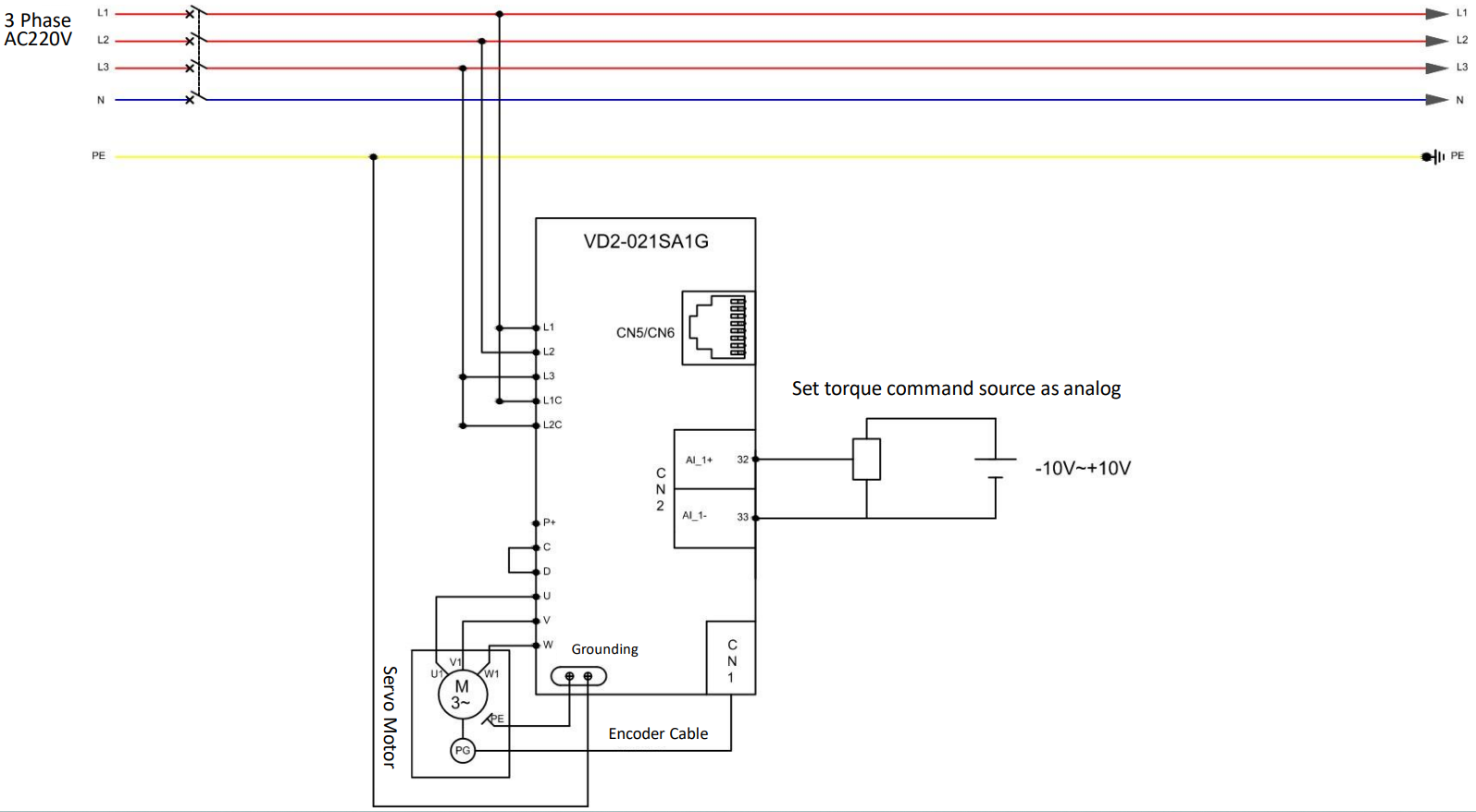

VD2B Torque Mode WiringVD2B_TORQUE.png

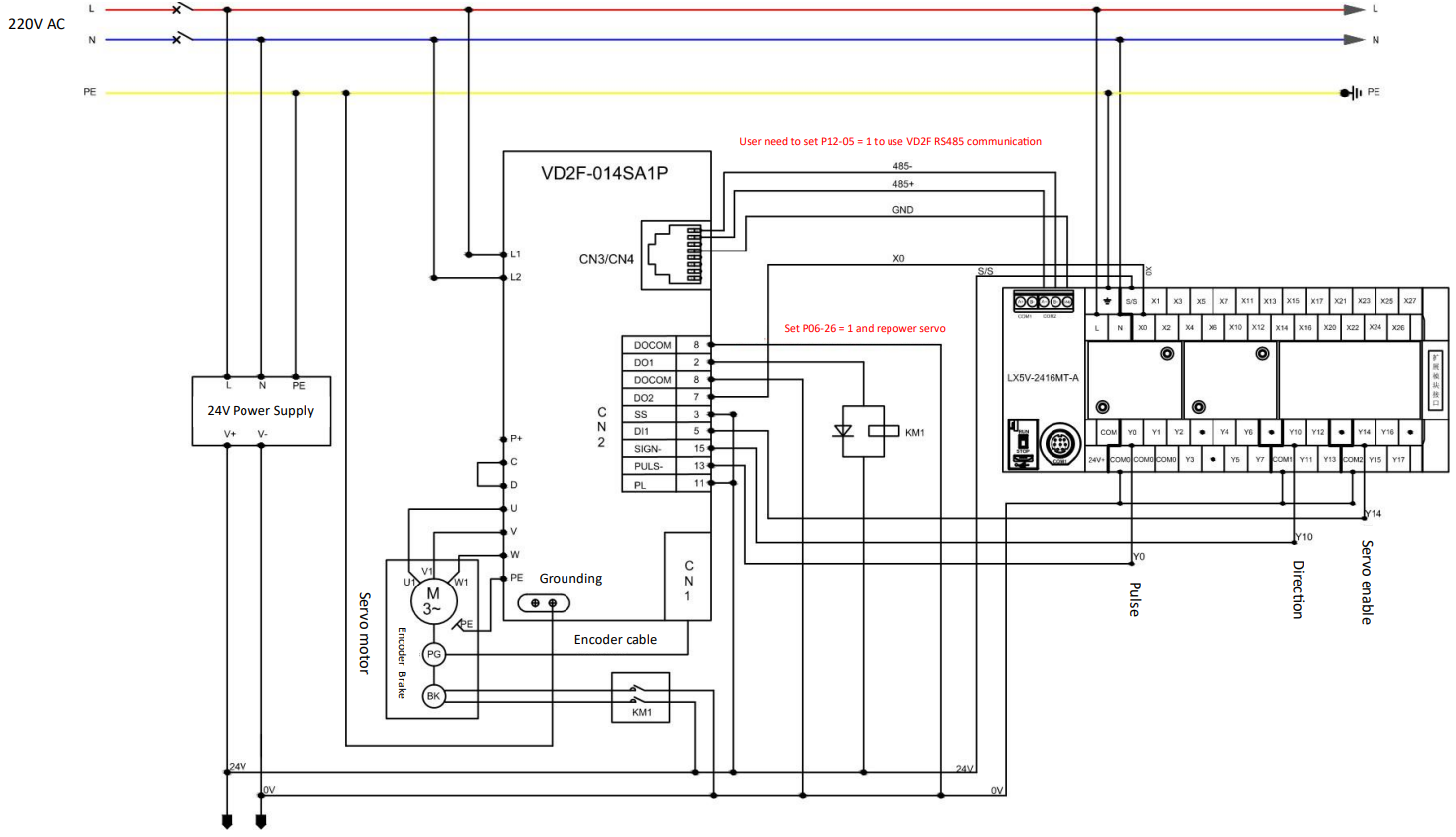

VD2F Position Mode Wiring


Digital Output Wiring

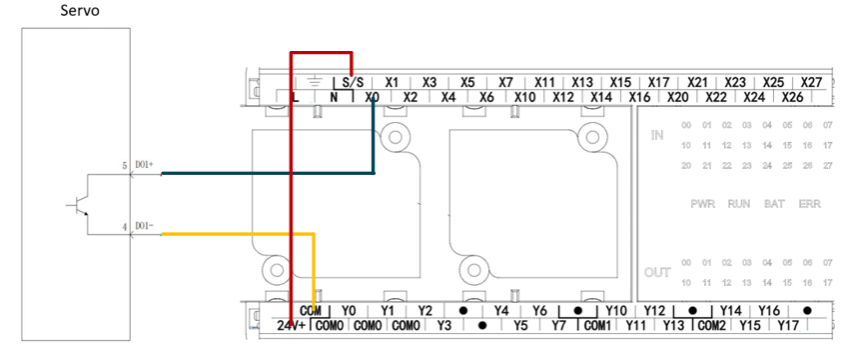

NPN wiring

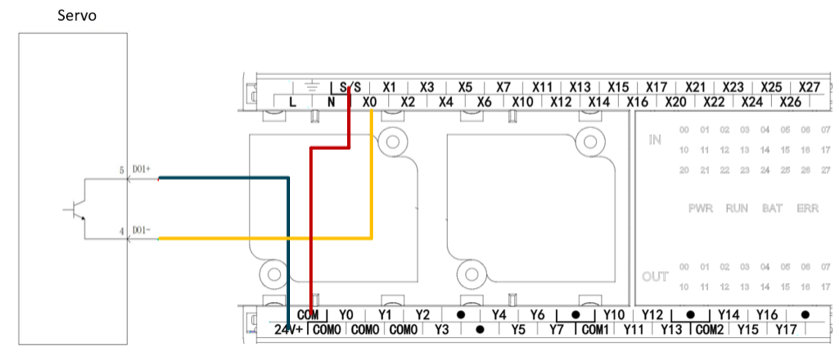

PNP wiring
