What's the screw terminal block connector specifications for V-box?
Last modified by Wecon on 2025/09/03 21:04
H Series
1. Power terminal: 3 Pin 5.08mm Pitch
2. IO terminal: 6 Pin 3.81mm Pitch
3. RS485 terminal: 5 Pin 3.81mm Pitch
2. IO terminal: 6 Pin 3.81mm Pitch
3. RS485 terminal: 5 Pin 3.81mm Pitch

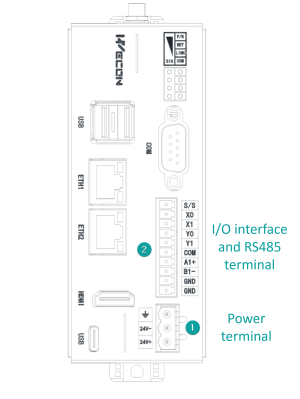

RH Series
1. Power terminal: 3 Pin 5.08mm Pitch
2. I/O interface and RS485 terminal: 10 pin 3.5mm Pitch
2. I/O interface and RS485 terminal: 10 pin 3.5mm Pitch
