This chapter provides information about basic functions and configuration in PIStudio.

Alarm

Bit alarm

Click "Project"→"Bit Alarm", it is displayed as the following figure.

位报警 1.png

Group No.: Group number of Bit alarm. The name is unique and cannot be duplicated.

Bit Address: Bit address of alarm monitoring

  • Record bit alarm by default:  Whether to record the alarm history data of bit alarm, if checked, it will be saved in the designated storage location.
  • Not save alarm OFF: If checked, after the alarm is dismissed, the corresponding alarm records will be deleted from the log file.

Upload to Cloud: The data upload by "bit alarm" is stored in the Cloud and it is alarm data. (Only ig series and 8000/9000 series with -R after system upgrade are supported)

✎Note:

  • After enable the Cloud and check the box of Upload to Cloud, the communication port settings of the address in the imported Bit Alarm record configuration must be the same as the communication port settings of the current project, otherwise it cannot be used normally.
  • The number of Alarm records upload to Cloud shall not exceed the limit value, or the sum of the imported alarm records and the number of existing alarm records shall not exceed the limit value. the specific limitation as following table:
SeriesNumber of Alarm upload to Cloud
8000-R200
9000-R200
3000ig20
8000ig200
MD20

Alarm Condition: It sets alarm trigger condition, there are two types: alarm when ON and alarm when OFF.

Alert: It is used to mark whether the alarm has occurred. if an alarm occurs, the address of "control bit" will be written to 1. If "clear alert when alarm OFF" is checked, the address of "control bit" will be written to 0.

Beep when alarm ON: The beep works when the alarm is triggered. If "beep once" is checked, bit address alarm only beep once and stop.

Content: It is used for setting alarm content (command).

Alarm Screen: Pop-up alarm screen (it need to be sub-screen);

  • Position: The location of the screen alarm display.
  • Pop-up Interval: The time of reopen the alarm screen when alarm screen closed.
  • Pop-up once: Pop up alarm screen once, and the screen would not pop up again
  • Close window when alarm off: Automatically close the alarm screen when alarm off.

✎Note:

  • If the "cloud" function is enabled and "upload to cloud" is checked, the communication port of the address in the configuration of the imported bit alarm record must be the same as that of the current project; otherwise, it cannot be used normally.
  • The number of alarm configuration points reported to the cloud cannot exceed 20, or the sum of imported alarm records and the current alarm records cannot exceed 20. If it exceeds, please reconfigure.

Operating Procedures of Adding One Alarm

  • Click "Project"→"Bit Alarm" as below shows.

8.Basic Function_html_5f8da20315334bac.png

  • Click "Add" button to open "Bit Alarm" setting window.

8.Basic Function_html_94a019683b506e15.png

  • Set "Bit Address".
  • Set "Alarm Condition".
  • Set "Content".
  • Other settings can be set according to the actual situation".
  • Click "OK" button to complete settings.

Word alarm

Word alarm is to monitor the word address of a device. If the data meets the set conditions, an alarm will be generated.

Click "Project"→"Word alarm", it is displayed as the following figure.

字报警 1.png

Alarm Name: You can set alarm name for it. Alarm Name can only consist of (0~9), (a~z), (A~Z), ('_'), (' ') and other non-English characters.

Alarm Address: It is used for setting word address for word alarm, such as HDW0.

Data Format: 16-bit unsigned decimal, 16-bit signed decimal, 16-bit BCD, 32-bit unsigned decimal, 32-bit signed decimal, 32-bit BCD, 32-bit float.

Group No.: Group number of word alarm. The name is unique and cannot be duplicated.

Upload to Cloud: The data upload by "word alarm" is stored in the Cloud and it is alarm data. (Only ig series and 8000/9000 series with -R after system upgrade are supported)

✎Note:

  • If the "cloud" function is enabled and "upload to cloud" is checked, the communication port of the address in the configuration of the imported word alarm record must be the same as that of the current project; otherwise, it cannot be used normally.
  • The number of alarm configuration points reported to the cloud cannot exceed 20, or the sum of imported alarm records and the current alarm records cannot exceed 20. If it exceeds, please reconfigure.
SeriesNumber of Alarm upload to Cloud
8000-R200
9000-R200
3000ig20
8000ig200
MD20

Record alarm:  Whether to record the alarm history data of word alarm, if checked, it will be saved in the designated storage location.

Not save alarm OFF: If checked, after the alarm is dismissed, the corresponding alarm records will be deleted from the log file.

Alarm Condition: Alarm is triggered when designated address meets the alarm condition, it provides four conditions;

  1. High alarm: Alarm is triggered when it reaches high limit. It can be a constant or a variable
  2. Low alarm: Alarm is triggered when it reaches low limit. It can be a constant or a variable
  3. Range alarm: Alarm is triggered when it exceeds the range. It can be a constant or a variable
  4. Equivalent alarm: Alarm is triggered when the value equals to the given data. It can be a constant or a variable

Alarm Info: It is used for setting alarm content (command);

Alert: It is used to mark whether the alarm has occurred. if an alarm occurs, the address of "control bit" will be written to 1. If "clear alert when alarm OFF" is checked, the address of "control bit" will be written to 0.

Alarm Screen: Pop-up alarm screen (it need to be sub-screen);

  1. Position: The location of the screen alarm display.
  2. Pop-up Interval: The time of reopen the alarm screen when alarm screen closed.
  3. Pop-up once: Pop up alarm screen once.
  4. Close window when alarm off: Automatically close the alarm screen when alarm off.

Beep when alarm ON: beep works when the alarm is triggered, in the default mode, the beep works until the alarm is released.

Beep once: Beep works once, when alarm is triggered.

Alarm List

It displays all the word alarm lists; it will show the alarm information;

Operating Procedures of Adding One Alarm

  • Click "Project"→ "Word Alarm" as below shows.

8.Basic Function_html_1b59522c984cd7c2.png

  • Click "AddClick" button to open "Word Alarm" setting window.

8.Basic Function_html_942107c81fc6901c.png

  • Set Basic information of word alarm.
  • Set "Content".
  • Other settings can be set according to the actual situation.
  • Click "OK" button to complete settings.

HMI Alarm Demo Download Link

https://drive.google.com/open?id=1Llq03CMISM_1mMIfU308hxFbs4rGdQGP

Recipe

Overview of recipe

Recipes are composed of multiple groups of information materials with the same structure and different data. Due to the sameness of these materials, users can edit them into a group of recipes to facilitate data transfer between HMI and PLC. Therefore, this function can be utilized for information that has a similar structure to achieve efficient and correct transmission.

Data operation of recipe: Upload and download. Upload refers to reading the data of [The set address] group and writing the data of this group to the corresponding recipe file. Download refers to reading a group of data from the recipe file and assigning the group of data to [The set address].

The recipe data can be stored in external equipment, such as USB flash disk and SD card. The whole recipe data can be viewed with the [Recipe record] object.

Example

Taking automobile paint spraying as an example, suppose that when a newly manufactured automobile needs to be painted, it needs to spray different colors (red, green and blue) on the top, bottom and outside of the automobile, and the original colors provided are only red, green and blue. At this time, to spray different colors, it needs the appropriate ratio of these three colors, and the spraying time of different parts is different. At this time, the function of recipe needs to be executed. Check Table 1 for details.

Table 1 Example recipe

PartRed (Kg)Green (Kg)Blue (Kg)Spraying time (Seconds)
Top22130
Bottom31240
Outside23320

From the above table, one group of recipes is needed when spraying different parts, and three groups of recipes can be established, and each group of recipes has four ingredients: Red, Green, Blue, Spraying time. The value of each ingredient is different in different groups of recipes.Recipe configuration

The recipe function needs to be used with the recipe configuration area and [Recipe record] object. Click [Recipe] in the [System configuration/Record setting] in the upper left side of the software 1698393787529-717.pngand the following interface will pop up:


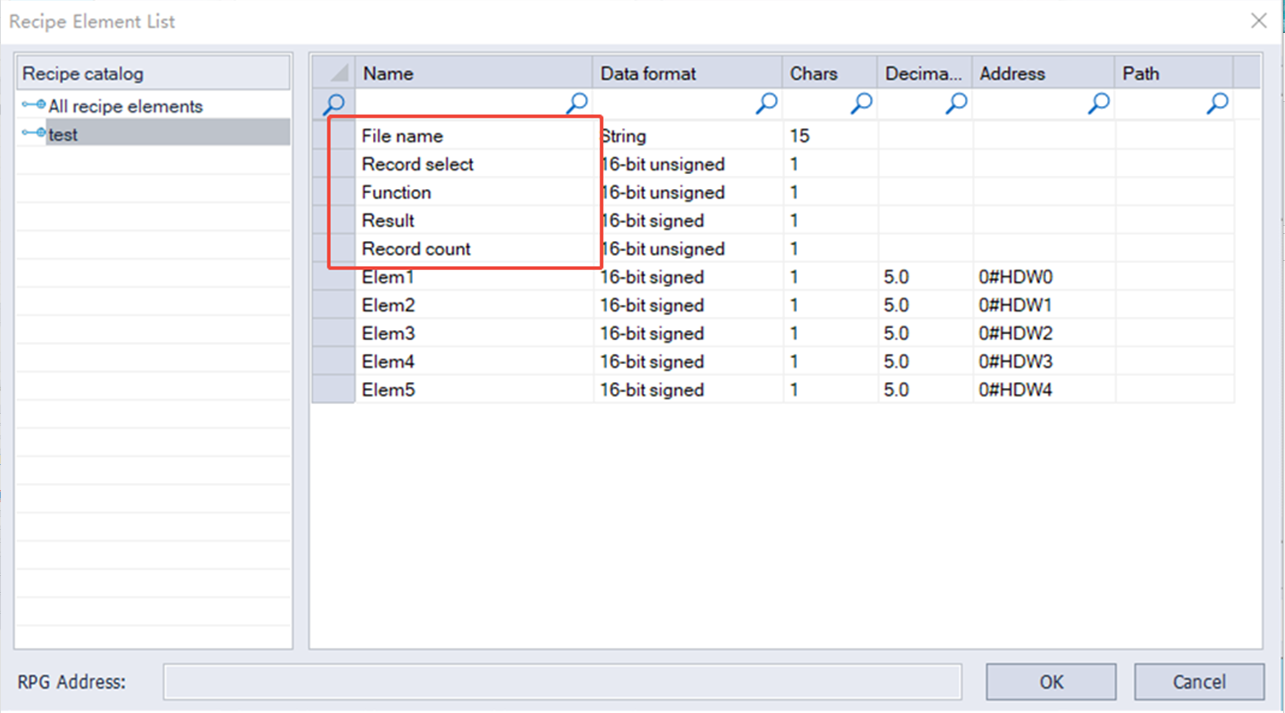

Click [Add] to pop up the recipe setting interface, as shown in the following figure:


Recipe configuration optionsDescriptionNotice
Recipe nameName the current recipeNote: Recipe name can only consist of (0~9), (a~z), (A~Z), ('_'), ('') and other non-English characters.
Group numberConfigure the group number of the current recipe, ranging from 0 to 1000
Number of ingredientsConfigure the number of the current ingredient, ranging from 0 to 1500
Data configuration optionsDescriptionNotice
Starting addressThe data of group in the recipe file is read out and displayed in the address, which will be automatically assigned according to the set data format of each ingredient. For example, if each group has 10 ingredients, the ingredient format is 16-bit unsigned decimal number, and the starting address is HDW0, then 10 addresses (HDW0-HDW9) correspond to 10 ingredients respectively, the values in HDWO correspond to the values in ingredient 1, the values in HDW1 correspond to the values in ingredient 2, and so on.
Recipes are read and written at different addressesWhen "recipe written and read address are different" is checked, the address configured by the read address is only used for recipe read data operation, and the address set in this area is used to control recipe written data operation.
Data formatConfigure the data format of this recipe. There are 9 modes of data format: 16-bit BCD code, 16-bit signed decimal, 16-bit unsigned decimal, 32-bit BCD code, 32-bit signed decimal, 32-bit unsigned decimal, 32-bit (single-precision) floating points, 64-bit (double-precision) floating point, string.

✎Note: The data format set here is for all components of the recipe, that is, the data format of all components in a recipe is consistent.

Decimal point positionConfigure the selection of integer and decimal places of data.
Enable discontinuous addressesIf checked, the address of the recipe list can be modified.
LanguageRecipe display language is selectable.
Recipe listThe recipe list displays the configured recipe parameter information in the list according to the settings. The parameters of each ingredient in the recipe list can be modified at the same time: For example, the name of the ingredient, the data format of the ingredient, the address of the ingredient, and directly filling in the data of each ingredient in each group.
Insert groupClick [Insert group], enter the number of groups to insert, and the corresponding row will be added to the recipe list.
Delete group.Click [Delete group] to select the group to delete
Insert ingredientClick [Insert group], enter the number of groups to insert, and the corresponding row will be added to the recipe list.
Delete ingredientClick [Delete ingredient] to select the ingredient to delete.
Data importImport existing data files, supporting .xlsx .xls .csv format.
Data exportExport configured recipe data

Traditional recipe is composed of multiple groups of information with the same structure and different data. Due to the similarity of these information, you could edit them into a set of recipes to facilitate the transfer of data between HMI and PLC.

Data operation

  1. Read: Read a group of data from the recipe file and assign the group of data to the set address.
  2. Write: Read a group of data from the set address and assign the group of data to the corresponding recipe file.

PI Series HMI has Recipe function, Recipe function keeps data in the HMI, used to download the data from HMI to designated device addresses, or upload the data from device addresses to HMI.

The maximum number of group in recipe is 1000, and the maximum number of member in each group is 1500.

Recipe could store the data in USB flash disk and SD card and view the recipe data by object "Recipe display". It has two mode: simple mode and advanced mode.

  1. Simple: Only support the data operation of one recipe file, including read and write.
  2. Advanced: Support the data operation of multiple recipe files, including read, write, insert and index. View and select recipe file by object "File list".

Recipe function settings will be display in "Recipe display" object.

Description


Basic

  • Recipe Folder: Give Recipe folder name (It can be used, when setting Recipe display object);
    • ✎Note: Recipe Folder name can only consist of (0~9), (a~z), (A~Z), ('_'), (' ') and other non-English characters;

  • Group: Set the recipe group number, the number of elements, the data format. The data format has 8 modes: 16-bit signed decimal, 16-bit unsigned decimal, 16-bit BCD, 32-bit signed decimal, 32-bit unsigned decimal, 16-bit BCD, 32-bit floating point number, 64-bit (double-precision) floating-point number, string, and the choice of data integer and decimal places.
  • Elements: It sets members' initial number of each group;
  • Data Format: There are some formats can be supported in Recipe, like 16-bit BCD, 16-bit signed, 16-bit unsigned, 32-bit BCD, 32-bit signed, 32-bit unsigned, 32-bit floating and string. If each member requires different formats, please set it one by one in form;
  • Decimal: It sets integer and scale digits;

Mode Selection: Select Simple or Advanced mode. Recipe file is divided into simple mode and advanced mode. Only in advanced mode can exist multiple recipe files used at the same time. (used wiht file list onject), Simple mode can only support a recipe file; Aadvanced mode can insert group information and reordered.

Function address: all operations are done through function addresses, different operating value is as follows:

  • = 0: no operation;
  • = 1: trigger read data;
  • = 2: new trigger or update (If there is group number, it updates.)
  • = 4: insert (only valid in advanced mode)
  • = 8: delete (Delete according to the writing group number. If write and read address are consistent, refer to the reading group number);
  • = 16: delete and sorted ((Delete according to the writing group number. If write and read address are consistent, refer to the reading group number)
  • = 64: import CSV recipe file.

Use Multiple File

Check it to use more than one recipe file in HMI, but this option only valid in [Advanced mode];

Select language

The text in HMI can be in 8 languages, user can set language in here;

Address

  1. Group: This address is for selecting group number;
  2. Start: This is starting address is for reading and writing in recipe, PIStudio will automatically assigns addresses for each members;
  3. File(16 words): This address only available when enable the Use Multiple File. This setting address is for input the recipe file's filename.

Use Index

If the value from Group address is changed, Read address will display the new data according to new group number immediately. Relatively, if the data of write address is changed, the corresponding group from table is also changed.

Query by Element

Enable it for querying group by specify element, select a primary key from all the elements, except the group number. This element value from all groups must be unique if want to set as primary key;

✎Note: When this option is enabled, Group address will be invalid.

Use Independent Write Address

To separate Recipe read address and write address.

Use Insert

It inserts data into the specified group, if the specified group already exists, it would not cover the original data, while it will move the original group next one after it.

Discontinuous Address

Whether enable the non-consecutive recipe operation addresses or not. If disabled, the recipe address will recover as the continuous addresses.

✎Note: This function only supported in HMI+, i series, ie series, ig series.

Description of adcanced mode

According to the recipe configuration information in Figure 2 above. The function address is HDW70, and each function configuration corresponds to the group number address, recipe element address and recipe file name address. The recipe information configured in figure 2 can be displayed in the table in figure 3 with the "Record Display" object.


Read recipe: Input 1 to the file name, when the group number addresses HDW100=1 and HDW70=1 (read), the element data of the first group (ID=1) is written to the recipe address from the recipe file. As shown in Figure 3 above: HDW105=1, HHDW106=2, HDW107=3, HDW108=4, HDW109=5.

Write recipe: Input 1 to the file name, when the group number addresses HDW101=4 and HDW70=2 (write), the data will be read from the recipe address and written to the corresponding group of the recipe file. As shown in figure 3 above: HDW110=20, HHDW111=21, HDW112=22, HDW113=23, HDW114=24. Write the data of this set to the elements of ID=4 in the recipe table (if there is no data of Group 4 in the recipe file, a new set of data will be added; If there is data of Group 4 in the original recipe, the original data will be overwritten and the latest data will be displayed in the recipe file).

Index recipe: When the file name is input 1, when the group number address HDW102=3, the data of ID=3 (Group 3) in the recipe file will be directly displayed in the component address of the index, that is, HDW115=11, HHDW116=12, HDW117=13, HDW118=14 and HDW119=15. If the data of the index component address is modified, the modified data will be automatically filled into the table of the recipe file, that is, the data of the recipe file will be automatically updated after the data is modified.


Insert recipe: Input 1 to the file name, when the group number addresses HDW103=3 and HDW70=4 (insert), the data of the 3rd group will be inserted, but the data of the third group already exists in the original recipe file (see Figure 3 above), then the original data will be moved down by one group, that is, the original 3rd group will become the 4th group, and so on, and HDW120=16, HHDW121=17, HDW122=18, HDW123=19 and HDW124=20 will be written into the new 3rd group of the recipe file at the same time. The results are shown in Figure 4 above.

When the group number address HDW101=2 (The delete function only works on the group number of the write function), HDW70=8 (delete), the data in the recipe file with ID=2 (Group 2) will be deleted.

When the group number address HDW101=5 (The delete function only works on the group number of the write function), HDW70=16 (delete and sort), the data of ID=5 (Group 5) in the recipe file will be deleted, and the original ID=6 (Group 6) data will be reordered to become the new Group 5 data, the original ID=7 (Group 7) data will be reordered to become the new Group 6 data, and so on.

Recipe Demo Download Link: Download

Calling CSV recipe file

Overview

The recipe files used by the regular series HMI are in CSV format, and the recipe files used by the current series HMI are in database format. In order to be compatible with CSV format recipe files on the current series of HMI, please follow the instruction when using it.

Operations

Create the recipe as it is configured. The default recipe file name is “1. rcp2”, which is placed in folder 123, as shown in the following figure.


Figure 1

2. Place a "Recipe Record Display" object and a "File List" object on the project screen for viewing the recipe files in the folder 123, and the address configuration in the object should be consistent with the above configuration.


By configuring the address in the table and combining the recipe function, the CSV recipe files of regular series are imported.

Address rangeObject typeAddress function
HSW1050 to 1065Text input objectEnter the CSV recipe file name to import
HSW1066Numerical input objectImport CSV file type:
  • = 0: Custom CSV file (all data in the file is valid)
  • = 1: Normal recipe file for regular series HMI (the data in line 1 of the file is invalid)
  • = 2: Special recipe file for regular series HMI (the data in line 1 and 2 and column 1 of the file are invalid)
HSW1067Numerical input object

Where the CSV file is saved:

  • = 0: In the CsvFile directory of U disk
  • = 1: In the CsvFile directory of the SD card

The path for offline simulation is: C:\ HMIEmulation\ CustomFileDir\ CsvFile

HSW242Numerical input objectReturns the results of the csv import:
  • = 37: CSV file imported successfully
  • = 38: CSV file import failed

Select CSV recipe file (take U disk as an example):

Using the file list object, select the recipe file in the U disk by path, and configure the recipe file name address directly to the special address HSW1050 in the above table, which can directly detect the CSV file in the U disk; Select the recipe file in the file list, and write the selected recipe file name into the recipe file name: In HSW1050 to 1065.

Use the special address of the above table to configure the path of the CSV file: HSW106, configure recipe file name: HSW1050 to1065

Use HSW1066 address to select the corresponding CSV recipe file type.

  • HSW1066 = 0: Import a user-defined CSV recipe file (all data in the custom CSV file must be valid);


  • HSW1066=1: Import the normal recipe file of regular series HMI (the data in line 1 of the file is invalid);

The data in line 1 of the normal recipe file is used to define the format of the recipe and will not be imported into the recipe table as recipe information, but you must ensure that the data in line 1 representing the elements and number of groups is correct, otherwise the CSV recipe file will fail to be imported.


  • HSW1066=2: Import the special recipe file of regular series HMI (the data in line 1, 2 and column 1 of the file are invalid);

In the special recipe file, line 1 is used to define the format of the recipe, line 2 is used to define the element name of the recipe, and column 1 is used to define the group name of the recipe, so lines 1, 2 and column 1 of the special recipe will not be imported into the recipe table as recipe information. During use, ensure that the data such as the number of groups and elements representing the recipe format in the first line are correct, otherwise the import of the CSV recipe file will fail.


Perform import

After configuring the saving path of CSV recipe file, the name of recipe file and the type of recipe according to the above steps, the method of transferring CSV file to DB file is as follows:

  • Configure the DB recipe file name by text input object: HDW500 = 3 (recipe file configured in Figure 1),
  • Set the recipe function address to: HDW1000 = 64 (the function address configured in Figure 1),
  • Transform the CSV recipe file in U disk into DB recipe file with file name “3.rcp2”.

DB recipe file for storing CSV data:

Simple mode: When the recipe file is set to simple mode, the file of CSV data is saved as the DB recipe file of 1. rcp2 by default.

Advanced mode: When the recipe is enabled in advanced mode (multi-file recipe), the imported CSV file data is saved to the file recorded at the recipe file address HDW500 (the address configured in Figure 1).

Import results:

  • HSW242 = 37: Import succeeded;
  • HSW242 = 38: Import failed.

Precautions:

  • Ensure that the data format of each element in the CSV file is the same as the recipe data format set in the software (DB), and ensure that the elements of each row in the valid data area is the same as the elements set in the software (DB);
  • When the elements of a line in CSV file is more than the elements set in the software (DB), it will prompt the import failure;
  • When the CSV file imported into the regular series HMI is a recipe file, the data representing the recipe format (elements, number of groups, whether it is a special recipe) in line 1 must be correct, otherwise the import of CSV file will fail.

Recipe record function

Basic setting


Recipe selection: Select the recipe name to be displayed. The list is all the recipes configured in the recipe. If the list is empty, add the recipe in [Recipe].

Recipe shortcut key setting:

Add data: Used to add groups.

Delete data: Used to delete the selected configuration

Upload recipe: Used to upload the address data of the selected group to the corresponding group in recipe records.

Download recipe: Used to download the address data of the selected group to the corresponding group in recipe records.

Import recipe: Used to import the existing recipe files.

Export recipe: Used to export the current recipe as a file.

Graphic


Style selection: Styles can be switched or customized.

Background configuration: Set the recipe background, including background color and transparency.

Table configuration: Set the appearance of recipe table area, including row background color, row spacing color, horizontal header background color, vertical header background color, horizontal header text color, vertical header text color, text color, row selected color, name color, line color and cell style.

Expansion


Object lock: With the interlock address, the object is locked and the lock icon is displayed (upper left corner of the object) when the lock address is 0, and the bit switch is operable only when the bit pointed by the interlock bit address is 1. To lock the bit switch when the interlock bit address is 1, just check "Lock in ON".

Object lock icon: Icons will not display when the [Not display “Lock” icon] option is checked. Icon display will adapt to the change of object size.

Gray level display: When the object is locked, the text message will be grayed out.

Traditional recipe

Traditional recipe is composed of multiple groups of information with the same structure and different data. Due to the similarity of these information, you could edit them into a set of recipes to facilitate the transfer of data between HMI and PLC.

Traditional recipe function is valid only when the LEVI project is converted to the PI project, and the original project uses the traditional recipe.

✎Note: Currently, only HMI+, i series, ie series, and ig series support the traditional recipe.

Simple recipe mode

Click the "Traditional Recipe" 8-2TraditionalRecipe.png in the "Data tool" bar in the upper side of the software, and the following interface will pop up:


✎Note:

  • The recipe folder name can only consist of (0~9), (a~z), (A~Z), ('_'), ('').
  • The element name of the recipe cannot include following 5 special characters: " , " , " | " , " < " , " > " , " & " .

Recipe display

Select the file type "Traditional recipe file" in object "Recipe Display", and it is recommended to fill in the traditional recipe group number HSW1612 to the address of select line.

✎Note: The Recipe Display can display up to 50 groups of 100 elements by default, which can be to display out of range by enabled "Address Control". After the "Address Control" is enabled, the display group number can be reached to 100. If want to display more than 100, please adjust the "Start Group" from "Address Control" to index the display group, as following shown:


Recipe transmission address

The special addresses used in the Recipe are shown in the following table:

AddressDescriptionFunction
HSW1611Traditional Recipe transfer operation.

=1: Recipe download.

=2: Recipe upload.

HSW1612Traditional Recipe group number.Traditional Recipe group number.

HSW242

Recipe operation result prompt:

Upload: Data is written to recipe file from address.

Download: Data is written to the address from recipe file.

=1: Recipe download, start.

=2: Recipe download, execution error.

=6: Recipe download, successful.

=7: Recipe upload, start.

=8: Recipe upload, execution error.

=11: Recipe group name does not exist.

=12: Recipe upload, successful.

Recipe index

The recipe index address RPW is mainly used for editing traditional recipes, and it is more convenient to modify the data and display of recipes. Only need to modify and display the data of the recipe file through "Numeric Input/Display" Object and "Word Switch".

The recipe index area (RPW)'s instruction as follows:

  1. RPW**####, a total of six digits, the first two ** represent the Recipe group number, #### represents the element order number. For example, RPW010000 indicates the 1st element of the Recipe group No.1, and RPW110002 indicates the 3rd element of the Recipe group No.11.
  2. If the indexed group number or element number does not exist, the value of RPW defaults to zero. For example, RPW110011 represents the 12th element of the Recipe group No.11. If it does not exist, the value returned by accessing RPW110011 is zero. The value written in RPW110011 will not be saved to the recipe file.
  • ✎Note: As long as RPW**#### exists, any object "writes" to HPW**#### will be saved to the recipe file.
  1. The RPW register only supports word address access.
  2. It can be known from the coding method of RPW**#### that the range of RPW is from RPW000000-RPW990450, wherein the range of group number is 0-100, and the range of element is 0-450.

Recipe example

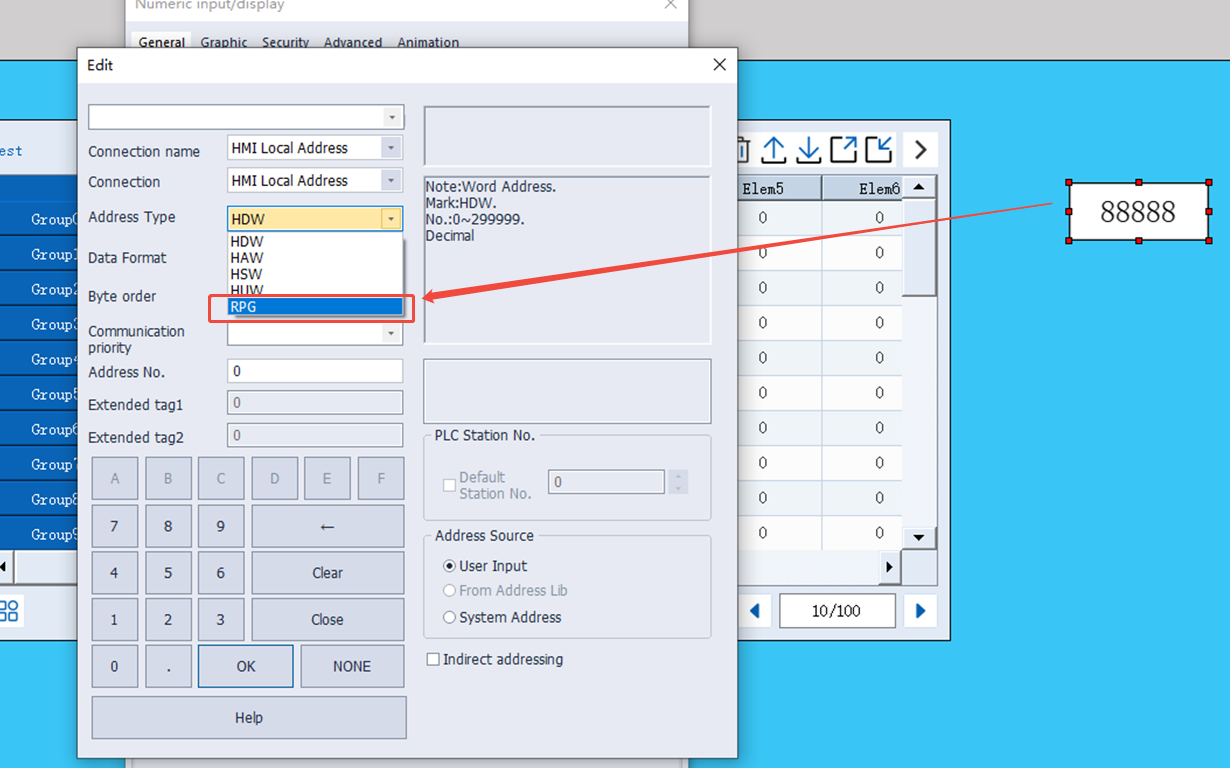

The recipe index makes the modification and display of recipe data more convenient. Only need to modify and display the data of the recipe file through "Numeric Input/Display" Object and "Word Switch".

Edit the recipe configuration, create three groups of recipes, 4 elements for per group: Red, green, blue, spraying time, as following shown:


RPW 0~3 can display the data of group for the selected line. RPW10000~10003, RPW20000~20003, RPW30000~30003 each address can display the single element. Directly modify the content of the RPW address and then modify the recipe data, as following shown:


After selecting the 2nd group, trigger the download button to download the whole group data to the corresponding element address (For this case, the data will write into HDW0~3), or trigger the upload button to upload the content of the element address to the specified recipe group.


Trend chart

Trend chart function is used for displaying the real-time data in HMI as curve graph, which X axis represent as time, Y axis represent as data.

Click "Project" → "Trend chart", it will pop up the following screen. Click "Add" to creat new curve record.

趋势图配置 001.png

Settings

趋势图设置 2.png

(1) Basic settings

  1. Curve NO.: It is for setting curve number,
  2. Curve Name: It is for setting curve name. The length limitation is 31 bytes.
  3. Curve (1~8): It is for setting the number of curves. The default is 3.
  4. Dots of one curve: It is for setting dots number of each curve. The default is 1000, but the maximum dots are 10,000 for all the curves.

(2) Sample Type

  1. Sample method: There are two types, one is Cycle sample, the other is Trigger cycle sample. If you select Trigger cycle same mode, the trigger sample address is required to edit.
  2. Sample unit: 100ms.

(3) Quick Setting

  1. Data format: It is for setting all the curves, select the data format for all curves, and setting the reading addresses for curves. There are as follows.

趋势图设置 3.png

  1. Sample address: Fill in the start address that read the device data. If the sampl address is consecutive, check "use continuous address". For example, set HDW0 as start address, curve number is 3, then the HDW0 is for Curve 1, HDW1 is for Curve2, HDW2 is for Curve 3.

(4) Curve Table: The sample address you have set would display on it. Click the corresponding box to modify the content.

✎Note: Curve names can only consist of Chinese characters, (0~9), (a~z), (A~Z), ('_') (' '), and other non-English characters.

Trend Chart Demo Download Link

https://drive.google.com/open?id=1smnaAvSxOWC0WQK4_uvqHXWn4vUZxGJC

History XY plot

Different from TrendChart, uses need to set history XY curve items in project. Please click "Project"-> "History XY Plot" to open the setting screen.

Recipe function settings will be display in "History XY Plot" object.

历史XY 2.png

历史XY 3.png

(1) Basic settings

  1. Curve NO.: It is for setting curve number,
  2. Curve Name: It is for setting curve name. The length limitation is 31 bytes.
  3. Curve (1~8): It is for setting the number of curves. The default is 3.
  4. Dots of one curve: It is for setting dots number of each curve. The default is 1000, but the maximum dots are 10,000 for all the curves.

(2) Sample Type

  1. Sample method: There are two types, one is Cycle sample, the other is Trigger cycle sample. If you select Trigger cycle same mode, the trigger sample address is required to edit.
  2. Sample unit: 100ms.

(3) Quick Setting

  1. Data format: It is for setting all the curves, select the data format for all curves, and setting the reading addresses for curves. There are as follows.


  1. Sample address: Fill in the start address that read the device data. If the sample address is consecutive, check "use continuous address". For example, set HDW0 as start address, curve number is 3, then the HDW0 is for Curve 1, HDW1 is for Curve2, HDW2 is for Curve 3.

(4) Curve Table: The sample address you have set would display on it. Click the corresponding box to modify the content.

✎Note: Curve names can only consist of Chinese characters, (0~9), (a~z), (A~Z), ('_') (' '), and other non-English characters.

Operating Procedure

  • Click "Project" → "History XY Plot" to open the function selecting windows.

8.Basic Function_html_5da6ca44bd28acbe.png

  • Click "Add" button to open "History XY Plot” setting windows.

8.Basic Function_html_6345b50ea55168fa.png

  • Setting the function of History XY Plot.
  • Click "OK" to save the setting.

Download Link

https://drive.google.com/open?id=1t4_HuRmIJJ-B5ryA2kVMadD9FywKhZ4r

Data record

The data record function is organized according to the structure below. In a project, there can be multiple record groups, each record group containing multiple channels. Different groups have different sampling times.

The topology is shown in the following figure.

8.Basic Function_html_1b4bd09dafa7e049.png

The data record stored in SD card is also organized according to the above figure.

The sample time and save time is consistent in the same record group. There are multiple channels in the group, When the sampling time is up, every channel would collect data to PLC register according to its own address.

Sampling interval: The interval between two consecutive samples was recorded.

As long as the project uses the data record function and supports the large-capacity storage module, the system will sample data according to the set sampling interval and save data according to the set saving interval.

For the file storage of data, see the file size configuration during data record configuration.

Note:

After enable the Cloud and check the box of Upload to Cloud, the communication port settings of the address in the imported Data record configuration must be the same as the communication port settings of the current project, otherwise it cannot be used normally.

The number of Data records upload to Cloud shall not exceed the limit value, or the sum of the imported Data records and the number of existing alarm records shall not exceed the limit value. the specific limitation as following table:

SeriesNumber of Data Record upload to Cloud
8000-R100
9000-R100
3000ig50
8000ig100
MD50

The record group name can only be composed of Chinese characters, (0~9), (a~z), (A~Z), ('_'), ('') and other non-English characters.

Channel name cannot incloud following symbols: :" , ", " | ", " < ", " > ", " & ".

Settings

数据记录设置 1.png

Operating Procedures

  1. Click "Project"->"Data record" as below shows.
  2. Click "Add" button to open "Data record" setting window.
  3. Enter group name, the default is "GroupName0"
  4. Select "Trigger function" mode, such as "No trigger".
  5. Set "Total channels", such as 3.
  6. Click "Apply" button.
  7. Set Sample cycle, such as 15.
  8. Set "Start channel" in "Quick settings", such as 4 0.
  9. Check group information in "Channel list" as below.
  10. Click "Save" button to complete settings.

The figure above display the group of current project. The data record file would stored in "DataLogFile" folder, and the data of every  group would have a data file. The file suffix is in "db" format.

Note:

  • For HMI series 8000 and above, the size of a single file cannot exceed 300M and the total file capacity cannot exceed 1000M.
  • For HMI series 3000, the size of a single file cannot exceed 4M and the total file capacity cannot exceed 10M.
  • If the total amount exceeds the range, an alarm will be given during project compilation.

数据记录设置 2.png

(1) Group name: Set group name, and he name should be unique.

(2) Trigger function: There are four modes to trigger record.

  1. No trigger: Data will be recorded in every sample time.
  2. Trigger to record by sample cycle: Data will be recorded in every same time, when trigger control bit set ON.
  3. Trigger to record once and reset: Data will be recorded when trigger control bit set ON, and the bit will be reset automatically.
  4. Trigger to record once: Data will be recorded when trigger control bit set ON, and the bit need to be reset manually.
  5. Trigger address: It is only valid when the trigger condition is selected. The monitoring cycle for trigger sampling address is 1s.

(3) Total channels (1~100): Set the numbers of channels. Click "apply" to view the channel lists on the right record channel.

(4) Sampling cycle: If you check "collect control address", the sampling interval is the value of the address. The unit is second. For example, Sample cycle=15s. It means that records data one time every 15s.

Timing address: It sets address to change sample time when HMI is running;

(5) Total records: It sets data record number in one data record file. If the data file size is beyond the current file size. The old data will be deleted, and the new data will replace the old data. Please remember to back up the old data record file.

Abnormal value: It sets a value, when communication fails, data record will record this value;

(6) Upload to Cloud: The data uploaded by Data Record is stored in the Cloud(Only ig series). The maximum number of record is 20.

(7) Quick Settings

  1. Start Channel: It sets the continuous addresses for channels.
  2. Data Format: It sets the same data format for channels.
  3. Number of Digits: It sets the digits’ number for channels.
  4. Language Settings: The text in HMI can be in 8 languages, user can set language in here.

(8) Channel List: Besides quick settings, user can set channel name, address, data format, and so on one by one according to real situation.

✎Note:

  • After enabling the Cloud function and checking the upload to the Cloud, the communication port settings of the address in the imported Data record configuration must be the same as the communication settings of the current project, otherwise it cannot be used normally.
  • The range of upload to the Cloud from Data record configuration must not exceed 50, or the total number of imported Data records and the number of currently existing Data records must not exceed 50. If it exceeds, it will prompt you to reconfigure, should reduce the number.
  • The channel name can only be composed of English characters, (0~9), (a~z), (A~Z), ('_'), ('').
  • The channel name does not include these 5 special characters: ", ", "| "," <", "> "," & ".
  • The data would be overwritten automatically if the capacity exceed the maximum capacity. For 8000/9000 series, the size of single file cannot exceed 300MB, and total capacity of data records cannot exceed 1000MB. For 3000/3000i/3000ie series, the size of single file cannot exceed 4MB, and total capacity of data records cannot exceed 10MB. If the total amount exceeds the range , an error will be prompted when the project is compiled.

You could click here to jump to object "Data Record Display"

User permission

Introduction

  1. User permission is one of expansion function in PI Series HMI; it provides multi-level of permission for control HMI operations.
  2. User need to set the user and group during designing project. Different groups have different permission levels for accessing. Each user should be added into the specified group; it is possible to add the same user into different groups.
  3. Operating record: it records user operations information, the records files are saved in HMI flash; its path is [\\flash\\UserOperationLogs.db].
  4. When it is on simulator mode, the files are saved in C disk, its path is [C:\\WECON\UserMgrFile\UserOperationLogs.db].

Note:

  • The user name and password must be unique. Username can be up to 32 characters, and password can be up to 8 characters.
  • The multi language function of User permission only supported on HMI system version V2.0 or above

Settings

Open PIStudio software, then operate as the following figure.

用户权限 1.png

Click on the cell from UserName and Desc, which can support the multi language.


  1. Click "User Permission" in "Data Tool" toolbar.
  2. Edit user name, click "User0" cell under "UserName", and then enter the user name, one project allows maximum 20 users.
  3. Edit password, click "User0" cell under "PassWord", and then enter the user name.
  4. Edit description, click "User0" cell under "Desc", and then enter, description is not necessary。
  5. Check the groups for each user, there are 11 groups beside admin.
  6. Editing groups' description, but it is not necessary.
  7. Click "Save and Exit" button to complete all settings.

Note:

  • Only a maximum of one administrator permission is allowed in a profile with one user permission. If you want to use "Funtion address" to modify the user permission, you must log in the administrator account to operate.
  • When the configured file does not have the administrator account, a new user can be added  through "Funtion address" and set as the administrator.
  • If you select hidden fucntion when configuring user account, the account would display as "******" in the list. You only need to enter the password of the corresponding hidden user to log in.
  • Adding new UserName and Desc on the HMI by special addresses in the current language of the HMI, other languages will also configure the user names and user descriptions to the current language by default, i.e. switching to other languages, the new user names and user descriptions will not change with the language.



Object permission configuration

用户权限 2.png

User operation logs support multi languages configuration. Click on the Log Message, the text editor of multi language will be pop up:


Operation Procedure of Object Permission

  1. Open the object setting windows;
  2. Select "Security" windows;
  3. Check the "User Permission";
  4. Select "Level" to set permission level;
  5. Enter "Log Message", it is for operation records, if it was empty, the operation for this object would be not be recorded;
  6. Select the "Access Denied Setting" mode;

Log information description

A combination of Chinese characters, numbers, and uppercase and lowercase letters can be entered, and the number does not exceed 63.

The format of insert variable:{variable address, data format}. e.g., {HDW100,UW2.1}.

      The data format are as follows.

LetterMeaning
BBinary
OOctonary
UUnsigned decimal
HHexadecimal
bBCD
F32-bit float
SSigned decimal
CCharacter
WSingle word
DDouble word

Examples.

  • Unsigned decimal, BCD, 32-bit float and Signed decimal are as follows.

       {HDW100,UW2.1}:  Indicates the variable address is HDW100. The data format are: unsigned decimal, single word, two integer bits, one decimal place.

  • Binary, Octonary and Hexadecimal are as follows.

       {HDW100,HD8}: Indicates the variable address is HDW100. The data format are: hexadecimal, double word, eight integer bits.

  • Character is as follows.

        {HDW100,C32}: Indicates the variable address is HDW100. The data format are: 32 characters.

When a record is generated, the contents of this variable are replaced by the value of your corresponding address.

Function address

 A user must first log in before performing an operation, and after the login is successful, the user can perform the required operation, and log out after completing the operation, making the operation permission invalid. User login, log out, modification of user password during operation and user management and other functions need to be configured.

HMI allows managing user accounts on screen. Including adding, deleting and editing the user account. HMI provide built-in screen for [Sign in] and [change password] (screen No. 1006 and 1007).

Functions and addresses are as follows.

FunctionAddressObject typeAddress function
Sign inHUW1158~1335Drop down listUser name
HUW1002Character input objectPassword
HUW1000Word Switch (Input 1)OK (sign in)
Change passwordHUW1158~1335Drop down listUser name
HUW1002Character input objectOld password
HUW1006Character input objectNew password
HUW1010Character input objectConfirm password
HUW1000Word Switch (Input 2)OK(change password)
Sign outHUW1000Word Switch (Input 3) Sign out

New user *1

HUW1014Character input objectUser name
HUW1006Character input objectpassword
HUW1010Character input objectConfirm password
HUW1000Word Switch (Input 4) OK(add new user)
HUW1336~1345Character input objectUser description
HUX1347.0Bit switch

=1: User hidden

=0: Visible (Defaults)

HUW1000Word Switch (Input 8) Save(add Hide features)

Delete user *2

HUW1158~1335Drop down listUser name
HUW1000Word Switch (Input 5)OK (delete user)
Delete ProfileHUW1000Word Switch (Input 9)OK(delete)
Export ProfileHUW1000Word Switch (Input 10)OK(export)
Import profileHUW1000Word Switch (Input 11)OK(import)
Export log fileHUW1000Word Switch (Input 12)OK(export)
Delete log fileHUW1000Word Switch (Input 13)OK (delete)
Current user nameHUW1349Character object32 Word
System state informationHUW1030Character input objectSystem state information
Permission settingsHUW1014Character input objectUser name
HUW1348Bit switch

Set the user group:

HUX1348.0 = 1 administrator;

HUX1348.1 = 1 group 0 permission;

HUX1348.2 = 1 group 1 permission;

(Total group 0 - group 10)

HUW1000Word Switch (Input 6)Add user rights (set according to HUW1348)
User login mode settingHUW1382Word Switch/Numeric input object

0: Select a user name from the drop-down list

1: Use character input object (address HUW1014) to log in with a user name

When the user performs a function operation, the operation result is displayed in the HUW1001.

Value (HUW1001)Meaning
1Insufficient permissions.
2Username does not exist.
3Username already exists.
4Wrong username or password.
5Login successfully.
6Passwords are inconsistent in twice time.
7Password changed successfully.
8User added successfully.
9User deleted successfully.
10Maximum number of users exceeded.
11Admin user already exists.
12User permission modified successfully.
13File imported successfully.
14File imported failed.
15File exported successfully.
16File exported failed.
17Logout successfully.
18Profile deleted successfully.
19Log file deleted successfully.
20Hide settings modified successfully.
21Hide settings modified failed.
22

Password already occupied, please reset.

(For both username and password, it can not repetition)

✎Note:

  • *1: If there is an admin user account, then the new user can no longer add one more admin, that is, one project can only have one administrator account.
  • *1: When adding new user, the password could not be duplicated with other users.
  • *2: When deleting user, it is forbidden to delete the admin user.

User Permission Demo Download

https://drive.google.com/open?id=1qOiEDvo_1H1YqpoLDpS77dGaAFm8nrGq

Message prompt

A message box is a window used to show some prompts or warnings to users. For example, the application process a task in the process of pop-up message box, suggesting that "U disk has been detected", then the customer can carry out data dump function.

消息提示 2.png

8.Basic Function_html_5ce2091d6f7cd732.png

(1) Message

It includes system classes (u disk, SD card, and others), chart classes (alarm, data record, recipe, file list), curve classes (Trend Chart, historical XY trend Plot).

(2) Control

  1. Current item: It shows selected message information.
  2. Use trigger address: When the message is triggered, the trigger address would be set ON.

For Example:

Trigger address is 011, during inserting a USB flash disk into HMI, and 011 would be set ON, once HMI recognizes USB flash disk, and display message.

  1. Show message: Check it to display message when HMI is running. It is checked by default.
  2. Show on web: Check it to display message when remote access HMI screen, it is unchecked by default.

(3) Message Content

Each message has default content, but you could set different content according to the actual situation. And the same message could be displayed in 8 languages.

(4) Reload Text: It means discard changes.

For Example

User deletes default content or modifies default content, but he wants to give up modification back to original, just click "Reload text".

✎Note:

  • If you do not want this prompt during the running of HMI, please uncheck "Show message".
  • "Reload text" function would be invalid after clicking "save".
  • These 5 special characters are not supported in the header Multi language settings: ",", "|", "<", ">", "&".

Appendix

The following pop-up message and code only available for HMI System V1.0, to indicate some system errors:

Message codeDescription
10001Failed to delete folder directoryFirst confirm whether the U disk SD card is read-only, or if there are other abnormalities, if it cannot handle by prevouis advises, please provide the back label and background version info.
10002Failed to renaming file
10003Failed to delete file
10004Inconsistent data record tablesThe files in the U disk SD card may be from other projects, or the same project but the number of channels in the current project is inconsistent with the record. Please consider verifying it first.
10009
LAN monitoring error
Data packet loss during the monitoring process may cause this problem. Confirm the software version. The company has updated this issue. Older versions can be updated
10010
10011
10012
10015Failed to initialize projectIt is recommended to send the project back to the company for testing
10022U Disk Safe Exit FailedIt may be in use, data is exported, or the storage location is U disk or SD card. It is best to trigger again and wait for its successful exit.
10023SD card safe exit failed
10024U disk is busy
10025SD card is busy
10026Cannot recognize the U disk/SD card
10027U disk/SD card cannot be read or writtenDetect the format of U disk/SD card. Fat32 and ntfs can be recognized normally. If the computer can use it normally and the HMI cannot recognize it, you can only consider formatting the U disk first and then try again.
10028U disk/SD card unknown error
10029U disk/SD card format error
11000Alarm record error

The version before Sept. 19th considers the flash problem. Please provide the back label and the backstage version info . Make sure to ask the customer to update the version first, and the customer's similar projects must be updated even if there is no problem. After the update, the flash usage should be checked and. If the flash is on a severe status, return to the company replaces the flash with a new one.

When the question is returned, the text behind the prompt is as complete as possible, which can help R&D to confirm the problem faster.

11001
11002Failed to delete Alarm record in Flash
11006Failed to save the Alarm records to Flash
11007Alarm record error
11009Data record error
11010
11011Failed to save Data records to Flash
11012Failed to delete Data record in Flash
11013Data record error
11014Failed to transfer Data record to U disk/SD card
11015Failed to copy Data record to U disk/SD card
11016Data record error
11017User permission related operation error
11018SQL trigger monitoring error
11019Data record error
11020Historical XY graph error
11021Failed to save the Historical XY graph to Flash
11022Failed to delete the Historical XY graph in Flash
11023

Installment payment error
11024
11025
11026
11027
11028
Real-time trend graph error
11029
11030
11031Failed to delete the Real-time trend graph data in the memory
11032Failed to save the Real-time trend graph to Flash
11033Recipe errorIf it is a new project download and there is an error, first confirm the settings of the recipe, if it is abnormal after a period of use, confirm whether it is the flash problem
11034
11035
11036
11037
11038
11039
11040
11041
11042
11043
11044
11045
11046User permission related operation errorIf an error occurs when downloading a new project, first confirm the permission configuration, whether the reserved configuration is checked in the download tool, etc., if it is abnormal after a period of use, confirm whether it is a flash problem
11047
11048
11049Failed to upload operation log file via Ethernet
11050User permission related operation errorIf an error occurs when downloading a new project, first confirm the permission configuration, whether the reserved configuration is checked in the download tool, etc., if it is abnormal after a period of use, confirm whether it is a flash problem
11051
11052
11053
11054
11055
11056
11057
11058Alarm record errorSame as flash problem
11062Installment payment error
11063Alarm Runbar errorMostly, the Runbar is used without config the alarm settings.
11069Historical trend graph errorSame as flash problem
11070
11071
11072SQL trigger monitoring error
11073Real-time trend graph errorSame as flash problem
11075Error getting database table fileSame as flash problem
11076Error getting database table fileSame as flash problem
11077Recipe errorIf it is a new project download and there is an error, first confirm the settings of the recipe, if it is abnormal after a period of use, confirm whether it is the flash problem
11078
11079
11080User permission related operation errorSame as 11046
11081
11082Drop-down list error
11083The message prompt error
11084Alarm record errorSame as flash problem
11085
11086Data record errorSame as flash problem
11087
11088Alarm record errorSame as flash problem
11089
11090Installment payment errorSame as flash problem
11091The message prompt error
11092The database table file does not exist
11093Machine code error
11094Import csv file error
30001Flash free space is not enough to store Data recordsInsufficient space, whether any file is copied into the flash
30002Flash free space is not enough, Historical XY trend graph is not stored
30003Flash free space is not enough to store real-time trend graphs
30005System read onlySame as the flash problem, if the flash is damaged, then the system must be updated
30006Insufficient reserved blocks

Cloud

Introduction

You may configure the basic settings of Cloud functions, tags, and User MQTT according to your needs. (If the device supports the Cloud function, you can use the function and configure the tags after checking the box to enable it, or upload the data to the 3rd party server.)

Click "Project"-"hh_B4H5OuNT87.pngCloud" in the upper left corner of the software, as shown in the following figure.


(1) Enable

If the HMI supports the Cloud function, check it to enable the Cloud function, and it will collect the real-time data from HMI upload to the Cloud. The number of data collection is limited, and the specific parameters are as follows:

SeriesMonitoring TagsAlarm RecordData RecordOpenCloud Data
8000-R (HMI V2.0 System)3002001001000
9000-R (HMI V2.0 System)3002001001000
3000ig1002050500
8000ig3002001001000
MD1002050500

For example:

  • In 3000ig's Cloud, the monitoring tags upload to the Cloud in real time is limited to 100.
  • For 3000ig's Alarm, the Alarm records of word alarms and bit alarms upload to Cloud is limited to 20. (See "Alarm" for details).
  • For 3000ig's Data record, the Data records upload to Cloud is limited to 50. (For details, please refer to "Data Record").

(2) Server Selection

 Server: China, ASEAN, and Europe.

 Password:

  1. If the HMI is not bound, this access password will be updated and downloaded into the HMI screen simultaneously.
  2. If the HMI is bound, this access password in the project cannot effectively change the binding password of the device, and it can only be changed through V-NET.

(3) Upload Selection:

To upload the data collected by HMI to the cloud or a to the third-party server, only one upload method can be selected.

  1. to Cloud: All the configured tags, data records, and alarm records would be pushed to V-NET.
  2. to User MQTT: All the configured tags, data records, and alarm records would be pushed to to the third-party server, and the relevant Lua function calls please refer to "Cloud interface".

After the "to User MQTT" is checked. The tags, data records, and alarms cannot be viewed on V-NET, but the device can be bound to V-NET and remote monitoring the device screen normally.

4) Low Data Mode setting

  1. When you check the "low Data Mod" by default on new tags, the newly added tags will be enabled in Low Data Mode by default.
  2. The longer the refresh interval, the slower the data upload, and the more traffic data will be saved. This function is only used for the control of tags.


Configurable type MQTT. Users can publish message to the MQTT server or subscribe topics from the MQTT server.

MQTT Configuration (Common Settings/AWS IOT Settings/ALi Settings/Huawei Settings)

This chapter explains how to use configurable type MQTT. Users can publish message to the MQTT server or subscribe topics from the MQTT server.

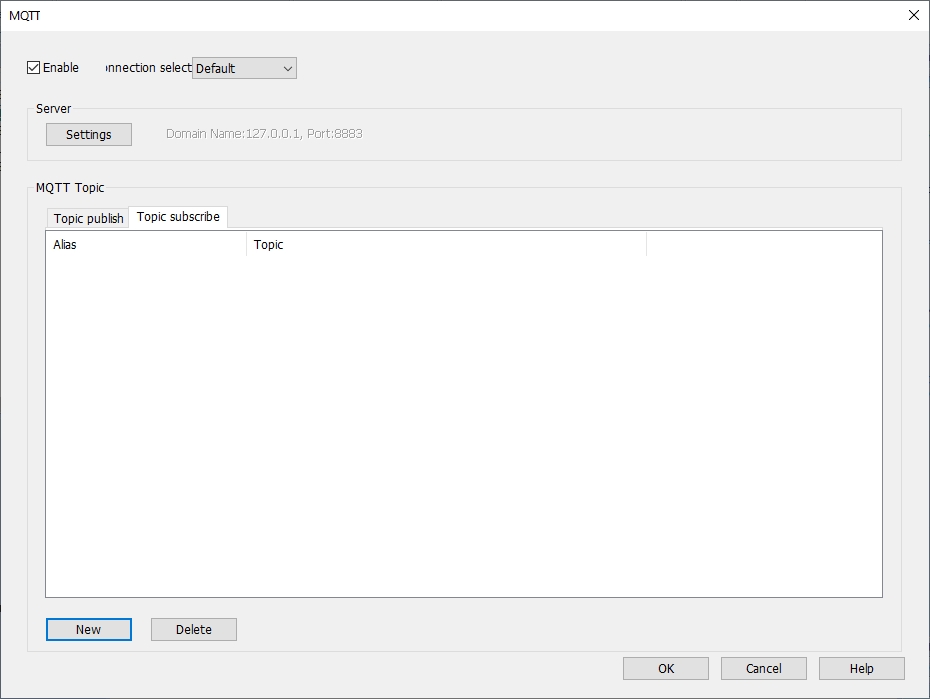

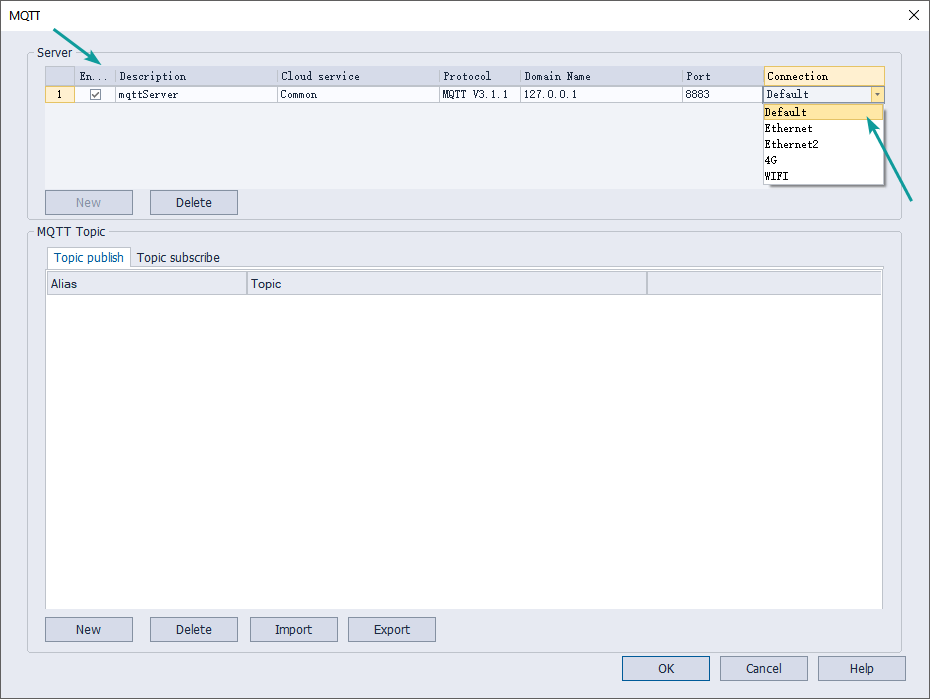

Click “MQTT” in “Data Tool" in the upper side bar of the software.After checking "Enable", the settings window will pop up and select different cloud services for MQTT configuration, as shown in the following figure:


MQTT Server Settings (Common)

General


Description: Enter a description or comment about the server. Maximum input length: 255 characters, cannot be empty.

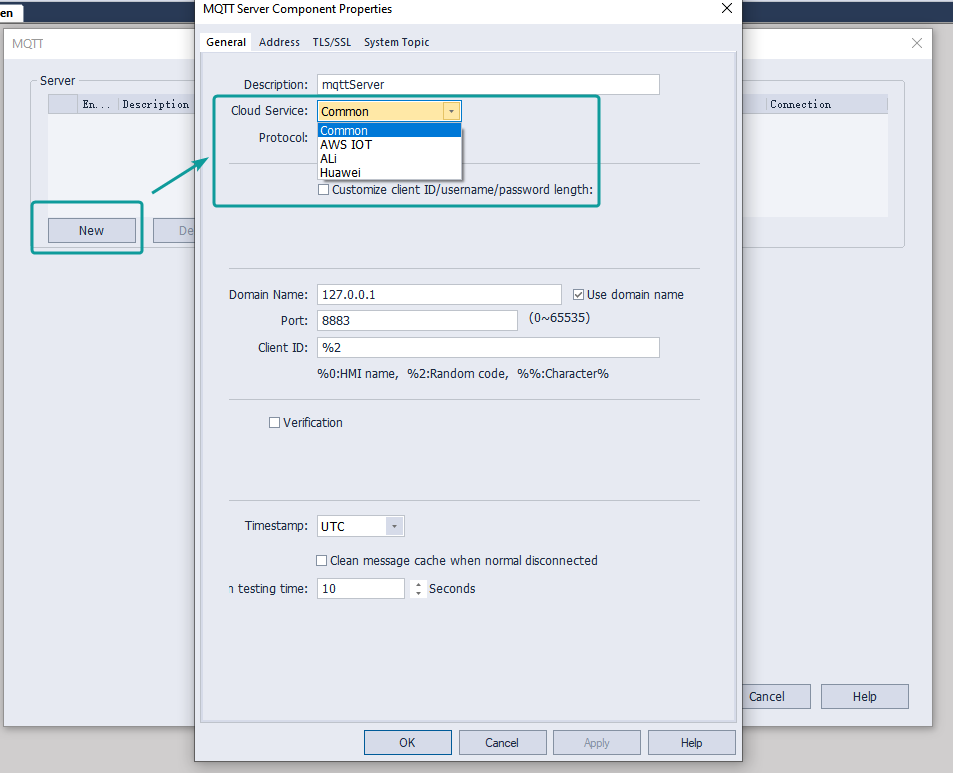

Cloud Service: (Select Common)

① Common (Common Platform): General MQTT publish-subscribe topic mode.

② AWS IoT (Amazon): Using "AWS IoT" as the Broker, using Thing to transfer data and support Shadow function.

③ ALi (Alibaba Cloud): Using "Alibaba Cloud" as Broker.

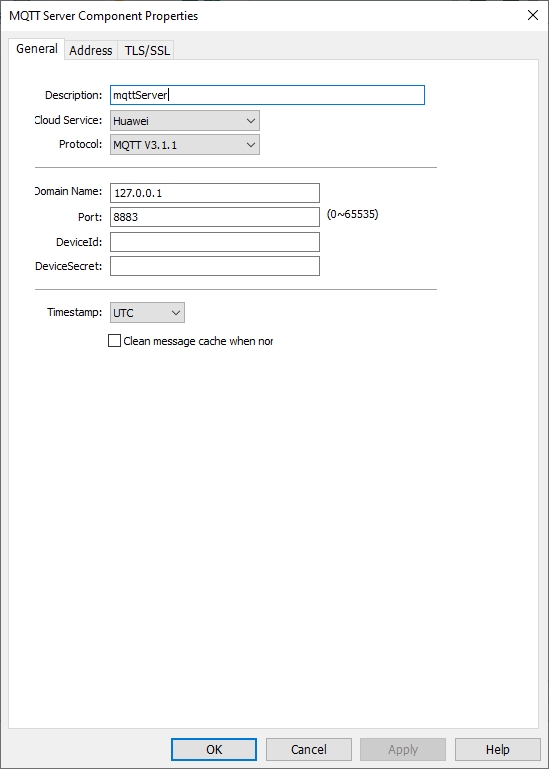

④ Huawei (Huawei Cloud): Using "Huawei Cloud" as Broker.

Communication protocol: MQTTv3.1, v3.1.1 and v5 are supported.

Custom Client ID length: User can customize the length of the Client ID (optional), length range: 20 ~128.

Custom username/password length: Customize the length of user name/password length (optional), length range: 16 ~ 256.

IP: Set the MQTT server IP to subscribe message.

Use domain name: Support using domain name to the specify server.

Domain name: Set the domain name of the MQTT server that subscribe message. Maximum input length: 128 characters, cannot be empty, supports letters, numbers, "-", “.”. The symbol cannot be placed at the first character or last character of name.

Port number: Set the MQTT server port to subscribe message. Range: 0~65535, cannot be empty.

Client ID: Login name. Variables can be used as login names. For example: Enter% 0 and the Client ID is the device name. (This can be set in the HMI background. If not, the default is HMI model.) (✎Note: A Client ID can only be used for one device.) When there is no custom Client ID length, the maximum configurable length of Client ID is 40 characters.

Verification: Choose whether to connect to the MQTT server using [User Name] and [Password].

User Name: The [User Name] connects to the MQTT server. When there is no custom username/password length, the maximum configurable length of username is 32 characters.

Password: The password for connect to the MQTT server. When there is no custom username/password length, the maximum configurable length of password is 32 characters.

Timestamp: LOCAL: Using the HMI time as the timestamp. UTC Time: Using UTC+0.

Clean message cache when normal connected: If option is enabled, when the device is disconnected, the message to be published will be cached in the cache area, and then will be published when the device is online again.

Address


Status address: (Total length: 2 words)

  HDWn: Display [MQTT] connection status.

ValueDescription
0Disable MQTT server connection
1Disconnected or connecting
2Successfully connected the MQTT server

  HDWn+1: Error prompt

ValueDescription
0No error
-1General error code of wrong operation
-3Disconnected
-4Exceed client data concurrency
-5Invalid UTF-8 string
-6Null pointer parameter
-7Topic name is truncated
-8Wrong protocol structure body
-9Bad QoS, acceptable range is (0, 1, 2)
-10Try to use a non-SSL version library for SSL connection
-11Wrong MQTT version
-14Wrong protocol type
-15Option is not suitable for the current request version
-16Call MQTT version that is not applicable to request.
-170 length connects topics

Buffer usage address: (Total length: 1 word)

Unsuccessful published message will be stored in memory as cache, with a maximum 100,000 messages or 2M. Value display as unit %, and it is carried unconditionally.

HDWn: Display buffer usage.

Control address: (Total length: 123 words; If the domain name is not enabled, it will take up 59 words)

  HDWn: Control the execution or stop of [MQTT Server].

ValueDescription
0Ready
1Start
2Stop
3Update

  HDWn+1: IP address of the MQTT server. (✎Note: This address is only valid when IP is used.)

  HDWn+5: Port number of the MQTT server.

  HDWn+6: Client ID of the MQTT server connection.

  HDWn+26: Authentication is enabled or not. = 0, disabled; = 1, enabled.

  HDWn+27: User name of MQTT server connection.

  HDWn+43: Password of MQTT server connection.

  HDWn+59: Domain name of the MQTT server. (✎Note: This address is only valid if the domain name is used.)

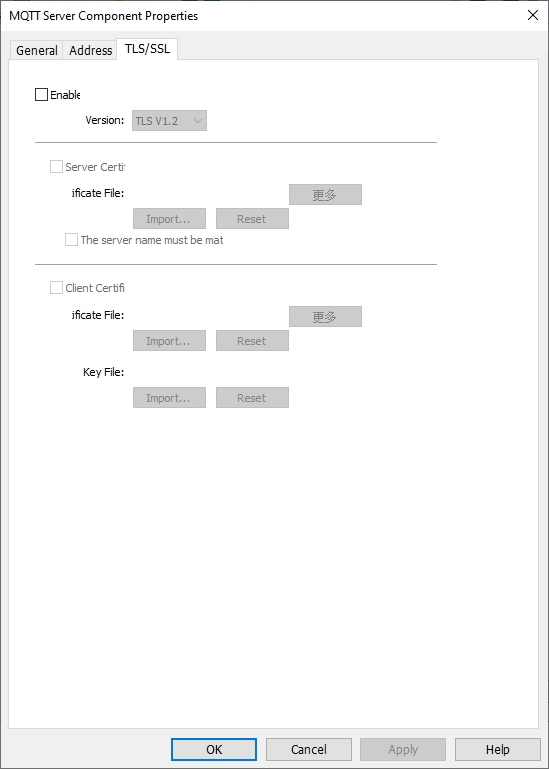

TLS/SSL Settings


Enable: Enable TLS/SSL encryption. User can manually select encrypted versions of TLS 1.0, TLS 1.1, or TLS 1.2.

Server authentication:

  Enable: Verify whether the server certificate has been certified by a Certificate Authority Certificate (CA). Server certificates are sent by the server when connection is established.

  Import: Select CA certificate to import.

  More: After the import is successful, clicking it will display the certificate details.

  Reset: Reset the import information.

  The server name must match the certificate information: Verify whether the server name or IP matches with the information in the certificate. Domain name and IP are recorded in the Subject Alternative Name from certificate.

Client authentication: The private key and client certificate are the data required for the server to authenticate the client end.

Certificate:

Import: Select certificate to import.

More: After the import is successful, clicking it will display the certificate details.

Reset: Reset the import information.

Key:

Import: Select the key to import.

More: After the import is successful, clicking it will display key details.

Reset: Reset the import information.

System topics


Birth Topic: The message that HMI will publish when it is connected to server.

Close Topic: The last send message before HMI actively disconnects from server connection

Last Will: Subscription of Last Will receive this message when an abnormal disconnection occurs between HMI and the server. HMI synchronizes the Last Will message to the server when it initially establishes the connection.

Topic List: A list of topics in the HMI that is sent to the server after the HMI is connected to the server.

Topic: The actual topic name of the system topic. Maximum input length: 255 characters, cannot be empty.

Retain message: The MQTT server keeps the latest message.

QoS: MQTT provides three levels of reliability called service quality. The service quality of message transmission determines whether the message is guaranteed to be delivered.

  QoS 0: Messages are sent only once, and delivery is not guaranteed.

  QoS 1: Message must be delivered at least once.

  QoS 2: Message is delivered just once.

Content format:

  JSON (Default): Use default values, default values for each system topic (The bold is represented as the current actual value)

Birth Topic:
{
  "d": {
 "connected": true
     },
  "ts": " Current time"
}Close Topic:
{
  "d": {
   "connected": false
     },
  "ts": " Current time"
}Last Will:
{
  "d": {
  "connected": false
     }
}Topic list:
{
  "d": {
   "topics": [
   {
      "compression": "

",

       "nickname": "Subject name",

       "topic": "Theme"
   },
   {
       "compression": "Compression type",

       "nickname": "Subject name",

       "topic": "Theme"
   }
  ]
},
   "ts": "Current time"
}

  Messages within topics vary depending on the actual topic settings. The above is an example of two topics.

  JSON (Customized): Use custom content.

Choose the connection network card


Default: According to the priority order of network adapters set in the HMI background to connect server.

Ethernet 1: Specify Ethernet 1 network card to connect to the server. When the system does not find Ethernet 1, connect to the server by “Default”. When system finds Ethernet 1 and binds it to connect to the server.

Ethernet 2: Specify Ethernet 2 network card to connect to the server. When the system does not find Ethernet 2, connect to the server by “Default”. When system finds Ethernet 2 and binds it to connect to the server.

4G: Specify 4G network card to connect to server. When the system does not find 4G, connect to the server by “Default”. When system finds 4G and binds it to connect to the server.

Wi-Fi: Specify Wi-Fi network card to connect to server. When the system does not find Wi-Fi, connect to the server by “Default”. When the system finds Wi-Fi and bind it to connect to the server.

MQTT Topic

MQTT topic publish

Select [Topic publish], click [Add], enter [Add MQTT topic publish object], and set the general settings and address. The maximum number of MQTT published topics is 255.


General properties


Alias: Set the project name of the MQTT topic. Maximum input length: 255 characters, cannot be empty.

Topic: The topic received by the MQTT server when sending message. Maximum input length: 255 characters, cannot be empty.

Sending mode: (AUTO/TRIGGER)

① AUTO value change mode: When any value changes, MQTT message is published.

a. Minimum time interval between messages: The minimum time interval can be set between messages to avoid over-publishing MQTT messages. When the interval of value change is less than the minimum time interval between messages, the message will be put in the cache. The MQTT message will not be published until the minimum interval between messages is met. Range: 0~3600000ms.

b. Periodic mode: Publish MQTT message by the fixed time. Time interval: Set the time interval for periodic publishing. The range is 1~3600s.

② TRIGGER

When the specified bit is triggered, the MQTT message is published. When HDX0.0 changes from OFF to ON, an MQTT message is published, and HDX0.0 is automatically set to OFF after publishing.

Compression type: Message is compressed before it is transmitted. The compressed message needs to be decompressed before the MQTT client reads it. Zilb, Gzip, or Deflate algorithm can be chosen to compress or decompress the message.

QoS: MQTT provides three levels of reliability called service quality. The service quality of message transmission determines whether the message is guaranteed to be delivered.

0: Messages are sent only once, and delivery is not guaranteed.

1: Message must be delivered at least once.

2: Message is delivered just once.

Retain message: When checked, the MQTT server keeps the latest message.

Content format:

Raw data: Data composed of BYTE data.

JSON (General): Put all data in JSON format of member "d".

JSON (Advanced): JSON format of flexibly customizable nested structure.

Include timestamps: This function is only supported when the content format uses [JSON (General)], and whether to include the timestamp can be decided manually.

Use the top "d" symbol in the message format:

This function is only supported when the content format uses [JSON (General)]. When checked, the message format is as follows:

{

"d": {

"addressName1": ...,

"addressName2":...

},

"ts":...

}

When unchecked, the message format is as follows:

{

"addressName1": ...,

"addressName2":...,

"ts":...

}

As shown above, when unchecked, ts and address names are both key at the same level. Therefore, avoid taking the address name as ts.

Address setting

①Address settings when content formats use [Raw Data] and [JSON (General)].


Add: Establish the address source of the topic. The length of each address can be set separately.

Delete: Delete the address.

Settings: Modify the address and name.


Included in all message sent

Check the options: This topic will include this address every time it publishes a message.

Uncheck the options: When the sending mode is value, message is published only when the value of the address changes.

Remove JSON array brackets' ['and'] ':

Check the options: Remove the array symbol name when using non-array bits or characters.

✎Note: A topic can be configured up to 255 nodes. The name length of a node can be configured up to a maximum of 255 characters and cannot be empty.

② Address setting when the content format uses [JSON (Advanced)]. [JSON (Advanced)] supports nested structure, which can use components, arrays and other forms. Timestamps and data names can also be customized, which is a more flexible design method.


The above figure is an example. If setting like above figure, the subscription side will receive the MQTT message like following format.

{
"object": {
  "value": "teststring",
  "value (1)": 123,
  "value (2)": true,
  "value (3)": "",
  "value (4)": 0,
  "value (5)": true
},
"array": [
  10,
  20,
  30
],
"value (6)": " 2023-04-27T03: 53: 20.156271 "
}

New component: Add a new data component. Components can have multiple data formats; each data format has its own Name and Value. The data of the component is included in braces {}.

New value: Add a new value, string, or timestamp. When it is a value or a string, it can be fixed value or read data from a specified address.

Delete: Delete the selected field.

Settings: Modify the selected field. If the selected fields are components and arrays, only the names can be modified. But components and arrays include values that can modify parameters.

Template: Paste the JSON text here, and the system will automatically arrange the style to conform to this JSON format, saving the time of self-definition.

Preview: Preview JSON data in an easy-to-read format.

✎Note: A Topic can be up to 512 nodes (including payload), and a node name can be configured to be up to 255 characters length.

Security settings

The topic is published only when the register status matches the setting. As shown in the following figure, this topic will not be published until the address HDX0.0 is set to ON.


MQTT topic subscription

Select [Topic subscription] and click [Add] to enter general property settings and address settings. The maximum number of MQTT subscription topics is 255.


General properties


Alias: Set the project name of the MQTT topic. Maximum input length: 255 characters, cannot be empty.

Topic: Topics subscribed from the MQTT server. Maximum input length: 255 characters, cannot be empty.

Compression type: The transport compression type of a subscription topic must be the same as that of a publication topic.

QoS: MQTT provides three levels of reliability called service quality. The service quality of message transmission determines whether the message is guaranteed to be delivered.

0: Messages are sent only once, and delivery is not guaranteed.

1: Message must be delivered at least once.

2: Message is delivered just once.

Content format:

Raw data: There is no original data in a specific format.

JSON (General): JSON format of single-layer structure.

JSON (Advanced): JSON format of flexibly customizable nested structure.

Verify timestamp: The user can decide whether to verify the timestamp or not. When checked, it indicates that the received data timestamp must be strictly incremented before it can be updated. Otherwise, it will be judged as outdated data and not updated.

Use the top "d" symbol in the message format:

This function is only supported when the content format uses [JSON (General)]. When checked, the message format is as follows:

{

"d": {

"addressName1": ...,

"addressName2":...

},

"ts":...

}

When unchecked, the message format is as follows:

{

"addressName1": ..., "addressName2":...,

"ts":...

}

Please select the appropriate settings according to the data source.

Address settings

①Address settings when content formats use [Raw Data] and [JSON (General)].


Add: Establish the address where the data is stored after the topic is subscribed, and the length of each address can be set separately.

Delete: Delete the address.

Settings: Modify the address and name.


Remove JSON array brackets' ['and'] ':

When using non-array bits or characters, array symbol can manually be removed.

✎Note: A topic can be configured up to 255 nodes. The name length of a node can be configured up to a maximum of 255 characters and cannot be empty.

② Address setting when the content format uses [JSON (Advanced)]. [JSON (Advanced)] supports nested structure, which can use components, arrays and other forms. Timestamps and data names can also be customized, which is a more flexible design method.


New component: Add a new data component. There can be multiple data formats in a component, each with a name and a value. The data of the component is included in braces {}.

New Array: Add a new data array. Arrays can have multiple data formats, but only one name. The data of the component is included in brackets [].

New value: Add a new value, string, or timestamp. When it is a value or a string, it can be fixed value or read data from a specified address.

Delete: Delete the selected field.

Settings: Modify the selected field. If the selected fields are components and arrays, only the names can be modified. But components and arrays include values that can modify parameters.

Template: Paste the JSON text here, and the system will automatically arrange the style to conform to this JSON format, saving the time of self-definition.

Preview: Preview JSON data in an easy-to-read format.

✎Note: A Topic can be up to 512 nodes (including payload), and a node name can be configured to be up to 255 characters length.

(3) Security settings

The topic is published only when the register status matches the setting. As shown in the following figure, this topic will not be published until the address HDX0.0 is set to ON.


MQTT Server Settings (AWS IOT)

General


Description: Enter a description or comment about the server. Maximum input length: 255 characters, cannot be empty.

Cloud service description: (Select AWS IOT)

① Common (Common Platform): General MQTT publish-subscribe topic mode.

② AWS IoT (Amazon): Using "AWS IoT" as the Broker, using Thing to transfer data and support Shadow function.

③ ALi (Alibaba Cloud): Using "Alibaba Cloud" as Broker.

④ Huawei (Huawei Cloud): Using "Huawei Cloud" as Broker.

Communication protocol: MQTT v3.1.1 is supported.

Domain name: Set the domain name of the MQTT server that receives message. (Obtained from the AWS IOT platform) Maximum input length: 128 characters, cannot be empty, supports letters, numbers, "-", “.”. The symbol cannot be placed at the first character or last character of name.

Port number: Set the MQTT server port to receive message. Range: 0~65535, cannot be empty. (AWS IOT platform is generally 8883).

Client ID: Login name. Variables can be used as login names. For example: Enter %0 and the Client ID is the device name (This can be set in the HMI background. If not, the default is HMI model). (✎Note: A Client ID can only be used on one device.) The maximum configurable length is 40 characters.

Timestamp: LOCAL: Using the HMI time as the timestamp. UTC Time: Using UTC+0.

Address


Status address: (Total length: 2 words)

  HDWn: Display [MQTT] connection status.

ValueDescription
0Disable MQTT server connection
1Disconnected or connecting
2Successfully connected the MQTT server

  HDWn+1: Error prompt

ValueDescription
0No error
-1General error code of wrong operation
-3Disconnected
-4Exceed client data concurrency
-5Invalid UTF-8 string
-6Null pointer parameter
-7Topic name is truncated
-8Wrong protocol structure body
-9Wrong QOS.  (0, 1, 2) is acceptable.
-10Attempt to use a non-SSL library for SSL connection
-11Wrong MQTT version
-14Wrong protocol type
-15Option is not suitable for the current request version
-16Call MQTT version that is not applicable to request.
-170 length topic connection

Buffer usage address: Not available.

Control address: (Total length: 90 words)

  HDWn: Control the execution or stop of [MQTT Server].

ValueDescription
0Ready
1Start
2Stop
3Update

  HDWn+1: Reserved for use.

  HDWn+5: Port number of the AWS IOT connection.

  HDWn+6: Client ID of the AWS IOT connection.

  HDWn+26: Domain name of the AWS IOT connection.

TLS/SSL Settings


Enable:

Enabled by default. The default is TLS V1.2.

Server authentication:

  Enabled by default: Verify whether the server certificate has been certified by a Certificate Authority Certificate (CA). Server certificates are sent by the server when connection is established.

  Import: Select CA certificate to import.

  More: After the import is successful, clicking it will display the certificate details.

  Reset: Reset the import information.

  The server name must be matched with the certificate information to verify whether the server name or IP matches the records in the certificate. Domain name and IP are recorded in the Subject Alternative Name in the certificate.

(3) Client authentication: The private key and client certificate are the data required for the server to authenticate the client end.

  Certificate:

    Import: Select certificate to import.

    More: After the import is successful, clicking it will display the certificate details.

    Reset: Reset the import information.

  Key:

    Import: Select the key to import.

    More: After the import is successful, clicking it will display key details.

    Reset: Reset the import information.

Device setting

Select [Add] to enter [General property settings and address settings]. To delete a device, select the device and click Delete.


General


Device name: It is consistent with the item name on AWS IOT. Maximum input length: 128 characters, cannot be empty, supports letters, numbers, "-", "_".

Description: For distinguish purpose. Maximum input length: 255 characters.

Minimum time interval between messages: The minimum time interval can be set between messages to avoid over-publishing MQTT messages. That is, when the interval of value change is less than the minimum time interval between messages, the message will be put in the cache, and the MQTT message will not be released until the minimum time interval between messages is met. Range: 0~3600000ms.

QoS: MQTT provides three levels of reliability called service quality. The service quality of message transmission determines whether the message is guaranteed to be delivered.

0: Messages are sent only once, and delivery is not guaranteed.

1: Message must be delivered at least once.

2: Message is delivered just once.

Content format: Not configurable. All data is in JSON format.

Include timestamps: Whether to include the timestamp can be decided manually.

Use the top "d" symbol in the message format:

This function is only supported when the content format uses [JSON (General)]. When checked, the message format is as follows:

{

"d": {

"addressName1": ...,

"addressName2":...

},

"ts":...

}

When unchecked, the message format is as follows:

{

"addressName1": ...,

"addressName2":...,

"ts":...

}

As shown above, when unchecked, ts and address names are both key at the same level. Therefore, avoid taking the address name as ts.

Address


Add: Establish the address source of the topic. The length of each address can be set separately.

Delete: Delete the address.

Settings: Modify the address and name.


Advanced Mode:

Check the options: Check to configure four “Settings/Status".

Uncheck the options: Check to configure two "Settings/Status".

Name: Correspond to the key value in JSON.

Type: “Bit" and “Word” are optional. “Word” configuration can choose system of numeration.

Length:

Length 1: General JSON format.

Length > 1: Enable the format of JSON array. The values of continuous address with the configuration address as the first address as the elements of the array. This length is valid to the selected "settings/status”. (For example, the length is set to 3, and 4 "settings/states" are checked, so the length of these 4 are all 3). Range: 1-255.

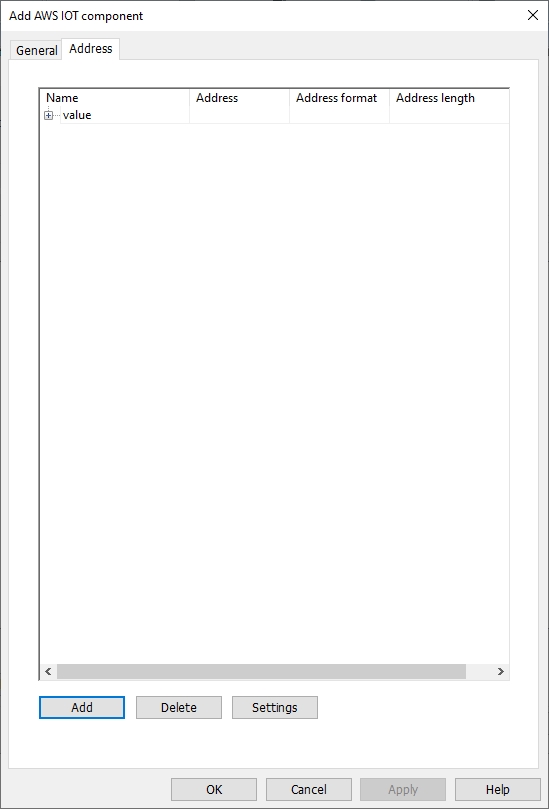

For example, configure as the following figure:


Then HDW0, HDW2 and HDW4 will be read and published to the reported key; HDW10, HDW12, HDW14 will be read and published to the desired key. For example, if HDW0=1, HDW2=2, HDW4=3, HDW10=4, HDW12=5, and HDW14=6, the subscribed message format is as follows.

{

"state": {

"desired": {

"welcome": [1, 2, 3]

},

"reported": {

"welcome": [4, 5, 6]

}

}

}

Status (Device address-->AWS IOT "reported"): Pass a value from the Device address to the AWS IOT “reported” in one direction, which is equivalent to publishing to "reported".

Setting (Device address->AWS IOT "desired"): Pass a value from the Device address to the AWS IOT “desired” in one direction, which is equivalent to publishing to “desired".

Status (AWS IOT "reported"->Device address): Pass a value from AWS IOT "reported" to Device address in one direction, which is equivalent to subscribing to "reported".

Settings (AWS IOT "desired"->Device address): Pass a value from the AWS IOT "desired" to the Device address in one direction, which is equivalent to subscribing to "desired".

Remove JSON array brackets' ['and'] ': Check to remove array symbols when using non-array bits or characters. (Configurable when length is 1).

MQTT Server Settings (ALi)

General


Description: Enter a description or comment about the server. Maximum input length: 255 characters, cannot be empty.

Cloud service description: (Select Ali)

① Common (Common Platform): General MQTT publish-subscribe topic mode.

② AWS IoT (Amazon): Using "AWS IoT" as the Broker, using Thing to transfer data and support Shadow function.

③ ALi (Alibaba Cloud): Using "Alibaba Cloud" as Broker.

④ Huawei (Huawei Cloud): Using "Huawei Cloud" as Broker.

Communication protocol: MQTTv3.1, v3.1.1 and v5 are supported.

Domain name: Set the domain name of the MQTT server that receives message. Maximum input length: 128 characters, cannot be empty, supports letters, numbers, "-", “.”. The symbol cannot be placed at the first character or last character of name.

Port number: Set the MQTT server port to subscribe message. Range: 0~65535, cannot be empty.

Client ID: Login name. Variables can be used as login names. For example: Enter %0 and the Client ID is the device name (This can be set in the HMI background. If not, the default is HMI model). (Note: A Client ID can only be used for one device.) When there is no custom Client ID length, the maximum configurable length of a Client ID is 64 characters.

ProductId: The key of the product to which the device belongs, that is, the globally unique identifier issued by the IoT platform for the product. (Obtained from Alibaba Cloud Platform) Maximum input length: 128 characters.

DeviceId: Unique identifier of the device within the product. DeviceName is combined with ProductKey of the product to which the device belongs as the device identification, which is used for connection authentication and communication with the IoT platform. (Obtained from Alibaba Cloud Platform) Maximum input length: 64 characters.

DeviceSecret: The device key issued by the IoT platform for devices is used for authentication and encryption. It needs to be used in pairs with DeviceName. (Obtained from Alibaba Cloud Platform) Maximum input length: 128 characters.

Encryption algorithm: Alibaba Cloud's signature algorithm type supports hmacmd5 and hmacsha1.

Timestamp: LOCAL: Using the HMI time as the timestamp. UTC Time: Use UTC+0 time.

Clean message cache when normal connected: If option is enabled, when the device is disconnected, the message to be published will be cached in the cache area, and then will be published when the device is online again.

Address


Status address: (Total length: 2 words)

  HDWn: Display [MQTT] connection status.

ValueDescription
0Disable MQTT server connection
1Disconnected or connecting
2Successfully connected the MQTT server

  HDWn+1: Error prompt

ValueDescription
0No error
-1General error code of wrong operation
-3Disconnected
-4Exceed client data concurrency
-5Invalid UTF-8 string
-6Null pointer parameter
-7Topic name is truncated
-8Wrong protocol structure body
-9Wrong QOS.  (0, 1, 2) is acceptable.
-10Attempt to use a non-SSL library for SSL connection
-11Wrong MQTT version
-14Wrong protocol type
-15Option is not suitable for the current request version
-16Call MQTT version that is not applicable to request.
-170 length topic connection

Buffer usage address: (Total length: 1 word)

Unsuccessful published message will be stored in memory as cache, with a maximum 100,000 messages or 2M. Value display as unit %, and it is carried unconditionally.

HDWn: Display buffer usage.

Control address: (Total length: 258 words)

  HDWn: Control the execution or stop of [MQTT Server].

ValueDescription
0Ready
1Start
2Stop
3Update

  HDWn+1: Port number of the Alibaba Cloud connection.

  HDWn+2: Domain name title of the Alibaba Cloud connection.

  HDWn+66: Client ID of the Alibaba Cloud connection.

  HDWn+98: ProductId of the Alibaba Cloud connection.

  HDWn+162: DeviceId of the Alibaba Cloud connection.

  HDWn+194: DeviceSecret of the Alibaba Cloud connection.

TLS/SSL Settings


Enable: Enable TLS/SSL encryption. User can manually select encrypted versions of TLS 1.0, TLS 1.1, or TLS 1.2.

Server authentication:

  Enable: Verify whether the server certificate has been certified by a Certificate Authority Certificate (CA). Server certificates are sent by the server when connection is established.

  Import: Select CA certificate to import.

  More: After the import is successful, clicking it will display the certificate details.

  Reset: Reset the import information.

  The server name must be matched with the certificate information to verify whether the server name or IP matches the records in the certificate. Domain name and IP are recorded in the Subject Alternative Name in the certificate.

(3) Client authentication: The private key and client certificate are the data required for the server to authenticate the client end.

  Certificate:

    Import: Select certificate to import.

    More: After the import is successful, clicking it will display the certificate details.

    Reset: Reset the import information.

  Key:

    Import: Select the key to import.

    More: After the import is successful, clicking it will display key details.

    Reset: Reset the import information.

MQTT Topic

MQTT topic publish

Select [Topic publish], click [Add], enter [Add MQTT topic publish object], and set the general settings and address. The maximum number of MQTT published topics is 255.


General properties


Alias: Set the project name of the MQTT theme. Maximum input length: 255 characters, cannot be empty.

Topic: The topic received by the MQTT server when sending message. Maximum input length: 255 characters, cannot be empty.

Sending mode: (AUTO/TRIGGER)

① AUTO value change mode: When any value changes, MQTT message is published.

a. Minimum time interval between messages: The minimum time interval can be set between messages to avoid over-publishing MQTT messages. When the interval of value change is less than the minimum time interval between messages, the message will be put in the cache. The MQTT message will not be published until the minimum interval between messages is met. Range: 0~3600000ms.

b. Periodic mode: Publish MQTT message by the fixed time. Time interval: Set the time interval for periodic publishing, ranging from 1 to 3600s.

② TRIGGER

When the specified bit is triggered, the MQTT message is published. When HDX0.0 changes from OFF to ON, an MQTT message is published, and HDX0.0 is automatically set to OFF after publishing.

Compression type: Message is compressed before it is transmitted. The compressed message needs to be decompressed before the MQTT client reads it. Zlib, Gzip, or Deflate algorithm can be chosen to compress or decompress the message.

QoS: MQTT provides three levels of reliability called service quality. The service quality of message transmission determines whether the message is guaranteed to be delivered.

0: Messages are sent only once, and delivery is not guaranteed.

1: Message must be delivered at least once.

2: Message is delivered just once.

Retain message: When checked, the MQTT server will keep the latest message.

Content format:

Raw data: Data composed of BYTE data.

JSON (General): Put all data in JSON format of member "d".

JSON (Advanced): JSON format of flexibly customizable nested structure.

Include timestamps: This function is only supported when the content format uses [JSON (General)], and whether to include the timestamp can be decided manually.

Use the top "d" symbol in the message format:

This function is only supported when the content format uses [JSON (General)]. When checked, the message format is as follows:

{

"d": {

"addressName1": ...,

"addressName2":...

},

"ts":...

}

When unchecked, the message format is as follows:

{

"addressName1": ...,

"addressName2":...,

"ts":...

}

As shown above, when unchecked, ts and address names are both key at the same level. Therefore, avoid taking the address name as ts.

Address setting

①Address settings when content formats use [Raw Data] and [JSON (General)].


Add: Establish the address source of the topic. The length of each address can be set separately.

Delete: Delete the address.

Settings: Modify the address and name.


Included in all message sent

Check the options: This topic will include this address every time it publishes a message.

Uncheck the options: When the sending mode is value, message is published only when the value of the address changes.

Remove JSON array brackets' ['and'] ':

Check the options: Remove the array symbol name when using non-array bits or characters.

✎Note: A topic can be configured up to 255 nodes. The name length of a node can be configured up to a maximum of 255 characters and cannot be empty.

② Address setting when the content format uses [JSON (Advanced)]. [JSON (Advanced)] supports nested structure, which can use components, arrays and other forms. Timestamps and data names can also be customized, which is a more flexible design method.


The above figure is an example. If setting like above figure, the subscription side will receive the MQTT message like following format.

{
"object": {
  "value": "teststring",
  "value (1)": 123,
  "value (2)": true,
  "value (3)": "",
  "value (4)": 0,
  "value (5)": true
},
"array": [
  10,
  20,
  30
],
"value (6)": " 2023-04-27T03: 53: 20.156271 "
}

New component: Add a new data component. Components can have multiple data formats; each data format has its own Name and Value. The data of the component is included in braces {}.

New value: Add a value, string, or timestamp. When it is a value or a string, data can be read for a fixed value or from a specified address.

Delete: Delete the selected field.

Settings: Modify the selected field. If the selected fields are components and arrays, only the names can be modified. But components and arrays include values that can modify parameters.

Template: Paste the JSON text, and the system will automatically arrange the schema to conform to this JSON format, saving the time of self-definition.

Preview: Preview JSON data in an easy-to-read format.

✎Note: A Topic can be up to 512 nodes (including payload), and a node name can be configured to be up to 255 characters length.

Security settings

The topic is published only when the register status matches the setting. As shown in the following figure, this topic will not be published until the address HDX0.0 is set to ON.


MQTT topic subscription

Select [Topic subscription] and click [Add] to enter general property settings and address settings. The maximum number of MQTT subscription topics is 255.


General properties


Alias: Set the project name of the MQTT theme. Maximum input length: 255 characters, cannot be empty.

Topic: Topics subscribed from the MQTT server. Maximum input length: 255 characters, cannot be empty.

Compression type: The transport compression type of a subscription topic must be the same as that of a publication topic.

QoS: MQTT provides three levels of reliability called service quality. The service quality of message transmission determines whether the message is guaranteed to be delivered.

0: Messages are sent only once, and delivery is not guaranteed.

1: Message must be delivered at least once.

2: Message is delivered just once.

Content format:

Raw data: There is no original data in a specific format.

JSON (General): JSON format of single-layer structure.

JSON (Advanced): JSON format of flexibly customizable nested structure.

Verify timestamp: The user can decide whether to verify the timestamp or not. When checked, it indicates that the received data timestamp must be strictly incremented before it can be updated. Otherwise, it will be judged as outdated data and not updated.

Use the top "d" symbol in the message format:

This function is only supported when the content format uses [JSON (General)]. When checked, the message format is as follows:

{

"d": {

"addressName1": ...,

"addressName2":...

},

"ts":...

}

When unchecked, the message format is as follows:

{

"addressName1": ..., "addressName2":...,

"ts":...

}

Please select the appropriate settings according to the data source.

Address setting

①Address settings when content formats use [Raw Data] and [JSON (General)].


Add: Establish the address where the data is placed after the topic is subscribed, and the length of each address can be set separately.

Delete: Delete the address.

Settings: Modify the address and name.


Remove JSON array brackets' ['and'] ':

When using non-array bits or characters, array symbol can manually be removed.

✎Note: A topic can be configured up to 255 nodes. The name length of a node can be configured up to a maximum of 255 characters and cannot be empty.

② Address setting when the content format uses [JSON (Advanced)]. [JSON (Advanced)] supports nested structure, which can use components, arrays and other forms. Timestamps and data names can also be customized, which is a more flexible design method.


New component: Add a new data component. There can be multiple data formats in a component, each with a name and a value. The data of the component is included in braces {}.

New Array: Add a new data array. Arrays can have multiple data formats, but only one name. The data of the component is included in brackets [].

New value: Add a value, string, or timestamp. When it is a value or a string, data can be read for a fixed value or from a specified address.

Delete: Delete the selected field.

Settings: Modify the selected field. If the selected fields are components and arrays, only the names can be modified. But components and arrays include values that can modify parameters.

Template: Paste the JSON text, and the system will automatically arrange the schema to conform to this JSON format, saving the time of self-definition.

Preview: Preview JSON data in an easy-to-read format.

✎Note: A Topic can be up to 512 nodes (including payload), and a node name can be configured to be up to 255 characters length.

Security settings

The topic is published only when the register status matches the setting. As shown in the following figure, this topic will not be published until the address HDX0.0 is set to ON.


MQTT Server Settings (Huawei)

General


Description: Enter a description or comment about the server. Maximum input length: 255 characters, cannot be empty.

Cloud service description: (Select Huawei)

① Common (Common Platform): General MQTT publish-subscribe topic mode.

② AWS IoT (Amazon): Using "AWS IoT" as the Broker, using Thing to transfer data and support Shadow function.

③ ALi (Alibaba Cloud): Using "Alibaba Cloud" as Broker.

④ Huawei (Huawei Cloud): Using "Huawei Cloud" as Broker.

Communication protocol: MQTTv3.1, v3.1.1 and v5 are supported.

Domain name: Set the domain name of the MQTT server that subscribe message. Maximum input length: 128 characters, cannot be empty, supports letters, numbers, "-", “.”. The symbol cannot be placed at the first character or last character of name.

Port number: Set the MQTT server port to subscribe message. Range: 0~65535, cannot be empty.

DeviceId: Device ID generated when registering the device in Huawei Cloud. Maximum input length: 128 characters

DeviceSecret: Customized password when registering devices on Huawei Cloud Maximum input length: 128 characters.

Timestamp: LOCAL: Using the HMI time as the timestamp. UTC Time: Using UTC+0.

Clean message cache when normal connected: If option is enabled, when the device is disconnected, the message to be published will be cached in the cache area, and then will be published when the device is online again.

Address


Status address: (Total length: 2 words)

  HDWn: Display [MQTT] connection status.

ValueDescription
0Disable MQTT server connection
1Disconnected or connecting
2Successfully connected the MQTT server

  HDWn+1: Error prompt

ValueDescription
0No error
-1General error code of wrong operation
-3Disconnected
-4Exceed client data concurrency
-5Invalid UTF-8 string
-6Null pointer parameter
-7Topic name is truncated
-8Wrong protocol structure body
-9Wrong QOS.  (0, 1, 2) is acceptable.
-10Attempt to use a non-SSL library for SSL connection
-11Wrong MQTT version
-14Wrong protocol type
-15Option is not suitable for the current request version
-16Call MQTT version that is not applicable to request.
-170 length topic connection

Buffer usage address: (Total length: 1 word)

Unsuccessful published message will be stored in memory as cache, with a maximum 100,000 messages or 2M. Value display as unit %, and it is carried unconditionally.

HDWn: Display buffer usage.

Control address: (Total length: 194 words)

HDWn: Control the execution or stop of [MQTT Server].

ValueDescription
0Ready
1Start
2Stop
3Update

  HDWn+1: Port number of the Huawei Cloud.

  HDWn+2: Domain name of the Huawei Cloud.

  HDWn+66: DeviceSecret of the Huawei Cloud.

  HDWn+130: DeviceSecret of the Huawei Cloud.

TLS/SSL Settings


Enable: Enable TLS/SSL encryption. User can manually select encrypted versions of TLS 1.0, TLS 1.1, or TLS 1.2.

Server authentication:

  Enable: Verify whether the server certificate has been certified by a Certificate Authority Certificate (CA). Server certificates are sent by the server when connection is established.

  Import: Select CA certificate to import.

  More: After the import is successful, clicking it will display the certificate details.

  Reset: Reset the import information.

  The server name must match the certificate information: Verify whether the server name or IP matches with the information in the certificate. Domain name and IP are recorded in the Subject Alternative Name from certificate.

Client authentication: The private key and client certificate are the data required for the server to authenticate the client end.

  Certificate:

    Import: Select certificate to import.

    More: After the import is successful, clicking it will display the certificate details.

    Reset: Reset the import information.

  Key:

    Import: Select the key to import.

    More: After the import is successful, clicking it will display key details.

    Reset: Reset the import information.

MQTT Topic

MQTT topic publish

Select [Topic publish], click [Add], enter [Add MQTT topic publish object], and set the general settings and address. The maximum number of MQTT published topics is 255.


General properties


Alias: Set the project name of the MQTT theme. Maximum input length: 255 characters, cannot be empty.

Topic: The topic received by the MQTT server when sending message. Maximum input length: 255 characters, cannot be empty.

Sending mode: (AUTO/TRIGGER)

① AUTO value change mode: When any value changes, MQTT message is published.

a. Minimum time interval between messages: The minimum time interval can be set between messages to avoid over-publishing MQTT messages. When the interval of value change is less than the minimum time interval between messages, the message will be put in the cache. The MQTT message will not be published until the minimum interval between messages is met. Range: 0~3600000ms.

b. Periodic mode: Publish MQTT message by the fixed time. Time interval: Set the time interval for periodic publishing, ranging from 1 to 3600s.

② TRIGGER

When the specified bit is triggered, the MQTT message is published. When HDX0.0 changes from OFF to ON, an MQTT message is published, and HDX0.0 is automatically set to OFF after publishing.

Compression type: Message is compressed before it is transmitted. The compressed message needs to be decompressed before the MQTT client reads it. Zlib, Gzip, or Deflate algorithm can be chosen to compress or decompress the message.

QoS: MQTT provides three levels of reliability called service quality. The service quality of message transmission determines whether the message is guaranteed to be delivered.

0: Messages are sent only once, and delivery is not guaranteed.

1: Message must be delivered at least once.

2: Message is delivered just once.

Retain message: When checked, the MQTT server will keep the latest message.

Content format:

Raw data: Data composed of BYTE data.

JSON (General): Put all data in JSON format of member "d".

JSON (Advanced): JSON format of flexibly customizable nested structure.

Include timestamps: This function is only supported when the content format uses [JSON (General)], and whether to include the timestamp can be decided manually.

Use the top "d" symbol in the message format:

This function is only supported when the content format uses [JSON (General)]. When checked, the message format is as follows:

{

"d": {

"addressName1": ...,

"addressName2":...

},

"ts":...

}

When unchecked, the message format is as follows:

{

"addressName1": ...,

"addressName2":...,

"ts":...

}

As shown above, when unchecked, ts and address names are both key at the same level. Therefore, avoid taking the address name as ts.

Address setting

①Address settings when content formats use [Raw Data] and [JSON (General)].


Add: Establish the address source of the topic. The length of each address can be set separately.

Delete: Delete the address.

Settings: Modify the address and name.


Included in all message sent

Check the options: This topic will include this address every time it publishes a message.

Uncheck the options: When the sending mode is value, message is published only when the value of the address changes.

Remove JSON array brackets' ['and'] ':

Check the options: Remove the array symbol name when using non-array bits or characters.

✎Note: A topic can be configured up to 255 nodes. The name length of a node can be configured up to a maximum of 255 characters and cannot be empty.

② Address setting when the content format uses [JSON (Advanced)]. [JSON (Advanced)] supports nested structure, which can use components, arrays and other forms. Timestamps and data names can also be customized, which is a more flexible design method.


The above figure is an example. If setting like above figure, the subscription side will receive the MQTT message like following format.

{
"object": {
  "value": "teststring",
  "value (1)": 123,
  "value (2)": true,
  "value (3)": "",
  "value (4)": 0,
  "value (5)": true
},
"array": [
  10,
  20,
  30
],
"value (6)": " 2023-04-27T03: 53: 20.156271 "
}

New component: Add a new data component. Components can have multiple data formats; each data format has its own Name and Value. The data of the component is included in braces {}.

New value: Add a value, string, or timestamp. When it is a value or a string, data can be read for a fixed value or from a specified address.

Delete: Delete the selected field.

Settings: Modify the selected field. If the selected fields are components and arrays, only the names can be modified. But components and arrays include values that can modify parameters.

Template: Paste the JSON text, and the system will automatically arrange the schema to conform to this JSON format, saving the time of self-definition.

Preview: Preview JSON data in an easy-to-read format.

✎Note: A Topic can be up to 512 nodes (including payload), and a node name can be configured to be up to 255 characters length.

Security settings

The topic is published only when the register status matches the setting. As shown in the following figure, this topic will not be published until the address HDX0.0 is set to ON.


MQTT topic subscription

Select [Topic subscription] and click [Add] to enter general property settings and address settings. The maximum number of MQTT subscription topics is 255.


General properties


Alias: Set the project name of the MQTT theme. Maximum input length: 255 characters, cannot be empty.

Topic: Topics subscribed from the MQTT server. Maximum input length: 255 characters, cannot be empty.

Compression type: The transport compression type of a subscription topic must be the same as that of a publication topic.

QoS: MQTT provides three levels of reliability called service quality. The service quality of message transmission determines whether the message is guaranteed to be delivered.

0: Messages are sent only once, and delivery is not guaranteed.

1: Message must be delivered at least once.

2: Message is delivered just once.

Content format:

Raw data: There is no original data in a specific format.

JSON (General): JSON format of single-layer structure.

JSON (Advanced): JSON format of flexibly customizable nested structure.

Verify timestamp: The user can decide whether to verify the timestamp or not. When checked, it indicates that the received data timestamp must be strictly incremented before it can be updated. Otherwise, it will be judged as outdated data and not updated.

Use the top "d" symbol in the message format:

This function is only supported when the content format uses [JSON (General)]. When checked, the message format is as follows:

{

"d": {

"addressName1": ...,

"addressName2":...

},

"ts":...

}

When unchecked, the message format is as follows:

{

"addressName1": ..., "addressName2":...,

"ts":...

}

Please select the appropriate settings according to the data source.

Address setting

①Address settings when content formats use [Raw Data] and [JSON (General)].


Add: Establish the address where the data is placed after the topic is subscribed. The length of each address can be set separately.

Delete: Delete the address.

Settings: Modify the address and name.


Remove JSON array brackets' ['and'] ':

When using non-array bits or characters, array symbol can manually be removed.

✎Note: A topic can be configured up to 255 nodes. The name length of a node can be configured up to a maximum of 255 characters and cannot be empty.

② Address setting when the content format uses [JSON (Advanced)]. [JSON (Advanced)] supports nested structure, which can use components, arrays and other forms. Timestamps and data names can also be customized, which is a more flexible design method.


New component: Add a new data component. There can be multiple data formats in a component, each with a name and a value. The data of the component is included in braces {}.

New Array: Add a new data array. Arrays can have multiple data formats, but only one name. The data of the component is included in brackets [].

New value: Add a value, string, or timestamp. When it is a value or a string, data can be read for a fixed value or from a specified address.

Delete: Delete the selected field.

Settings: Modify the selected field. If the selected fields are components and arrays, only the names can be modified. But components and arrays include values that can modify parameters.

Template: Paste the JSON text, and the system will automatically arrange the schema to conform to this JSON format, saving the time of self-definition.

Preview: Preview JSON data in an easy-to-read format.

✎Note: A Topic can be up to 512 nodes (including payload), and a node name can be configured to be up to 255 characters length.

Security settings

The topic is published only when the register status matches the setting. As shown in the following figure, this topic will not be published until the address HDX0.0 is set to ON.
