• Do not install or operate any AC Drive that is damaged or with missing parts. Failing to follow this rule can result in facility damage or severe injury.
• When installing or handling the AC Drive, please hold the bottom of the product rather than the case only, to prevent its falling and being damaged.
• Install the AC Drive on nonflammable material like metal, and keep away from flammable or explosive object, heat source, and similar environment. Otherwise, fire may be caused.
• When AC Drive is installed inside an electrical cabinet or other kind of enclosure, please install fans or other cooling devices, and keep ventilation well enough to ensure the enclosure temperature below 40℃, or the AC Drive may be damaged due to extreme high temperature.
• Before wiring, ensure the AC Drive rated input voltage and phases are compatible with the input power source, or fire or personal injury may be caused.
• Never connect the AC power supply to output terminals U, V and W. Otherwise, the AC Drive will be damaged and the warranty is invalid.
• Never carry out withstand voltage test to the AC Drive, for example by a megohmmeter. Otherwise, it may cause damage to the AC Drive.
• The connecting cable of the main circuit terminal should use an insulating sleeve.
• When the cable length between the AC Drive and the motor exceeds 50 meters, an output reactor is recommended to be used.
• Do not use a circuit breaker to control the start and stop of the AC Drive. Otherwise, the AC Drive may be damaged.
• Since the AC Drive makes the motor running speed from low to high in a short time, please confirm that the motor and equipment are in the allowed running range before running.
• Do not touch due to high temperature of the heat sink and braking resistor.
• The factory parameters of the AC Drive can meet the requirments of most equipment operation. Under normal circumstances, please do not modify the AC Drive parameters at will. Even if there is some special applications need to change the AC Drive parameters, only necessary parameters could be changed. Otherwise, AC Drive damage may be caused.
• The PCB board has a CMOS integrated circuit. Do not touch it with your hands, otherwise, static electricity will damage the PCB board.

• Wiring must be completed by qualified professional electricians, otherwise, there may be electric shock or damage to the AC Drive.
• The power must be disconnected during wiring; otherwise, it may cause electric shock or fire.
• The grounding terminal should be effectively grounded; otherwise, the outer casing of the AC Drive may be energized.
• Do not touch the main circuit terminals, otherwise, it may cause electric shock.
• Terminals for brake resistor are (+) and PB. Do not wire to other terminals, otherwise, fire may be caused.
• It is only allowed to power on the AC Drive after the wiring is finished and its cover is reinstalled. It is strictly prohibited to remove the cover of AC Drive while power is on. Otherwise, it may cause electric shock.
• Before programming the AC Drive with fault auto reset or restart option after power off, the mechanical device need to be implemented with safety protection measures first. Otherwise, personal injury will be caused.
• “ STOP/RESET” key may become invalid as a result of some function setting. It is recommended to install an independent emergency circuit breaker for the   AC Drive control system, otherwise, or personal injury may be caused.
• When the power is on, there may be electricity in the AC Drive’s terminals even if it is in stop mode. Do not touch U, V, W terminals and motor connection terminals, or electrical shock may be caused.
• Never touch the AC Drive connection terminals when power is on. Otherwise, it may cause an electrical shock.
• Only qualified electricians can be authorized to do the jobs of maintenance, checking, or parts replacement.
• After the power supply is OFF, make sure the charge LED is OFF and the  residual voltage does not exist, or wait for at least 10 minutes before carrying out  maintenance or inspection. Otherwise, damage or injury may be caused.

• Modification to the AC Drive without permission is strictly prohibited,  otherwise, severe injury may be caused. Arbitrarily modification of AC Drive will result in service warranty invalid.

• 150% Rated Current: 60 secs；
• 180% Rated Current: 1 secs

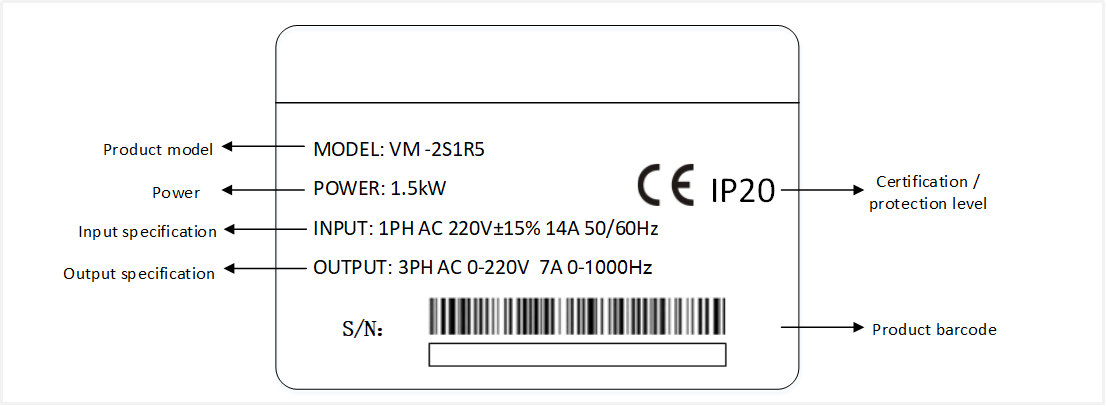

• 2: 220VAC;
• 4: 380VAC

• S: single;
• T: three-phase

Single Phase AC 220V±15%

3 Phase AC 380V±15%

DI1/DI2

DI3/DI4

RA/RC NO,RA/RB NC

  AC 250V,10A; DC30V,10A

• S+: Positive terminal of differential signal
• S-: Negative terminal of differential signal

• RUN: On/Running,Off/Stopped
• REMOTE: On/Terminal Control,Off/Keypad Control,Blink/Communication Control
• FWD/REV: On/FWD,Off/REV,Blink/ FWD & REV Switching
• ALARM: Blink/Error,Off/Normal

During parameter setting, select the modification bit of the parameter

During stop/run monitoring, the display parameters can be selected cyclically

In keypad operation mode, control run and stop

It can be used for error reset when the drive alarms

• 0: Default
• 1~8: Reserved
• 9: Tile press machine application macro

Start/Stop channel

• 0: Keypad
• 1: DI Terminal
• 2: RS485 Communication

• 0: F0.08
• 1: Keypad Potentiometer
• 2: AI1
• 3: Reserved
• 4: DI Terminal UP/DW
• 5: Reserved
• 6: Multi-Stage Speed
• 7: Inner Simple PLC
• 8: PID Control
• 9: RS485 Communication (Including External Keypad)

Auxiliary Frequency Source Y option

Range of Auxiliary Frequency Source Y

• 0: Relative to F0.10
• 1: Relative to Main Frequency Source X (F0.03)

Percentage Range of Auxiliary Frequency Source Y

LED Ones Place: Frequency Source Selection

• 0: Main Frequency Source
• 1: Main and Auxiliary Operation Results
• 2: Switchover between Main and Auxiliary
• 3: Switchover between X and Main (X) & Auxiliary (Y) Operation
• 4: Switchover between Y and Main (X) & Auxiliary (Y) Operation

LED Tens Place: Combination Operation

• 0: Main ＋ Auxiliary
• 1: Main－Auxiliary
• 2: MAX {Main, Auxiliary}
• 3: MIN {Main, Auxiliary}
• 4: Main * Auxiliary

LED hundreds Place: Frequency Control direction selection
0: Frequency control direction is invalid
1: Frequency control direction is valid

• 0: FWD
• 1: REV
• 2: REV Forbidden

• 0: F0.12
• 1: AI1
• 2: Reserved
• 3: Reserved
• 4: Reserved
• 5: RS485 Communication
• 6: Reserved
• 7: Keypad Potentiometer

The Function of Frequency

Lower Limit

• 0: Stop
• 1: Run at Lower Limit Frequency
• 2: Run at 0 Speed

Carrier PWM wave characteristics selection

LED Ones Place:

0: Independent of temperature

1: Related to temperature, >75, 1.0 Khz

LED Tens Place:

0: Independent of the output frequency

1: Related to the output frequency

LED Hundreds Place: random PWM depth

0: Invalid

1-8: , adjust depth

LED Thousands Place: over modulation option

0: Invalid

1: Valid

• 0: No Option
• 1: Recover Default Settings (Except F2 Team)
• 2: Clear All Error Records
• 3: Recover Default Settings (Including F2 Team)

• 0: Invalid (Unlock)
• 1: Valid(Lock)

• 0: 1Sec
• 1: 0.1Sec
• 2: 0.01Sec

• 0: F0.10
• 1: F0.08
• 2: 100Hz

Ones Place : Run/Stop Option

• 0: Fan runs when VFD is powered on
• 1: Stop according to VFD temperature, run when VFD is running
• 2: Run according to VFD temperature, stop when VFD is stopped

Ones Place: Start Option

• 0: Run according to starting 1: DC braking first and then star from the starting frequency
• 2: Speed tracking and direction judgment before starting from the starting frequency

Tens Place: Speed Tracking Direction

• 0: Same as stopping direction
• 1: Same as starting direction
• 2: Automatic tracking

• 0: Straight Line
• 1: S Curve

• 0: Deceleration Stopping
• 1: Free Stopping (Or Coast to stop,means VFD cuts off its output power immediately when being stopped, leaving the motor and its load to stop totally due to their inertia)

0.0 to 6000.0sec

When it is set to 6000.0s, it will be kept valid all the time

• 0: 3 Phase Asynchronous Motor (AM)
• 1: Permanent Magnet Synchronous Motor (PMSM)
• 2: Single Phase Asynchronous Motor (Can only be used with V/F mode)

• 0: No Option
• 1: Full-Tuning (Recommended when motor can be fully removed off its load)
• 2: Quiet-Tuning (Recommended when motor can’t be fully removed off its load)

• 0: G Model (for constant torque load)
• 1: P Model (for quadratic torque load)

• 0: Linear Curve ；
• 1~9: 1.1~1.9 power VF curve respectively；
• 10: Squared VF Curve；
• 11: Customized VF curve

• 0: Invalid
• 1: Valid

• 0: No function
• 1: Forward running (FWD)
• 2: Reverse running (REV)
• 3: Three-wire operation control
• 4: Forward point movement (FJOG)
• 5: Reverse point movement (RJOG)
• 6: Terminal UP
• 7: Terminal DOWN
• 8: Free stopping
• 9: Reset
• 10: Run pause
• 11: External faults often open input
• 12: Multi-stage speed instruction terminal 1
• 13: Multi-stage speed instruction terminal 2
• 14: Multi-speed instruction terminal 3
• 15: Multi-speed instruction terminal 4
• 16: Terminal 1 for acceleration/deceleration time
• selection
• 17: Terminal 2 for acceleration/deceleration time
• selection
• 18: Frequency source switchover (terminal and
• keypad)
• 19: UP/DOWN setting clear
• 20: Command source switchover terminal 1
• 21: Acceleration/deceleration prohibited
• 22: PID pause
• 23: Inner PLC status reset
• 32: Immediate DC braking
• 35: Reverse PID action direction
• 36: External stop terminal 1
• 37: Command source switchover terminal 1
• 43: PID parameter switchover terminal
• 44: User-defined fault 1
• 45: User-defined fault 2
• 47: Emergent Stop
• 49: Deceleration dc braking
• 50: Clear the current running time

• 0: 2-wire mode 1
• 1: 2-wire mode 2
• 2: 3-wire mode 1
• 3: 3-wire mode 2

• 0: Closed valid
• 1: Disconnect valid
• LED Ones Place: DI1
• LED Tens Place: DI2
• LED Hundreds Place: DI3
• LED Thousands Place: DI4

Ones Place: AI1

Tens Place: Reserved

• 0: Voltage
• 1: Current

Ones Place: AI1

Tens Place: Reserved

• 0: Linear
• 1: Curve

LED Ones Place: Recover Mode after Free Stop

• 0: Restore the original command after signal off
• 1: Not restore the original command after signal off

LED Tens Place: Recover Mode after Emergent Stop

• 0: Restore the original command after signal off
• 1: Not restore the original command after signal off

LED Hundreds Place: Working Mode after Error Reset

• 0: Can start to run directly
• 1: Must stop first and then run

Thousands Place: Reserved

• 0: No option
• 1: VFD running
• 2: Alarm (Error)
• 3: Frequency level detection FDT1 output
• 4: Set frequency reached
• 5: VFD running at 0Hz
• 11: Inner PLC cycle completed
• 15: VFD ready for running
• 17: Frequency upper limit reached
• 18: Frequency lower limit reached
• 19: VFD input voltage too low
• 25: Frequency level detection FDT2 output
• 40: Running time reached
• 41: User-defined output 1
• 42: User-defined output 2
• 45: VFD running REV

• 0: Set Frequency
• 1: Running Frequency
• 2: Output Current
• 3: Input Voltage
• 4: Output Voltage
• 5: RPM
• 6: Reserved
• 7: Reserved
• 8: PID Set Value
• 9: PID Feedback Value
• 10: Output Power
• 11: Bus Voltage
• 12: Reserved
• 13: AI Input Value
• 14: Reserved
• 15: Reserved
• 16: IGBT Temperature 1
• 17: IGBT Temperature 2

Relay output effective level

0: Positive logic
1: Negative logic
Ones Place: Y
Tens Place :RELAY1
Hundreds Place: RELAY2
Thousands Place: vY1

• 0: Running frequency
• 1: Set frequency
• 2: Bus Voltage
• 3: Output Voltage
• 4: Output Current
• 5: Output Power
• 6: Output Torque
• 7-8: Reserved
• 9: AI1 Input
• 10: Reserved

Ones Place: Comparison Option

• 0: EX == X1 (F6.31)
• 1: EX ≥ X1
• 2: EX ≤ X1
• 3: X1 ≤ EX ≤ X2
• 4: EX & X1=X2

Tens Place: Output Option

• 0: False Output
• 1: Truth Output

• 0: No Option
• 1: Download Parameters from Keypad to VFD
• 2: Upload Parameters from VFD to Keypad

LED Ones Place: Priority at Terminal Control Mode (F0.01=1)

• 0: Invalid
• 1: Valid

LED Tens Place: Priority at Communication Control Mode (F0.01=2)

• 0: Invalid
• 1: Valid

LED Hundreds Place: Reserved

LED Thousands Place: Reserved

LED Ones Place: 1st Display Value

• 0: Running frequency
• 1: Set frequency
• 2: Bus Voltage
• 3: Output Voltage
• 4: Output Current
• 5: Output Power
• 6: Output Torque
• 7: DI Status
• 8: DO Status
• 9: AI1 Input
• A: Reserved
• B: Reserved
• C: Reserved
• D: Reserved
• E: Motor RPM
• F: PID Set Value

LED Tens Place: 2nd Display Value

LED Hundreds Place: 3rd Display Value

LED Thousands Place: 4th Display Value

LED Ones Place: 1st Display Value

• 0: PID Feedback Value
• 1: PLC Stage
• 2: Reserved
• 3: Feedback Speed
• 4: Reserved
• 5: Reserved
• 6: Reserved
• 7: Reserved
• 8: Reserved
• 9: Currently Power-on Period
• A: Currently Running Period
• B: Reserved
• C: Reserved
• D: Reserved
• E: Main Frequency Source X
• F: Auxiliary Frequency Source Y

LED Tens Place: 2nd Display Value

LED Hundreds Place: 3rd Display Value

LED Thousands Place: 4th Display Value

• 0: Keep Running
• 1: Alarm

• 0: Invalid
• 1: Valid

• 0: Due to Time
• 1: Due to Deviation

• 0: PID Set Value Source
• 1: Keyboard potentiometer
• Reserved
• 2: AI1
• 3: Reserved
• 4: Reserved
• 5: RS485 Communication
• 6: Multi speed

• 0: PID Set Value Source feed
• 1: Keyboard potentiomete feedback
• 2: AI1
• 3: Reserved
• 4: Reserved
• 5: Reserved
• 6: RS485 Communication

LED Ones Place: PID Control Feature

• 0: Positive
• 1: Negative

LED Tens Place: PID Control Option

• 0: REV Forbidden
• 1: REV Permit

LED Hundreds Place: Alignment selection

0: Non-center alignment
1: center aligned

Thousands Place: Reserved

• 0: Switching Forbidden
• 1: Switching with DI Input Signal
• 2: Automatic switching based on deviation

Ones Place: Integral separation

• 0: Invalid
• 1: Valid

Tens Place: When the output reaches the limit value, whether to stop the integration

• 0: Keep on integration
• 1: Stop integration

• 0: Keep on PID running without alarming
• 1: Stop and alarm
• 2: Keep on PID running with alarming
• 3: Keep on running at present running frequency with alarming

• 0: Normal PID
• 1: Sleepable PID

• 0: F0.14
• 1: 0Hz

• 0: Invalid
• 1: Valid

Motor Overload Warning Level

• 0: Invalid
• 1: Valid

• 0: Invalid
• 1: Valid

• 0: Invalid
• 1: Valid

Ones Place: PWM mode selection

• 0: PZV
• 1: 7 segments

Tens Place: Enable Voltage Prediction Compensation

Hundreds Place:

0: SSSU
1: DSDU

Thousands Place: Random Carrier mode

0：Random Carrier

1：Random 0 Vector

Ones Place: Hardware Overcurrent Protection

• 0: Invalid,
• 1: Valid

Tens Place: Hardware Overvoltage Protection

• 0: Invalid,
• 1: Valid

Hundreds Place: SC Filtering Time

Thousands Place: Reserved

• 0: Percentage (%)
• 1: kW

• 0: Invalid,
• 1: Valid

• 0: 1200 bps
• 1: 2400 bps
• 2: 4800 bps
• 3: 9600 bps
• 4: 19200 bps
• 5: 38400 bps

• 0: (N,8,1) No parity, data bits: 8; stop bits: 1
• 1: (E,8,1) Even parity, data bits: 8; stop bits: 1
• 2: (O,8,1) Odd parity, data bits: 8; stop bits: 1
• 3: (N,8,2) No parity, data bits: 8; stop bits: 2

• 0: Stop after a single cycle
• 1: Continuous loop
• 2: Hold the final value after a single cycle

• 0: Invalid,
• 1: Valid

LED Ones Place: Direction of the Stage

• 0: FWD,
• 1: REV

LED Tens Place: Acceleration & Deceleration Time

• 0: Acceleration & Deceleration Time 1
• 1: Acceleration & Deceleration Time 2
• 2: Acceleration & Deceleration Time 3
• 3: Acceleration & Deceleration Time 4

LED Hundreds Place: Reserved

LED Thousands Place: Reserved

LED Tens Place : Time Unit

• 0: Sec
• 1: Min
• 2: H

LED Thousands Place: Starting Option

• 0: Start from stage 1
• 1: Start from the stage when being stopped
• 2: Start with the rest period at the stage being stopped

• 0: FD.00
• 1: AI1
• 2: Reserved
• 3: Keypad Potentiometer
• 4: Reserved
• 5: PID
• 6: Reserved

• 0: Invalid
• 1: Valid

• 0: Unlocked
• 1: Parameters Locked
• 2: Parameters & Keypad Buttons Locked (Except RUN/STOP/JOG)
• 3: Parameters & All Keypad Buttons Locked

 No fault

Overcurrent during acceleration (Err02)

Overcurrent during deceleration (Err03)

Overcurrent at constant speed (Err04)

Overvoltage during acceleration (Err05)

Overvoltage during deceleration (Err06)

Overvoltage at constant speed (Err07)

Undervoltage (Err09)

AC Drive overload (Err10)

Motor overload (Err11)
Output missing phase (Err13)

Module overheating (Err14)

External equipment fault (Err15)
Current detection fault (Err18)

Data overflow (Err21)
On-power EEPROM check fault (Err22)

Running time arrival (Err26)
PID feedback loss during running

(Err31)

LED Ones Place: Running Direction

• 0: FWD
• 1: REV

LED Tens Place: Running status

• 0: Shutdown
• 1: Stabilized speed
• 2: Acceleration
• 3: Deceleration

LED Hundreds Place: Reserved

Thousands Place: Reserved

Time of latest failure (timing from this

on-power time)

Overcurrent during

deceleration

Overvoltage during

acceleration

Overvoltage during

deceleration
